2020 Kawasaki JET SKI® SX-R™ Pads Diagram

← All diagrams

Find the part on the Pads diagram for your 2020 Kawasaki JET SKI® SX-R™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

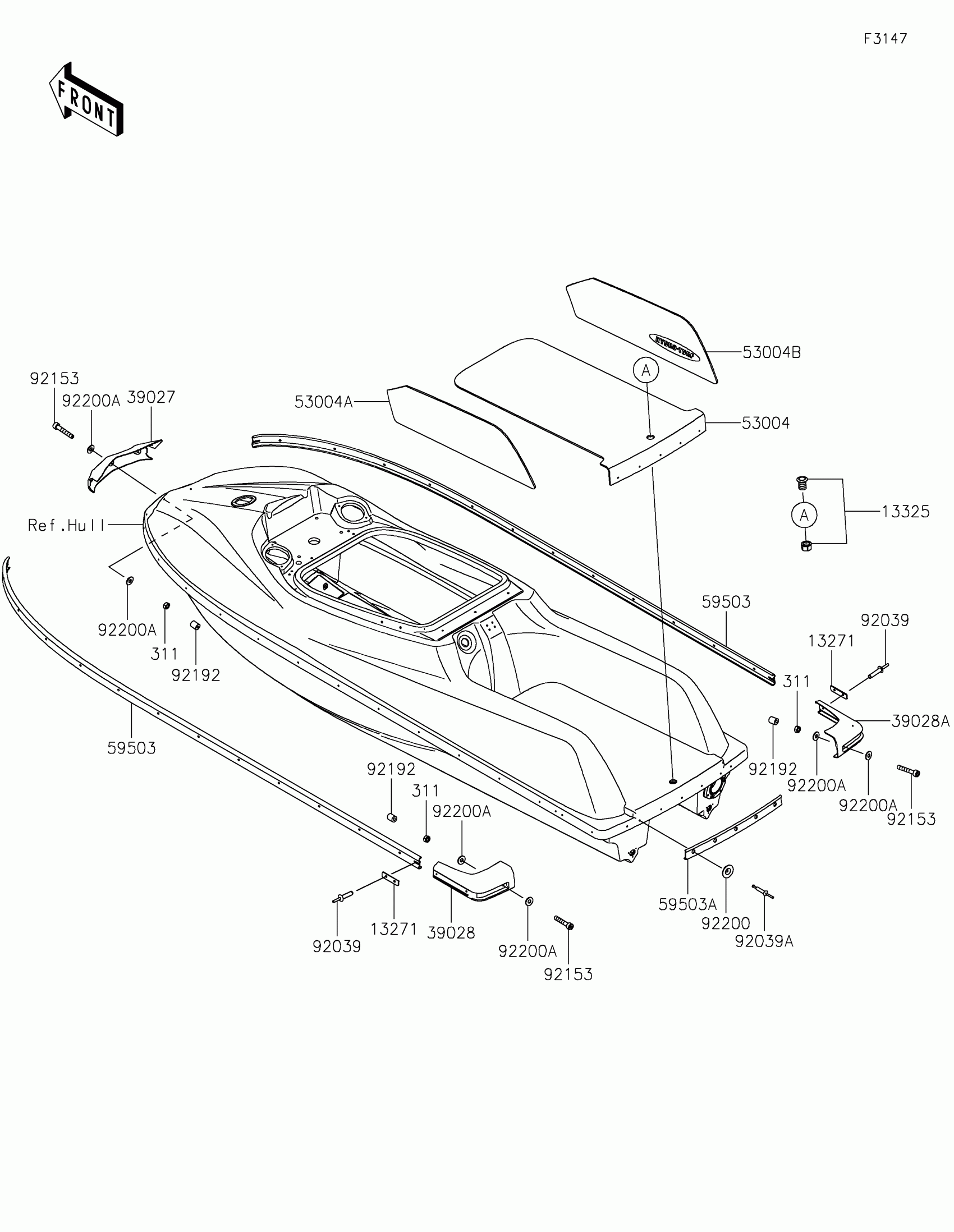

2020 Kawasaki JET SKI® SX-R™ Pads Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE

13271-3884

1

$4.59

In stock

13325

BUSHING-ASSY,BLACK

13325-3705

1

$7.32

In stock

39027

BUMPER-FRONT,F.BLACK

39027-0001-6Z

1

$53.77

In stock

39028

BUMPER-REAR,LH,F.BLACK

39028-0001-6Z

1

$27.08

In stock

39028A

BUMPER-REAR,RH,F.BLACK

39028-0002-6Z

1

$30.56

In stock

53004

MAT,CNT

53004-0615

1

$148.52

In stock

53004A

MAT,LH

53004-0617

1

$60.93

In stock

53004B

MAT,RH

53004-0618

1

$60.93

In stock

59503

FENDER-BOAT,F.BLACK

59503-0001-6Z

1
Out of stock

59503A

FENDER-BOAT,F.BLACK

59503-0002-6Z

1
Out of stock

92039

RIVET

92039-3778

1
Out of stock

92039A

RIVET

92039-3779

1
Out of stock

92153

BOLT,SOCKET,5X30

92153-3742

1
Out of stock

92192

TUBE,3.5X8.5X10

92192-1829

1
Out of stock

92200

WASHER

92200-3790

1
Out of stock

92200A

WASHER,5X12X1

92200-3796

1
Out of stock

311

NUT-HEX,5MM

311R0500

1
Out of stock
