2020 Kawasaki JET SKI® SX-R™ Bilge System Diagram

← All diagrams

Find the part on the Bilge System diagram for your 2020 Kawasaki JET SKI® SX-R™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

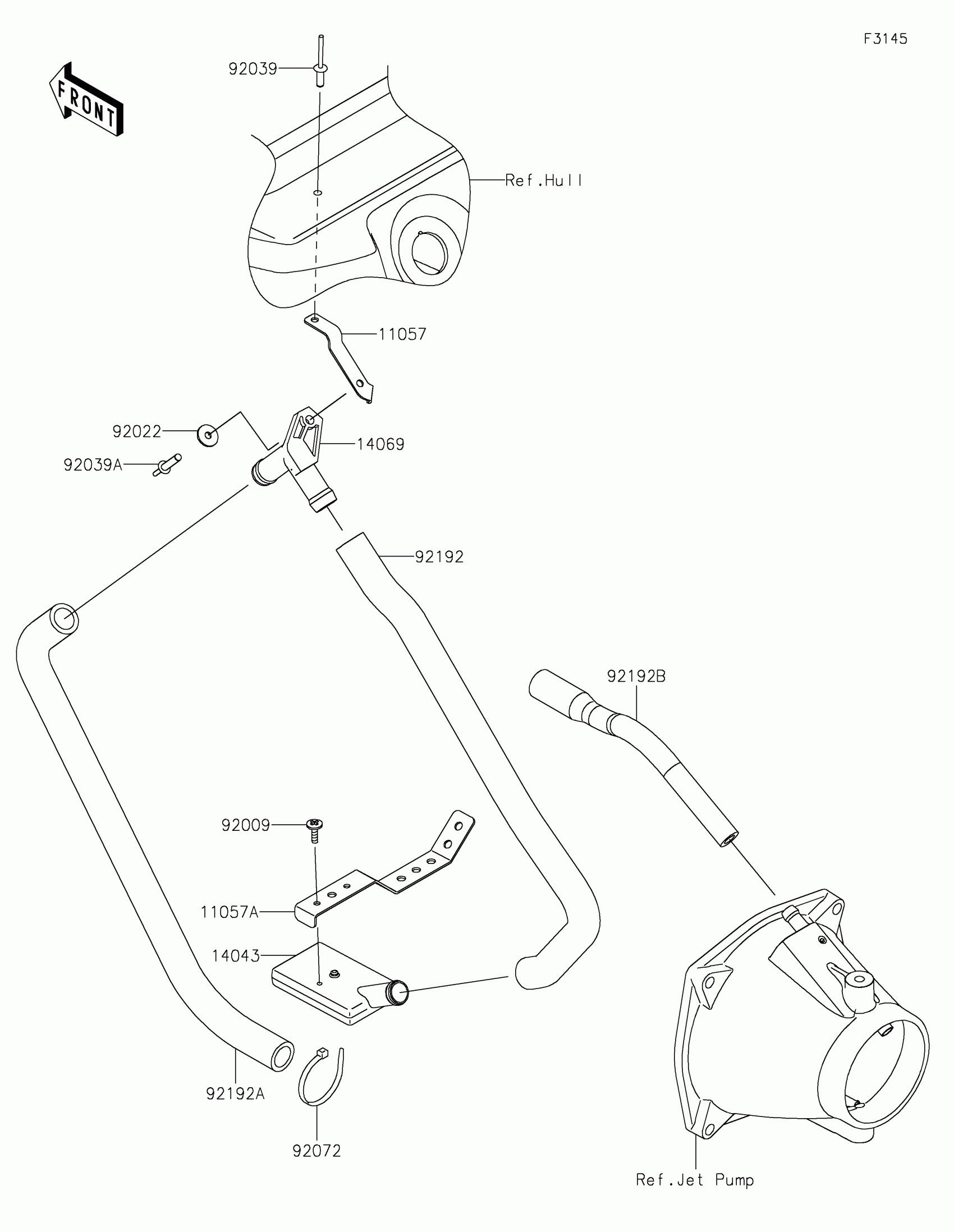

2020 Kawasaki JET SKI® SX-R™ Bilge System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BREATHER

11057-0454

1
Out of stock

11057A

BRACKET,FILTER

11057-0657

1
Out of stock

14043

FILTER

14043-3711

1

$5.53

In stock

14069

BREATHER

14069-3708

1

$7.53

In stock

92009

SCREW,TAPPING,4X14

92009-3762

1
Out of stock

92022

WASHER,5X16X1.5

92022-3041

1
Out of stock

92039

RIVET

92039-3755

1
Out of stock

92039A

RIVET

92039-3775

1
Out of stock

92072

BAND,L=188.85

92072-0105

1
Out of stock

92192

TUBE,16X23X450

92192-1712

1
Out of stock

92192A

TUBE,16X23X378

92192-1713

1
Out of stock

92192B

TUBE,HULL-NOZZLE

92192-3843

1
Out of stock
