2020 Kawasaki JET SKI® SX-R™ Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2020 Kawasaki JET SKI® SX-R™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

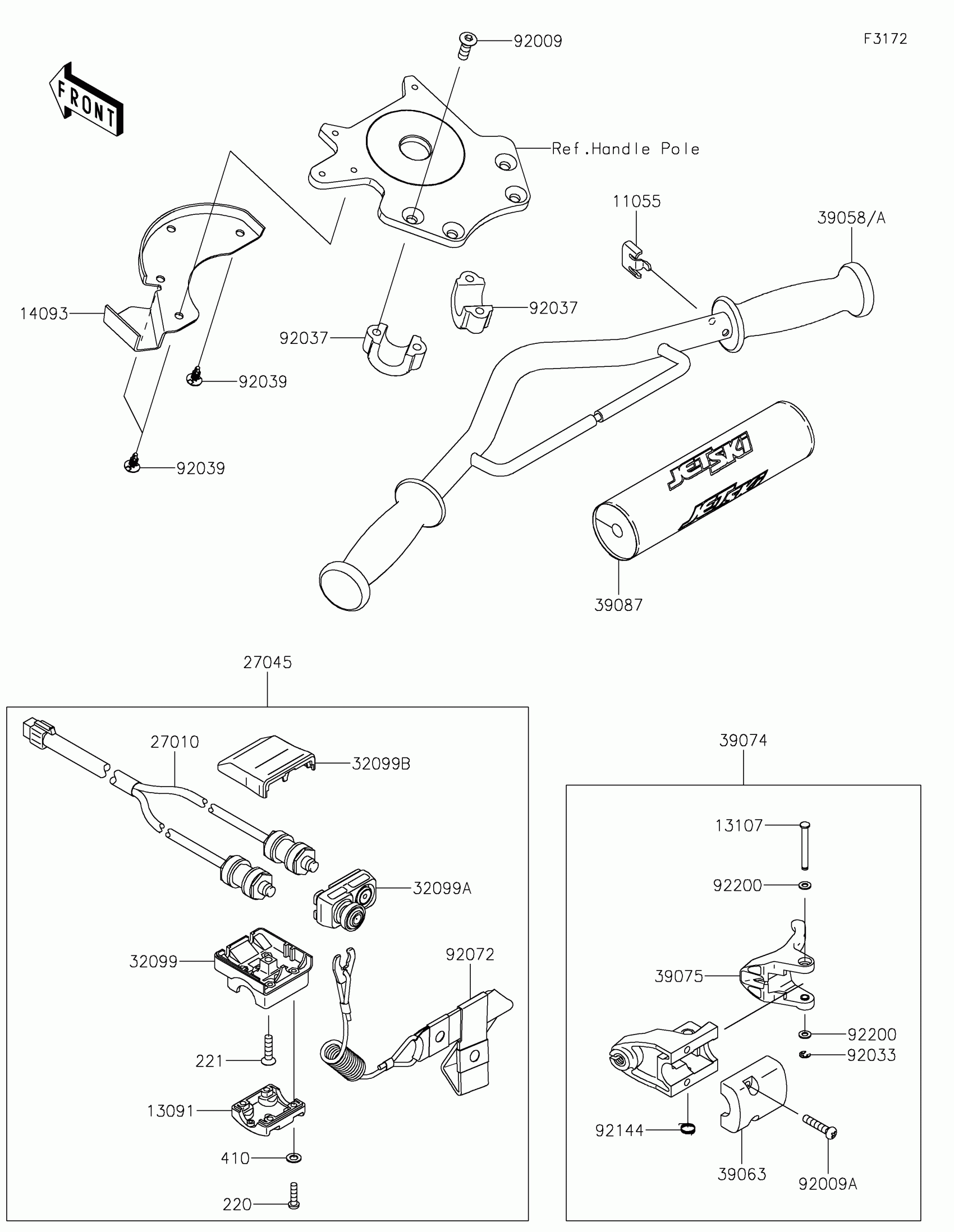

2020 Kawasaki JET SKI® SX-R™ Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

1

$9.71

In stock

13091

HOLDER,SWITCH

13091-3726

1

$25.81

In stock

13107

SHAFT

13107-3740

1
Out of stock

14093

COVER

14093-0599

1
Out of stock

27010

SWITCH,STOP&START

27010-3780

1
Out of stock

27045

SWITCH-ASSY,STOP&START

27045-3760

1
Out of stock

32099

CASE,LWR,SWITCH

32099-3725

1
Out of stock

32099A

CASE,FR,SWITCH

32099-3818

1
Out of stock

32099B

CASE,UPP,SWITCH

32099-3860

1
Out of stock

39058A

HANDLE-COMP,F.BLACK

39058-0035-6Z

1

$279.25

In stock

39063

HOUSING-CONTROL

39063-3727

1

$29.36

In stock

39074

LEVER-ASSY-THROTTLE

39074-3726

1

$114.29

In stock

39075

LEVER-THROTTLE

39075-3714

1

$42.30

In stock

39087

PAD-HANDLE

39087-0012

1

$29.19

In stock

92009

SCREW,8X22

92009-3701

1
Out of stock

92009A

SCREW,6X30

92009-3837

1
Out of stock

92033

RING-SNAP

92033-3723

1
Out of stock

92037

CLAMP,HANDLEBAR

92037-503

1
Out of stock

92039

RIVET

92039-3787

1
Out of stock

92072

BAND,TETHER SWITCH

92072-3809

1
Out of stock

92144

SPRING

92144-3749

1
Out of stock

92200

WASHER

92200-3738

1
Out of stock

220

SCREW-PAN-CROS,5X20

220R0520

1
Out of stock

221

SCREW-CSK-CROS,6X25

221R0625

1
Out of stock

410

W-PLAIN-S,5MM

410S0500

1
Out of stock
