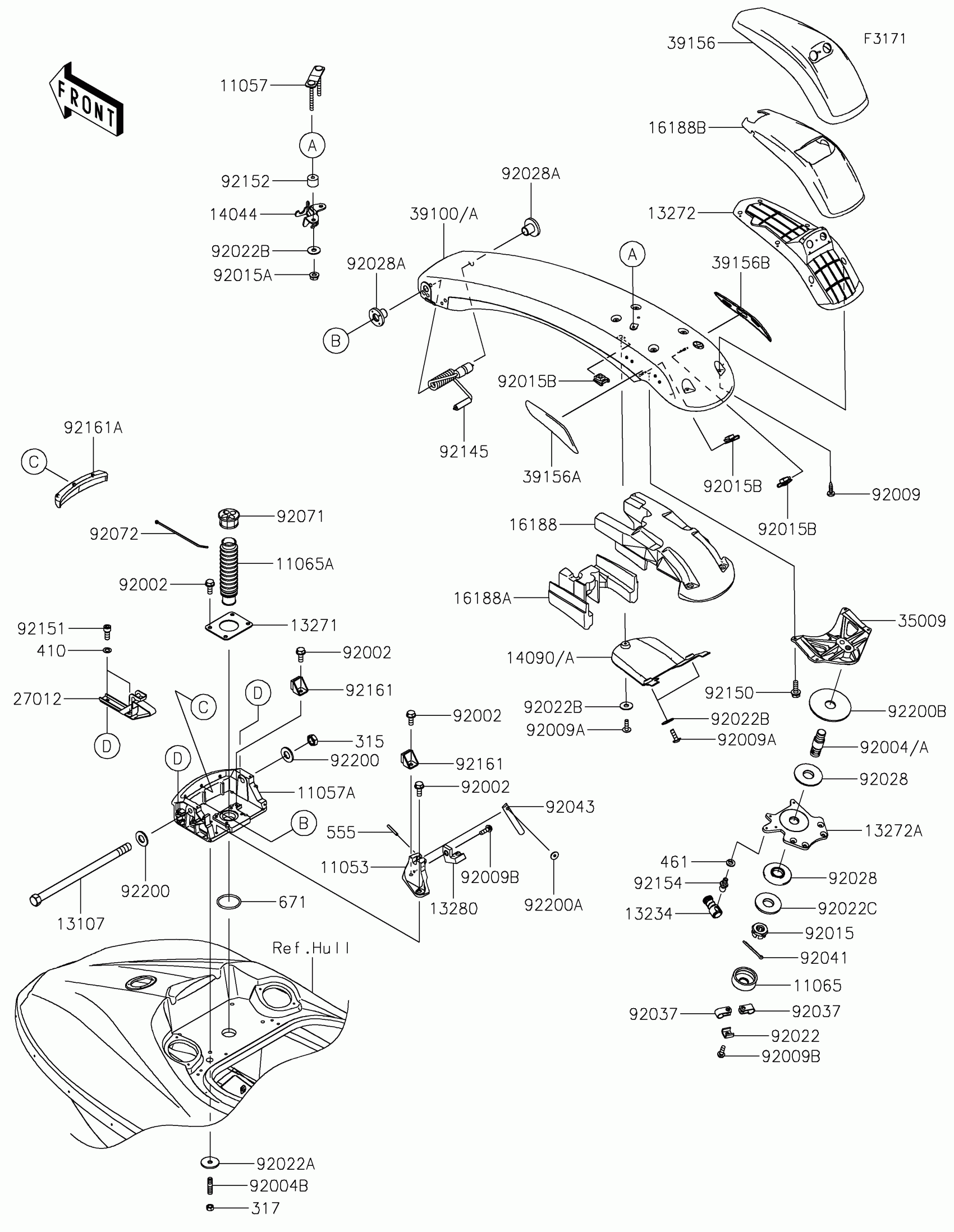

Kawasaki JET SKI® SX-R™ Handle Pole Diagram

#

Description
Price

11053

BRACKET

11053-3749

$65.05

11057

BRACKET

11057-0804

$9.10

11057A

BRACKET

11057-1049

$205.61

11065

CAP

11065-0982

$2.42

11065A

CAP

11065-3726

$29.48

13107

SHAFT

13107-3781

$80.21

13234

SHAFT-COMP

13234-3713

$82.19

13271

PLATE

13271-3882

$9.99

13272

PLATE,INDICATOR

13272-2223

$46.93

13272A

PLATE

13272-2268

$207.18

13280

HOLDER

13280-0885

$8.36

14044

HOLDER-CABLE

14044-0568

$41.23

14090

COVER,HANDLE POLE,J.WHITE

14090-3708-8C

$11.76

14090A

COVER,HANDLE POLE,EBONY

14090-3708-H8

$11.56

16188

FLOAT,HANDLE POLE,UPP

16188-0027

Unavailable

16188A

FLOAT,HANDLE POLE,LWR

16188-0052

$18.32

16188B

FLOAT

16188-0053

$19.17

27012

HOOK

27012-3859

$10.53

35009

BRACE

35009-3712

$56.28

39100

POLE-COMP-HANDLE,J.WHITE

39100-0001-8C

$744.15

39100A

POLE-COMP-HANDLE,EBONY

39100-0001-H8

$745.24

39156

PAD,HANDLE,F.BLACK

39156-2142-6Z

$189.07

39156A

PAD,HANDLE POLE,LH

39156-2172

$86.38

39156B

PAD,HANDLE POLE,RH

39156-2173

$86.48

92002

BOLT,6X16

92002-3728

$3.24

92004

STUD

92004-0776

$69.08

92004B

STUD,8X25

92004-3756

$5.42

92009

SCREW,TAPPING,5X20

92009-3716

$2.76

92009A

SCREW,5X16

92009-3797

$1.89

92009B

SCREW,5X16

92009-3868

$1.36

92015

NUT,CASTLE,18MM

92015-3006

$38.59

92015A

NUT,6MM

92015-3767

$3.57

92015B

NUT,CLIP,5MM

92015-3830

$6.04

92022

WASHER,CLAMP

92022-3014

$4.24

92022A

WASHER,8.5X34X3

92022-3746

$8.76

92022B

WASHER

92022-567

$1.89

92022C

WASHER

92022-571

$36.85

92028

BUSHING

92028-3743

$8.04

92028A

BUSHING,STEERING

92028-3752

$8.45

92037

CLAMP,LEAD WIRE

92037-3007

$7.22

92041

COTTER

92041-0011

$5.51

92043

PIN,STOPPER

92043-3754

$12.85

92071

GROMMET

92071-0775

$3.14

92072

BAND,L=188.85

92072-0105

$1.30

92145

SPRING

92145-3720

$101.50

92150

BOLT,6X20

92150-3758

$4.51

92151

BOLT,SOCKET,6X16

92151-3770

$1.97

92152

COLLAR,6.5X20X15

92152-2338

$5.56

92154

BOLT,BALL,6MM

92154-3710

$22.58

92161

DAMPER

92161-1919

$7.76

92161A

DAMPER

92161-3743

$23.03

92200

WASHER-PLAIN,15X30X2.6

92200-1847

$4.49

92200A

WASHER,3.5X12X1

92200-3723

$3.25

92200B

WASHER,20.5X80X3

92200-3725

$14.64

315

NUT-HEX-FINE,14MM

315R1400

$7.76

317

NUT

317R0800

$1.42

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

461

WASHER-SPRING,6MM

461S0600

$0.84

555

PIN-SPRING,3X25

555B0325

$3.05

671

O RING,40MM

671B2540

$4.67
