2020 Kawasaki Jet Ski® SX-R™ Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2020 Kawasaki Jet Ski® SX-R™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

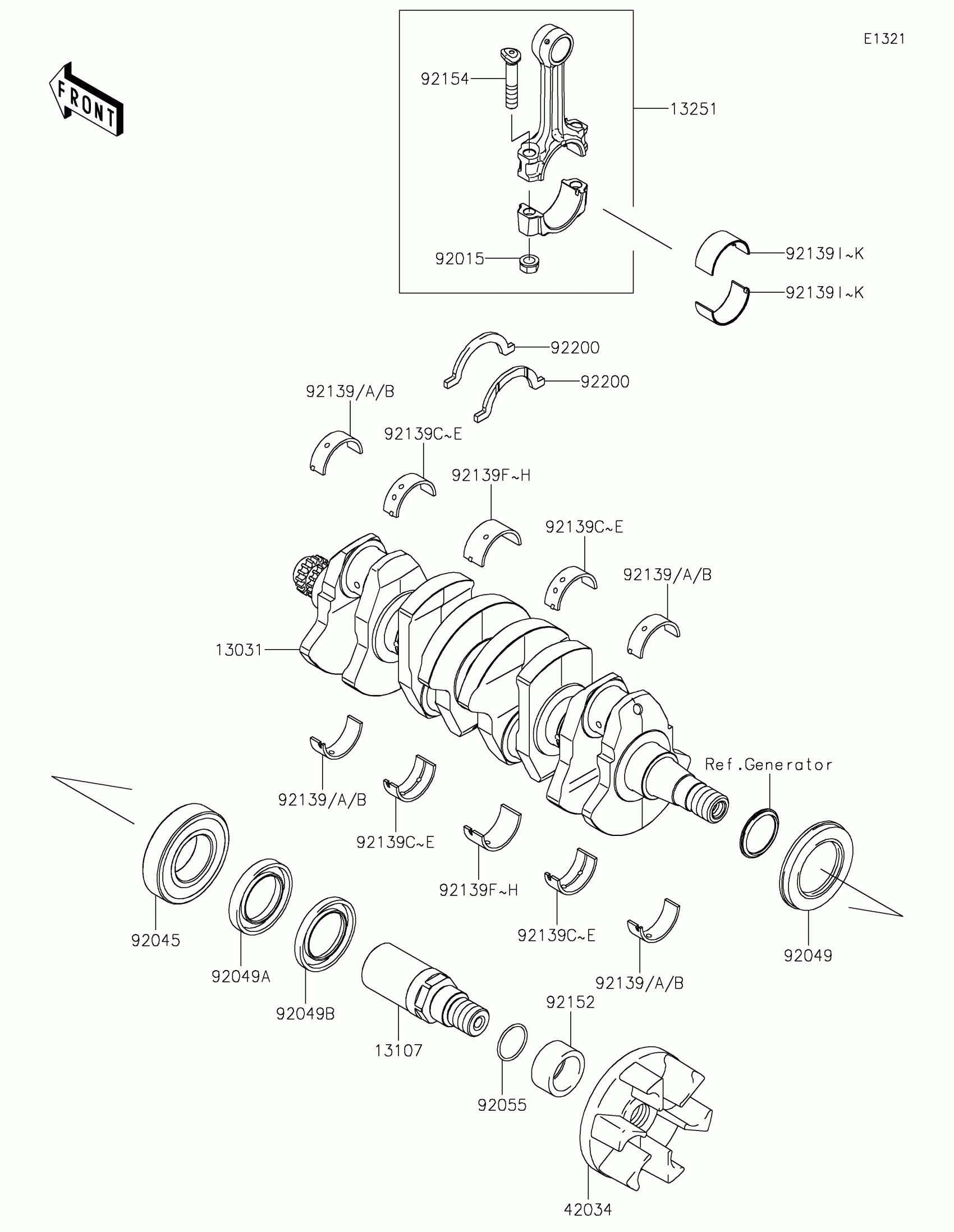

2020 Kawasaki Jet Ski® SX-R™ Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-3742

1
Out of stock

13107

SHAFT

13107-3785

1
Out of stock

13251

ROD-ASSY-CONNECTING,J

13251-3703-JJ

1
Out of stock

42034

COUPLING

42034-3711

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1559

1
Out of stock

92045

BEARING-BALL,6208ZZ AS2S

92045-3739

1
Out of stock

92049

SEAL-OIL,SD347626LHS

92049-3736

1
Out of stock

92049A

SEAL-OIL,FPJ740628.5ZS

92049-3737

1
Out of stock

92049B

SEAL-OIL,S40626NS

92049-3738

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92139

BUSHING,CONNECTING ROD,GREEN

92139-0722

1
Out of stock

92139A

BUSHING,CONNECTING ROD,YELLOW

92139-0723

—
Out of stock

92139B

BUSHING,CONNECTING ROD,PINK

92139-0724

—
Out of stock

92139C

BUSHING,CRANKSHAFT,#1,GREEN

92139-0725

1
Out of stock

92139D

BUSHING,CRANKSHAFT,#1,YEL

92139-0726

—
Out of stock

92139E

BUSHING,CRANKSHAFT,#1,PINK

92139-0727

—
Out of stock

92139F

BUSHING,CRANKSHAFT,#2,GREEN

92139-0728

1
Out of stock

92139G

BUSHING,CRANKSHAFT,#2,YEL

92139-0729

—
Out of stock

92139H

BUSHING,CRANKSHAFT,#2,PINK

92139-0730

—
Out of stock

92139I

BUSHING,CRANKSHAFT,#3,GREEN

92139-0731

1
Out of stock

92139J

BUSHING,CRANKSHAFT,#3,YELLOW

92139-0732

—
Out of stock

92139K

BUSHING,CRANKSHAFT,#3,PINK

92139-0733

—
Out of stock

92152

COLLAR,OUTPUT RR,L=19.5

92152-3733

1
Out of stock

92154

BOLT,CONNECTING ROD,9MM

92154-3720

1
Out of stock

92200

WASHER

92200-3789

1
Out of stock
