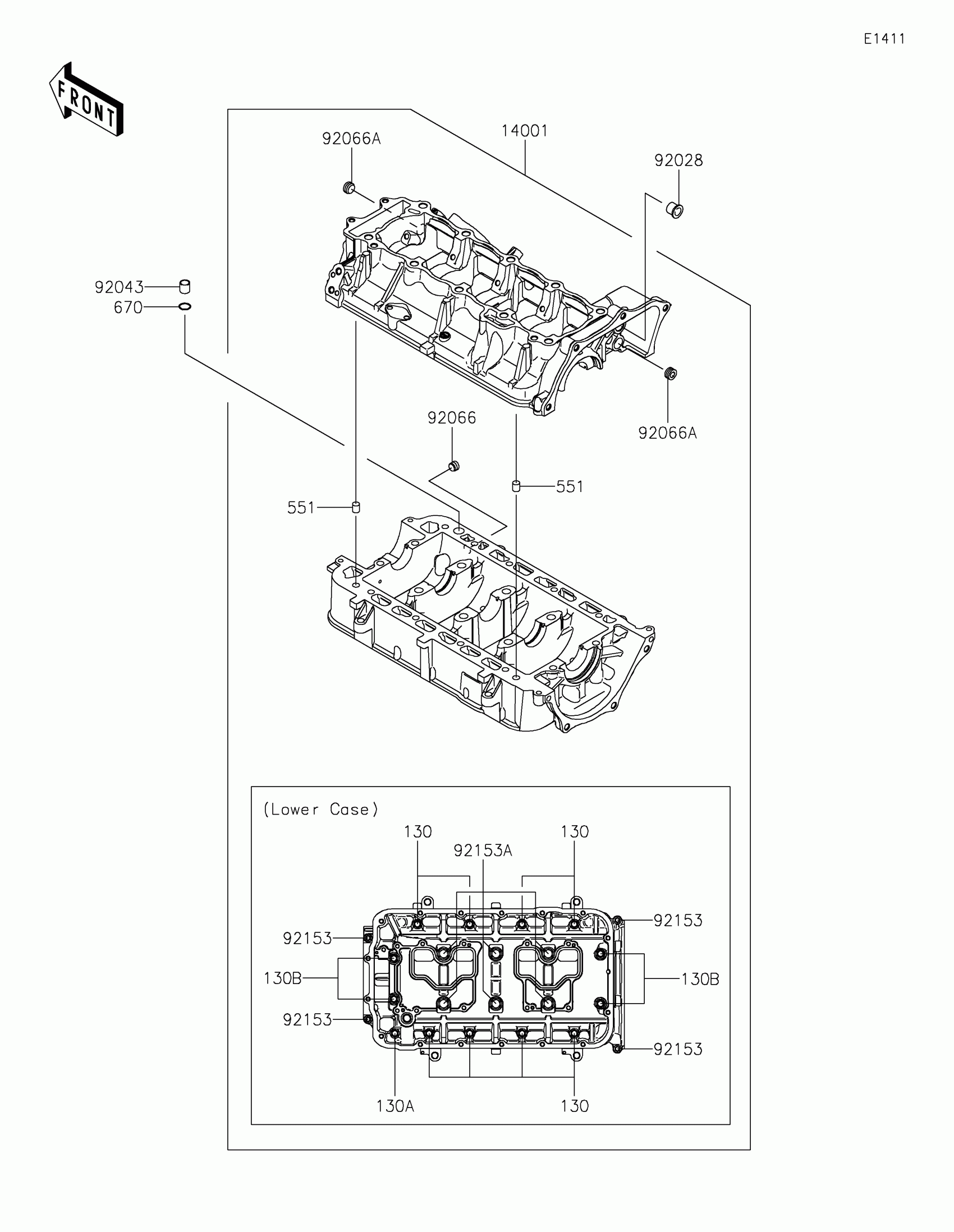

Kawasaki JET SKI® SX-R™ Crankcase Diagram

Description

Price

14001

SET-CRANKCASE

14001-0574

$1,606.02

92028

BUSHING

92028-3718

$7.18

92043

PIN,11.5X14X14

92043-1279

$3.81

92066

PLUG

92066-3778

$10.63

92066A

PLUG

92066-3782

$10.63

92153

BOLT,6X30

92153-3707

$2.63

92153A

BOLT,10X85

92153-3711

$11.17

130

BOLT-FLANGED,8X45

130CD0845

$3.04

130A

BOLT-FLANGED,8X55

130CD0855

$4.65

130B

BOLT-FLANGED,8X85

130CD0885

$3.15

551

PIN-DOWEL

551R1012

$5.71

670

O RING,14MM

670D2014

$4.18
