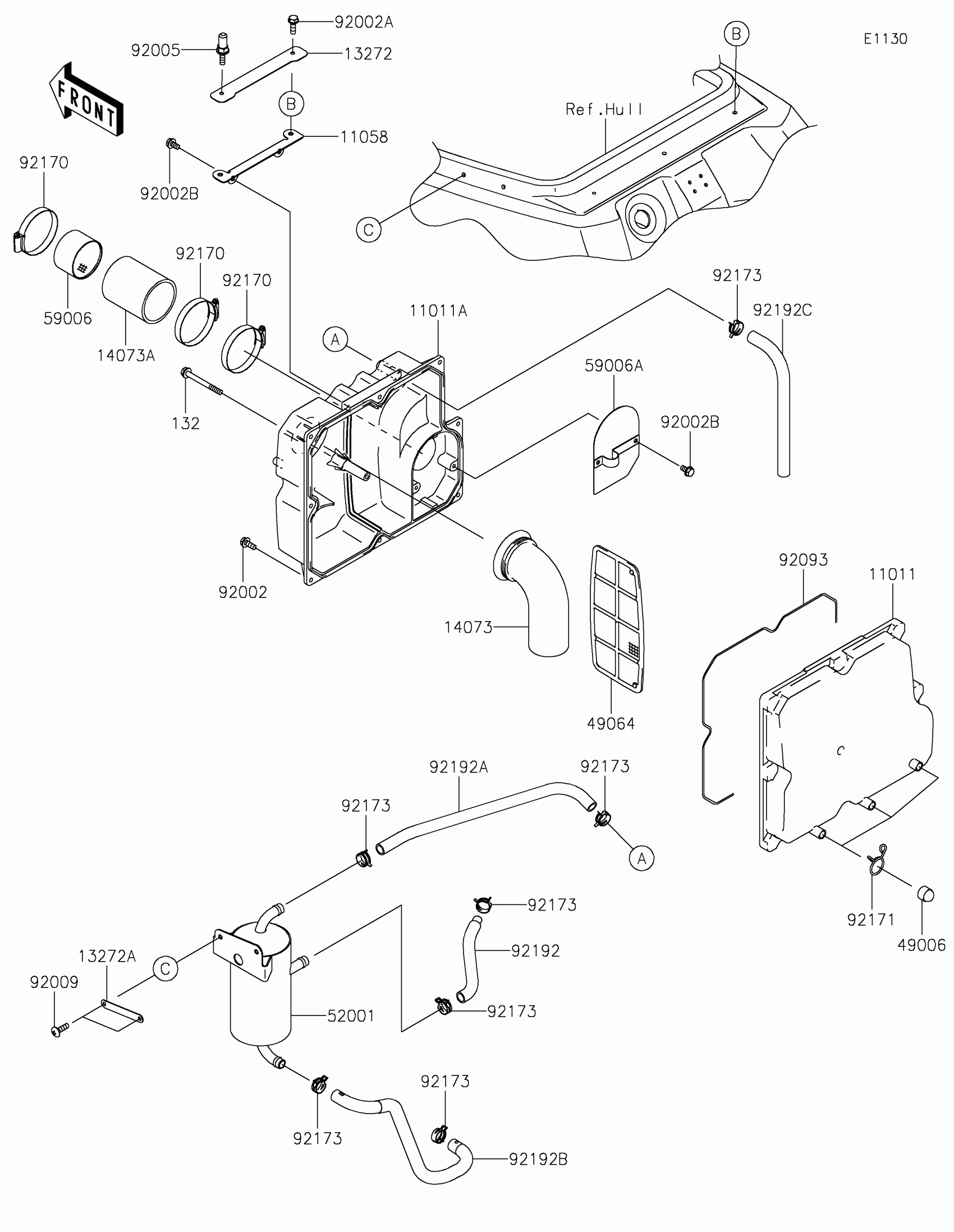

Kawasaki JET SKI® SX-R™ 160 Intake Silencer Diagram

Description

Price

11011

CASE-AIR FILTER,RR

11011-3704

$115.63

11011A

CASE-AIR FILTER,FR

11011-3706

$105.09

11058

BRACKET

11058-1254

$7.84

13272

PLATE

13272-2418

$3.52

13272A

PLATE

13272-2419

$2.76

14073

DUCT,AIR INLET

14073-3794

$17.65

14073A

DUCT,AIR FILTER-THOROTTLE

14073-3795

$5.59

49006

BOOT,DRAIN

49006-3718

$6.62

49064

FILTER-AIR

49064-3702

$23.30

52001

TANK-OIL

52001-0010

$71.23

59006

ARRESTER-FLAME

59006-0019

$304.03

59006A

ARRESTER-FLAME

59006-3720

$43.85

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X20

92002-3755

$4.69

92002B

BOLT,6X12

92002-3763

$4.69

92005

FITTING

92005-0877

$23.22

92009

SCREW,6X20

92009-3870

$4.37

92093

SEAL

92093-3766

$3.40

92170

CLAMP

92170-3764

$10.35

92171

CLAMP,BOOT

92171-3711

$3.87

92173

CLAMP

92173-1039

$3.02

92192

TUBE,CYLINDER HEAD-OIL TANK

92192-1704

$7.09

92192A

TUBE,OIL TANK-AIR CLEANER

92192-1705

$10.51

92192B

TUBE,OIL TANK-OIL PAN

92192-1776

$49.73

92192C

TUBE,BLOWBY

92192-3725

$25.34

132

BOLT-FLANGED-SMALL,6X60

132BD0660

$5.25
