- JET SKI® SX-R™ 160
Ignition System

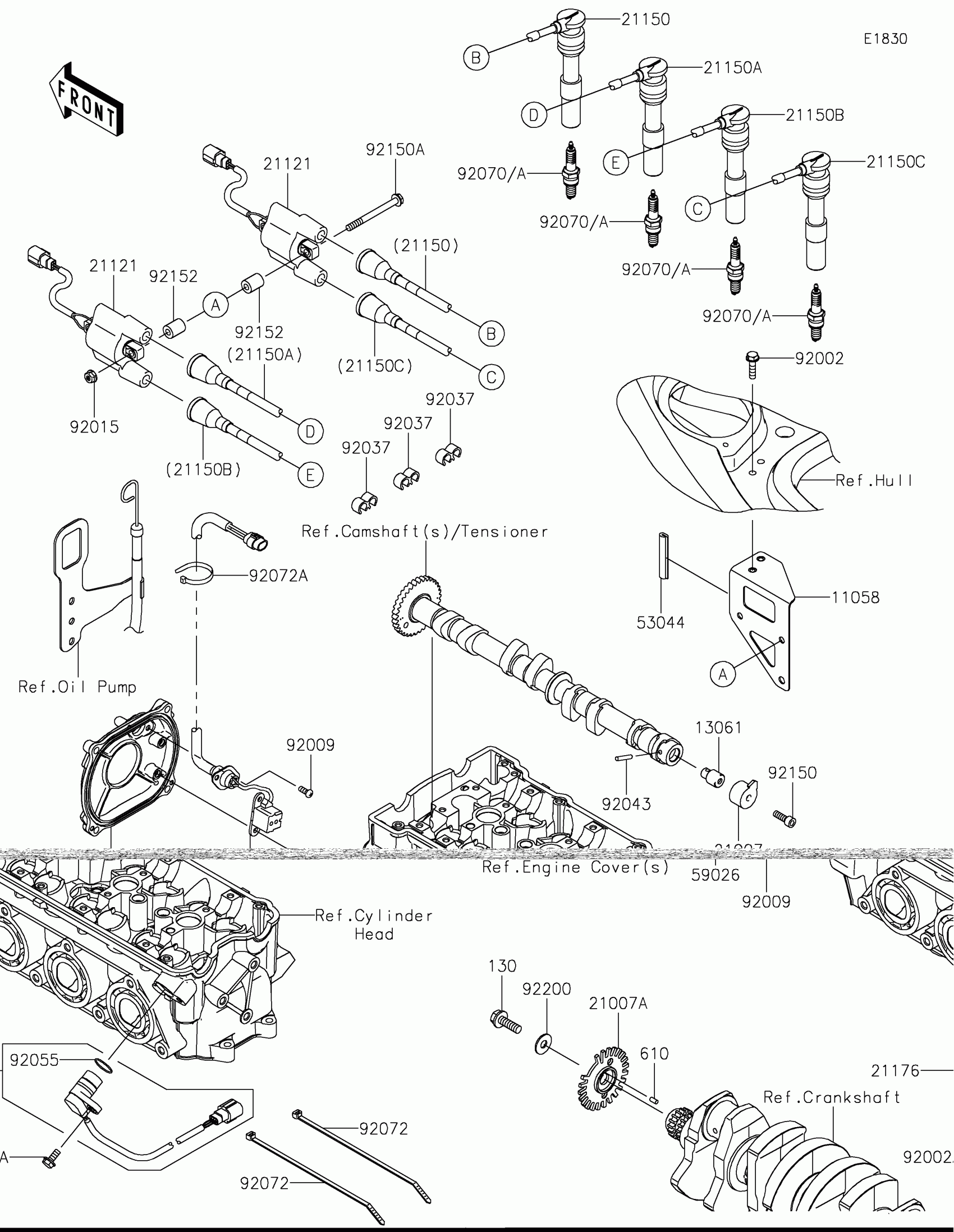

Kawasaki JET SKI® SX-R™ 160 Ignition System Diagram
#
Description
Price
11058
BRACKET,IGNITION COIL
11058-1255
$11.83
13061
BOSS,CAM SENSOR
13061-1687
$16.18
21007
ROTOR,EX CAM
21007-3742
$22.70
21007A
ROTOR,PULSING
21007-3744
$23.32
21121
COIL-IGNITION
21121-0744
$186.15
21150
CORD-ASSY,#1,L=340
21150-0006
$79.55
21150A
CORD-ASSY,#2,L=450
21150-0007
$79.55
21150B
CORD-ASSY,#3,L=540
21150-0008
$79.55
21150C
CORD-ASSY,#4,L=600
21150-0009
$79.55
21176
SENSOR
21176-1077
$102.13
53044
TRIM
53044-0621
$1.28
59026
COIL-PULSING
59026-3702
$120.91
92002
BOLT,6X25
92002-3714
$5.00
92002A
BOLT,6X16
92002-3728
$4.69
92009
SCREW,5X12
92009-1296
$3.92
92015
NUT,6MM
92015-3767
$4.69
92037
CLAMP,HOSE
92037-1603
$5.00
92043
PIN
92043-1575
$2.46
92055
RING-O
92055-1639
$3.09
92070
PLUG-SPARK,CR9EKB(NGK)
92070-0050
$12.39
92070A
PLUG-SPARK,CR8EKB(NGK)
92070-0708
$10.36
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,L=152
92072-3874
$4.18
92150
BOLT,6X18
92150-1645
$3.60
92150A
BOLT,6X70
92150-3753
$7.33
92152
COLLAR
92152-3738
$7.63
92200
WASHER,8.0X22.0X1.5
92200-0174
$2.61
130
BOLT-FLANGED,8X25
130CD0825
$2.70
610
ROLLER,4X8
610A0408
$4.31
