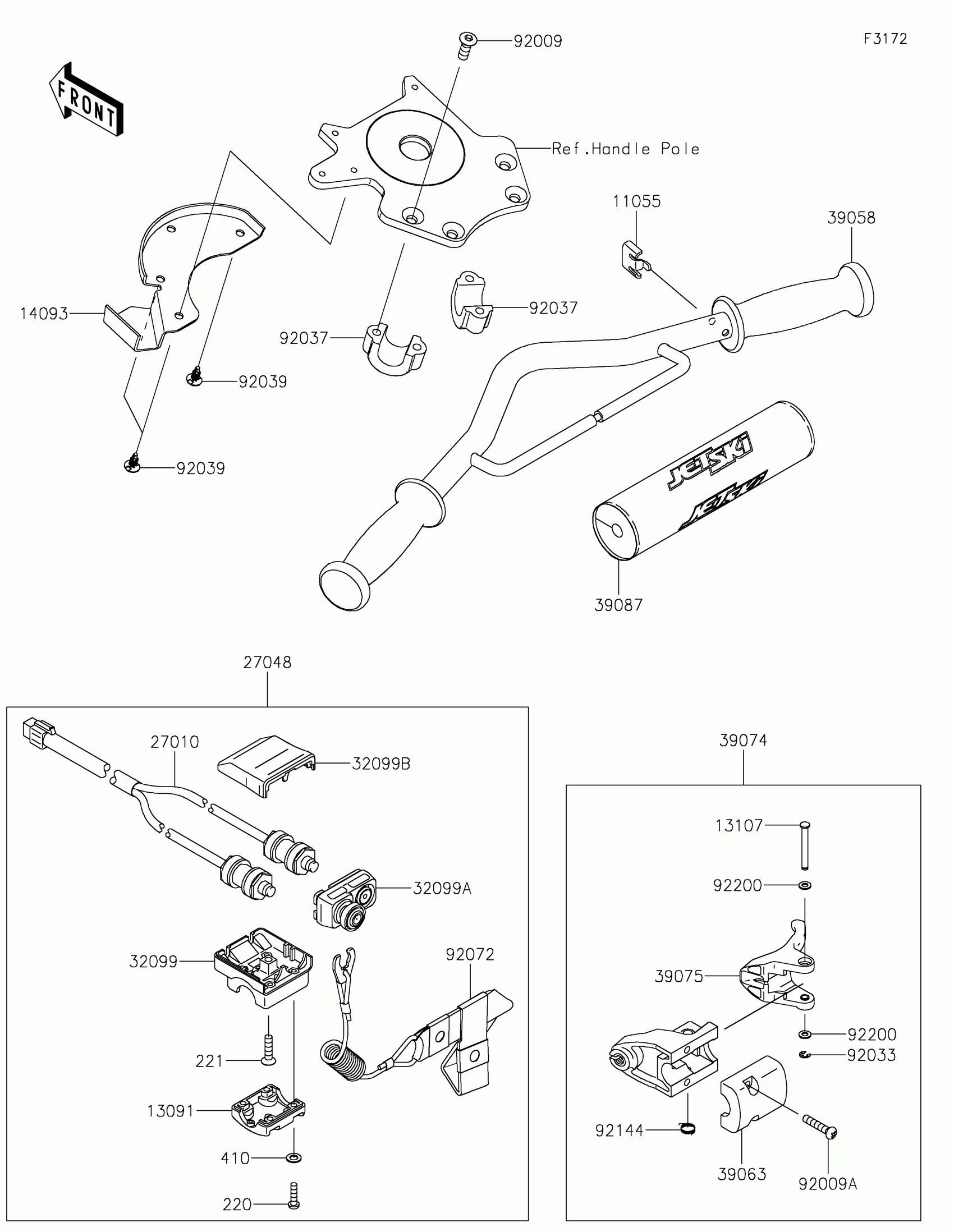

Kawasaki JET SKI® SX-R™ 160 Handlebar Diagram

Description

Price

11055

BRACKET,THROTTLE LEVER

11055-3709

$10.05

13091

HOLDER,SWITCH

13091-3726

$27.50

13107

SHAFT

13107-3740

$8.58

14093

COVER

14093-0599

$7.03

27010

SWITCH,STOP&START

27010-3780

$248.61

27048

SWITCH-ASSY,STOP&START

27048-0048

$490.36

32099

CASE,LWR,SWITCH

32099-3725

$46.93

32099A

CASE,FR,SWITCH

32099-3818

$38.54

32099B

CASE,UPP,SWITCH

32099-3860

$34.87

39058

HANDLE-COMP,BLACK

39058-0045-6Z

$273.65

39063

HOUSING-CONTROL

39063-3727

$28.81

39074

LEVER-ASSY-THROTTLE

39074-3726

$111.92

39075

LEVER-THROTTLE

39075-3714

$41.51

39087

PAD-HANDLE

39087-0018

$28.67

92009

SCREW,8X22

92009-3701

$7.49

92009A

SCREW,6X30

92009-3837

$4.69

92033

RING-SNAP

92033-3723

$3.29

92037

CLAMP,HANDLEBAR

92037-503

$16.01

92039

RIVET

92039-3787

$3.90

92072

BAND,TETHER SWITCH

92072-0891

$57.31

92144

SPRING

92144-3749

$4.26

92200

WASHER

92200-3738

$3.32

220

SCREW-PAN-CROS,5X20

220R0520

$4.72

221

SCREW-CSK-CROS,6X25

221R0625

$4.45

410

W-PLAIN-S,5MM

410S0500

$1.59
