- JET SKI® SX-R™ 160
Handle Pole

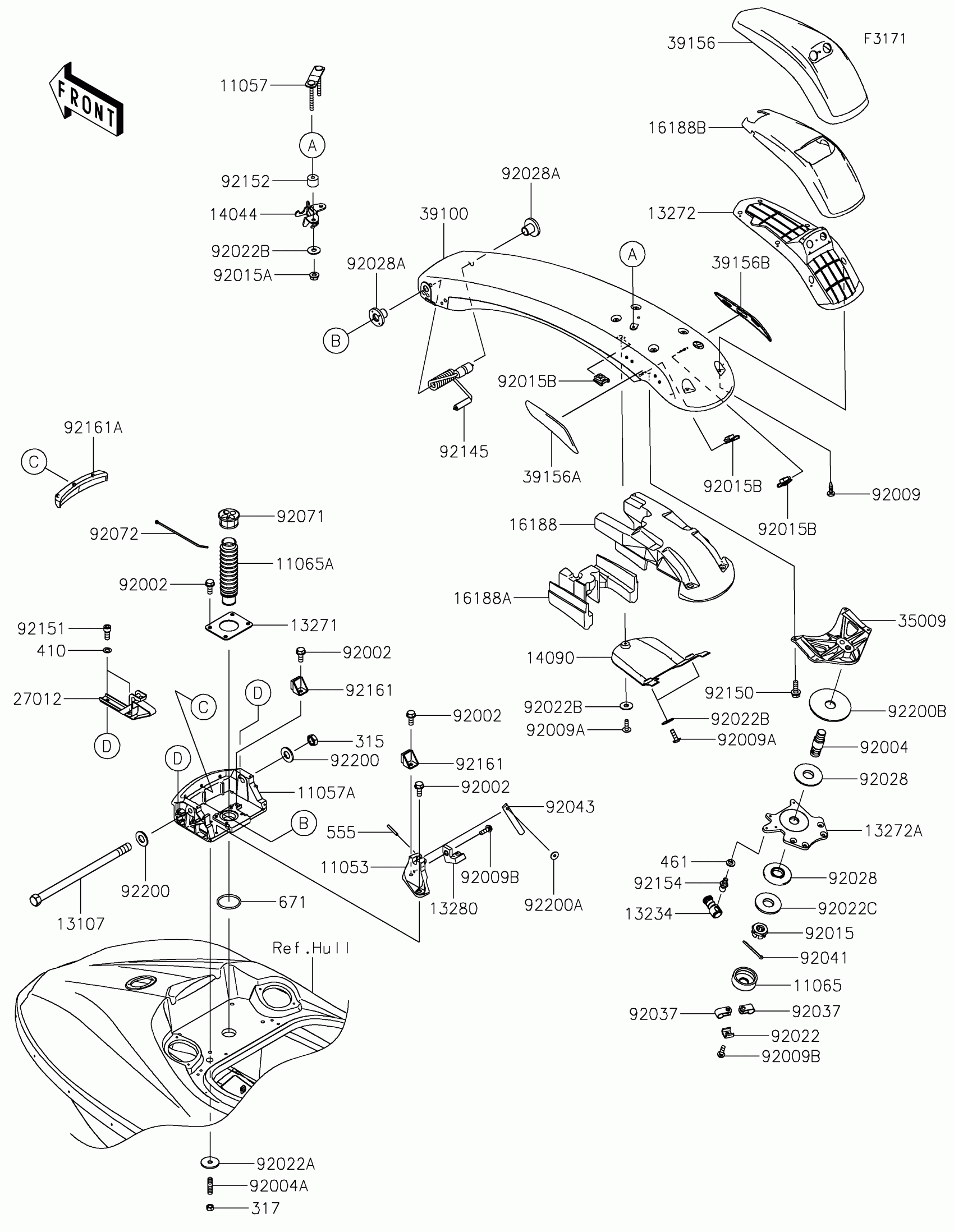

Kawasaki JET SKI® SX-R™ 160 Handle Pole Diagram
#
11053
BRACKET
11053-3749
$72.82
11057
BRACKET
11057-0804
$9.39
11057A
BRACKET
11057-1049
$215.41
11065
CAP
11065-0982
$3.01
11065A
CAP
11065-3726
$28.92
13107
SHAFT
13107-3781
$78.70
13234
SHAFT-COMP
13234-3713
$80.64
13271
PLATE
13271-3882
$13.16
13272
PLATE,INDICATOR
13272-2223
$46.09
13272A
PLATE
13272-2268
$202.90
13280
HOLDER
13280-0885
$10.99
14044
HOLDER-CABLE
14044-0568
$40.45
14090
COVER,HANDLE POLE,I.GRAY
14090-3708-72B
$12.14
16188
FLOAT,HANDLE POLE,UPP
16188-0027
Unavailable
16188A
FLOAT,HANDLE POLE,LWR
16188-0052
$19.67
16188B
FLOAT
16188-0053
$20.64
27012
HOOK
27012-3859
$13.85
35009
BRACE
35009-3712
$55.27
39100
POLE-COMP-HANDLE,I.GRAY
39100-0001-72B
$729.15
39156
PAD,HANDLE,F.BLACK
39156-2142-6Z
$185.37
39156A
PAD,HANDLE POLE,LH
39156-2172
$84.84
39156B
PAD,HANDLE POLE,RH
39156-2173
$84.84
92002
BOLT,6X16
92002-3728
$4.69
92004
STUD
92004-0776
$67.79
92004A
STUD,8X25
92004-3756
$6.22
92009
SCREW,TAPPING,5X20
92009-3716
$3.65
92009A
SCREW,5X16
92009-3797
$2.67
92009B
SCREW,5X16
92009-3868
$1.54
92015
NUT,CASTLE,18MM
92015-3006
$37.87
92015A
NUT,6MM
92015-3767
$4.69
92015B
NUT,CLIP,5MM
92015-3830
$7.91
92022
WASHER,CLAMP
92022-3014
$4.76
92022A
WASHER,8.5X34X3
92022-3746
$9.00
92022B
WASHER
92022-567
$2.67
92022C
WASHER
92022-571
$36.16
92028
BUSHING
92028-3743
$10.56
92028A
BUSHING,STEERING
92028-3752
$11.10
92037
CLAMP,LEAD WIRE
92037-3007
$7.31
92041
COTTER
92041-0011
$6.35
92043
PIN,STOPPER
92043-3754
$17.04
92071
GROMMET
92071-0775
$3.56
92072
BAND,L=188.85
92072-0105
$1.73
92145
SPRING
92145-3720
$99.57
92150
BOLT,6X20
92150-3758
$5.11
92151
BOLT,SOCKET,6X16
92151-3770
$2.38
92152
COLLAR,6.5X20X15
92152-2338
$6.38
92154
BOLT,BALL,6MM
92154-3710
$23.99
92161
DAMPER
92161-1919
$7.94
92161A
DAMPER
92161-3743
$24.75
92200
WASHER-PLAIN,15X30X2.6
92200-1847
$5.10
92200A
WASHER,3.5X12X1
92200-3723
$4.25
92200B
WASHER,20.5X80X3
92200-3725
$15.46
315
NUT-HEX-FINE,14MM
315R1400
$7.91
317
NUT
317R0800
$1.96
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
461
WASHER-SPRING,6MM
461S0600
$1.07
555
PIN-SPRING,3X25
555B0325
$3.98
671
O RING,40MM
671B2540
$6.22
