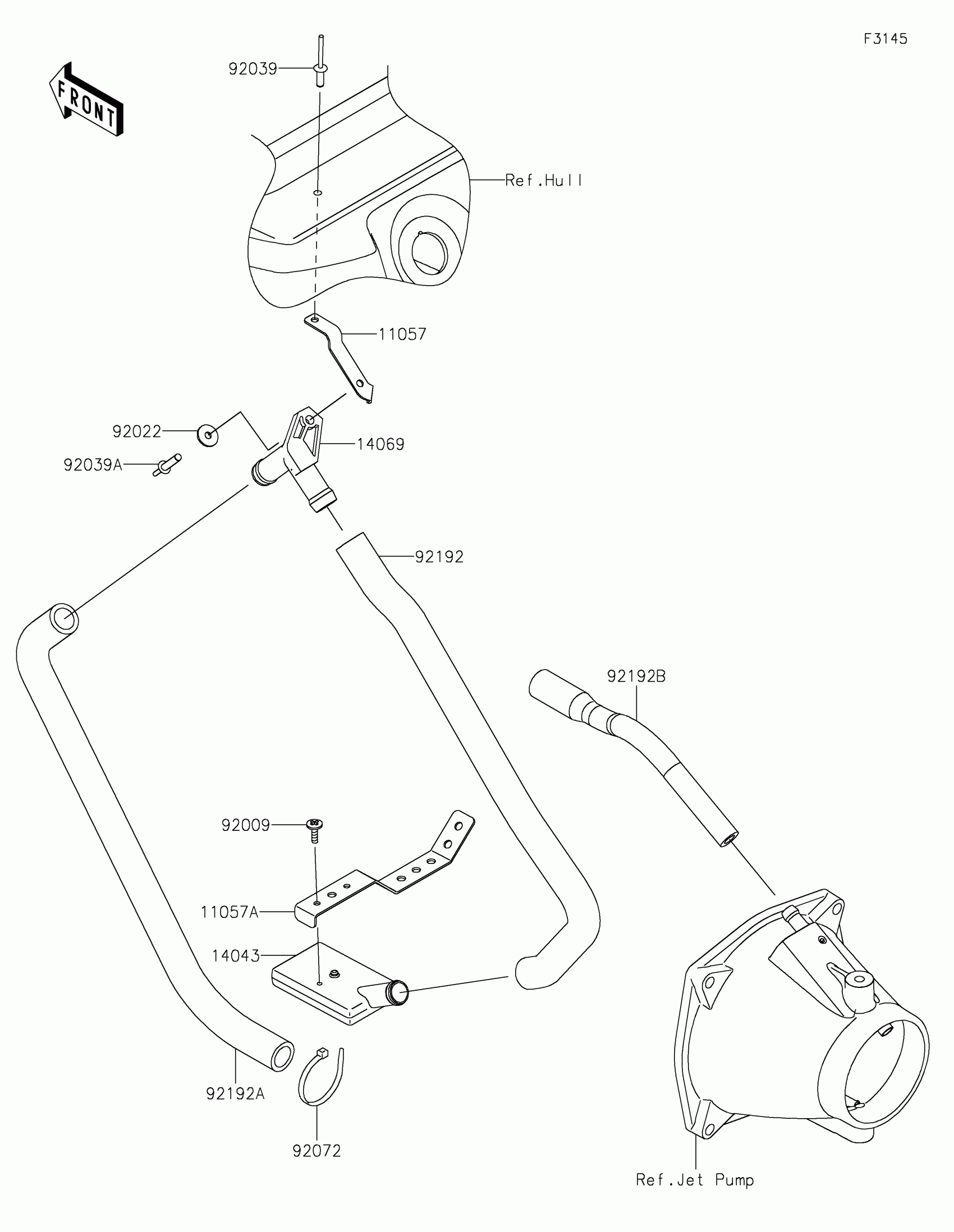

Kawasaki JET SKI® SX-R™ 160 Bilge System Diagram

Description

Price

11057

BRACKET,BREATHER

11057-0454

$4.71

11057A

BRACKET,FILTER

11057-0657

$14.30

14043

FILTER

14043-3711

$6.37

14069

BREATHER

14069-3708

$9.50

92009

SCREW,TAPPING,4X14

92009-3762

$2.12

92022

WASHER,5X16X1.5

92022-3041

$4.18

92039

RIVET

92039-3755

$6.57

92039A

RIVET

92039-3775

$1.70

92072

BAND,L=188.85

92072-0105

$1.73

92192

TUBE,16X23X450

92192-1712

$13.83

92192A

TUBE,16X23X378

92192-1713

$12.91

92192B

TUBE,HULL-NOZZLE

92192-3843

$16.97
