2010 Kawasaki Jet Ski® STX Fuel Tank Diagram

← All diagrams

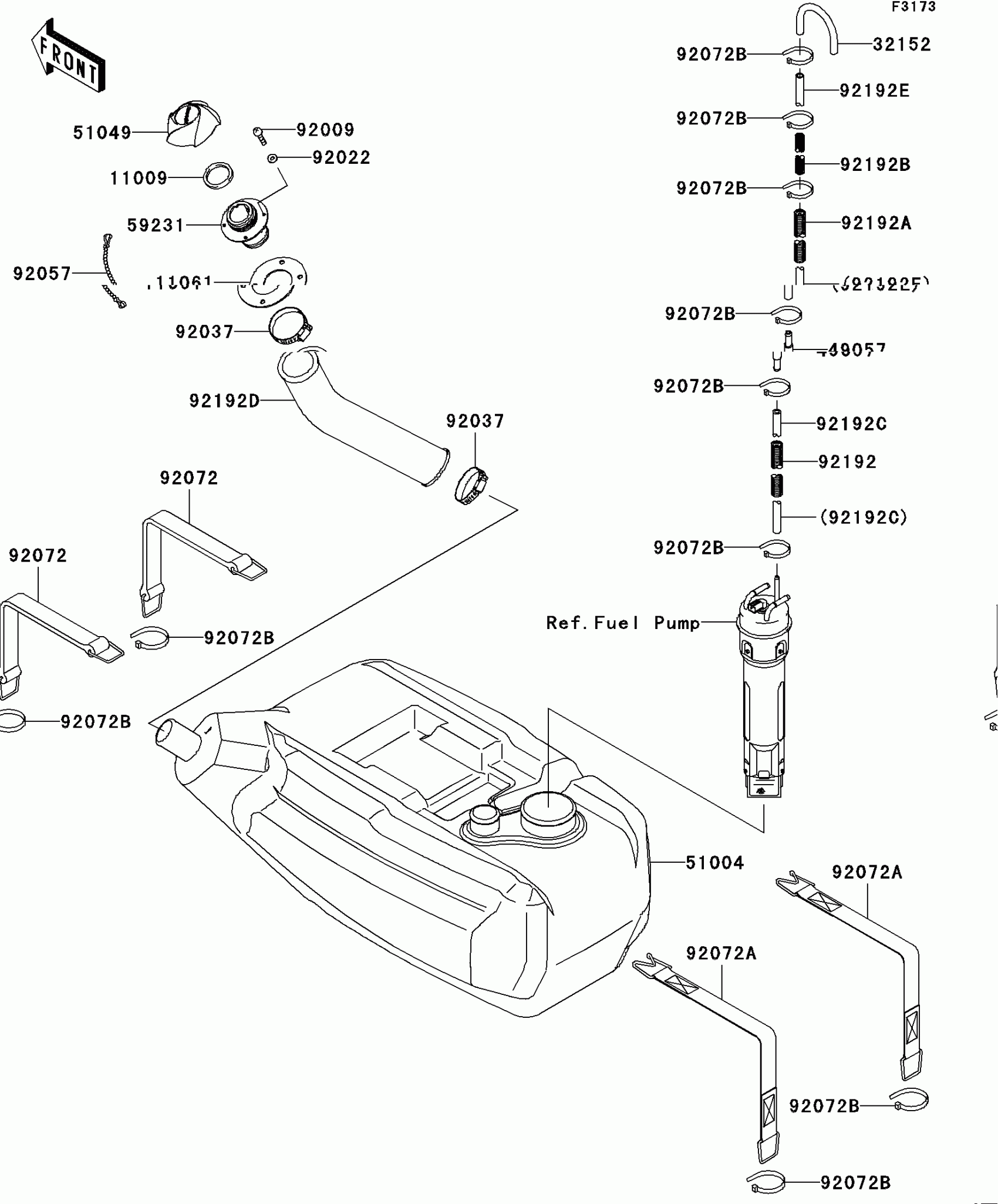

Find the part on the Fuel Tank diagram for your 2010 Kawasaki Jet Ski® STX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Jet Ski® STX Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TANK CAP

11009-3020

1
Out of stock

11061

GASKET

11061-3701

1
Out of stock

32152

PIPE

32152-3705

1
Out of stock

49057

VALVE-RELIEF

49057-3707

1
Out of stock

51004

TANK-FUEL

51004-3745

1
Out of stock

51049

CAP-TANK,FUEL

51049-3725

1
Out of stock

59231

FILLER,FUEL TANK

59231-3716

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-3849

1
Out of stock

92022

WASHER

92022-563

1
Out of stock

92037

CLAMP

92037-3009

1
Out of stock

92057

CHAIN,COVER,L=100

92057-3704

1
Out of stock

92072

BAND

92072-3845

1
Out of stock

92072A

BAND

92072-3850

1
Out of stock

92072B

BAND,L=100.08

92072-3882

1
Out of stock

92192

TUBE,CORRUGATED,L=120

92192-3749

1
Out of stock

92192A

TUBE,CORRUGATED,L=700

92192-3750

1
Out of stock

92192B

TUBE,CORRUGATED,L=100

92192-3809

1
Out of stock

92192C

TUBE,5.8X10.8X100

92192-3840

1
Out of stock

92192D

TUBE,FUEL TANK-FILLER

92192-3842

1
Out of stock

92192E

TUBE,5.8X10.8X1000

92192-3844

1
Out of stock
