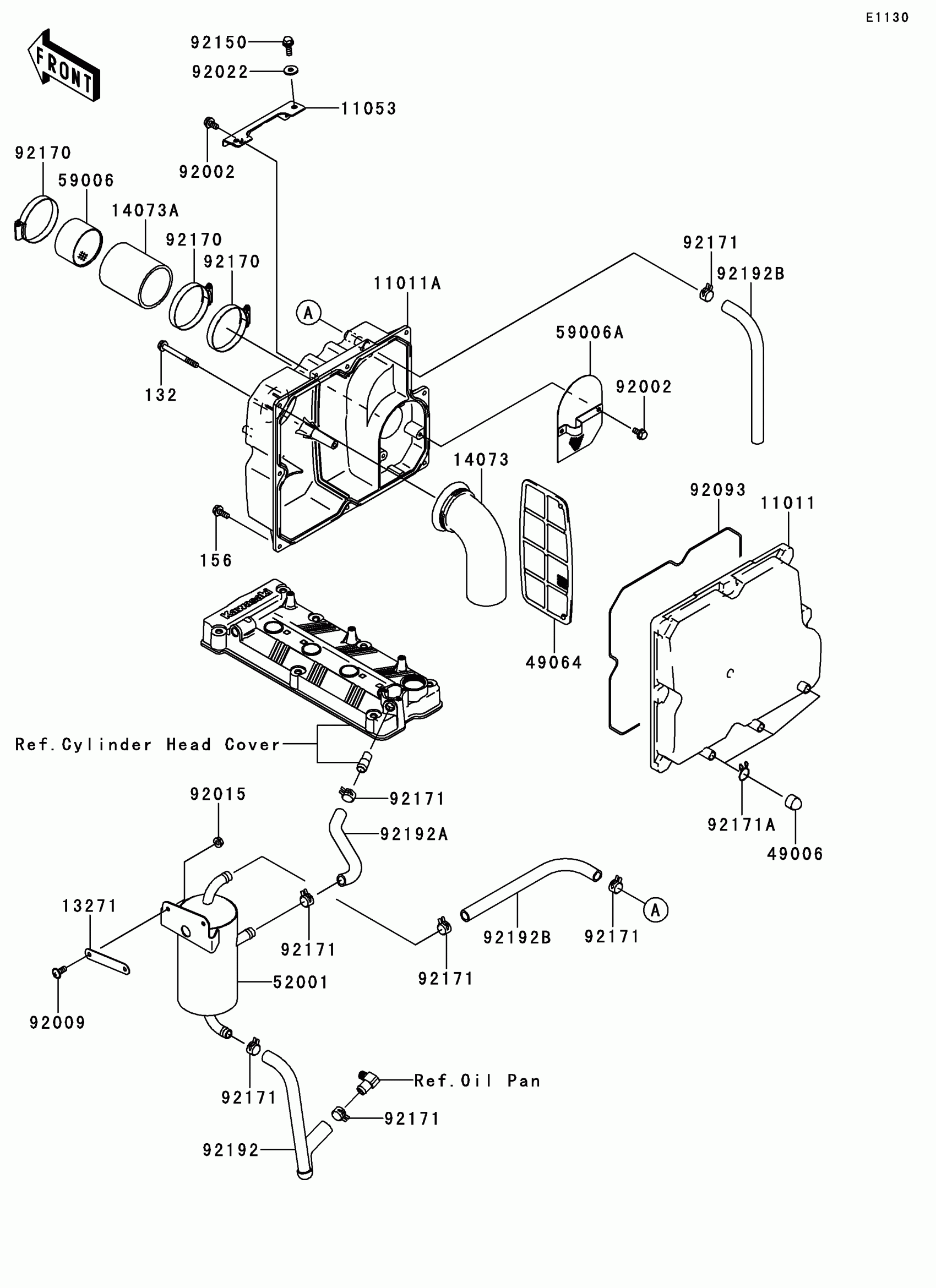

Kawasaki Jet Ski® STX Intake Silencer Diagram

Description

Price

11011

CASE-AIR FILTER,RR

11011-3704

$117.94

11011A

CASE-AIR FILTER,FR

11011-3706

Unavailable

11053

BRACKET

11053-3789

$33.63

13271

PLATE

13271-3880

$4.42

14073

DUCT,AIR INLET

14073-3794

$16.56

14073A

DUCT,AIR FILTER-THOROTTLE

14073-3795

$4.88

49006

BOOT,DRAIN

49006-3718

$4.94

49064

FILTER-AIR

49064-3702

$21.73

52001

TANK-OIL

52001-3738

$75.22

59006

ARRESTER-FLAME

59006-0019

$310.35

59006A

ARRESTER-FLAME

59006-3720

$44.65

92002

BOLT,6X12

92002-3763

$3.57

92009

SCREW,6X20

92009-3870

$3.92

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,8.2X18X1.5

92022-3743

$3.22

92093

SEAL

92093-3766

$2.71

92150

BOLT,8X20

92150-3713

$7.88

92170

CLAMP

92170-3764

$9.95

92171

CLAMP,TUBE

92171-3710

Unavailable

92171A

CLAMP,BOOT

92171-3711

$3.37

92192

TUBE,SEPARATOR-OILPAN

92192-3701

$31.01

92192A

TUBE,HEAD-SEPARATOR

92192-3719

$8.85

92192B

TUBE,BLOWBY

92192-3725

$23.71

132

BOLT-FLANGED-SMALL,6X60

132BD0660

$4.63

156

BOLT-WP,6X16

156R0616

$2.76
