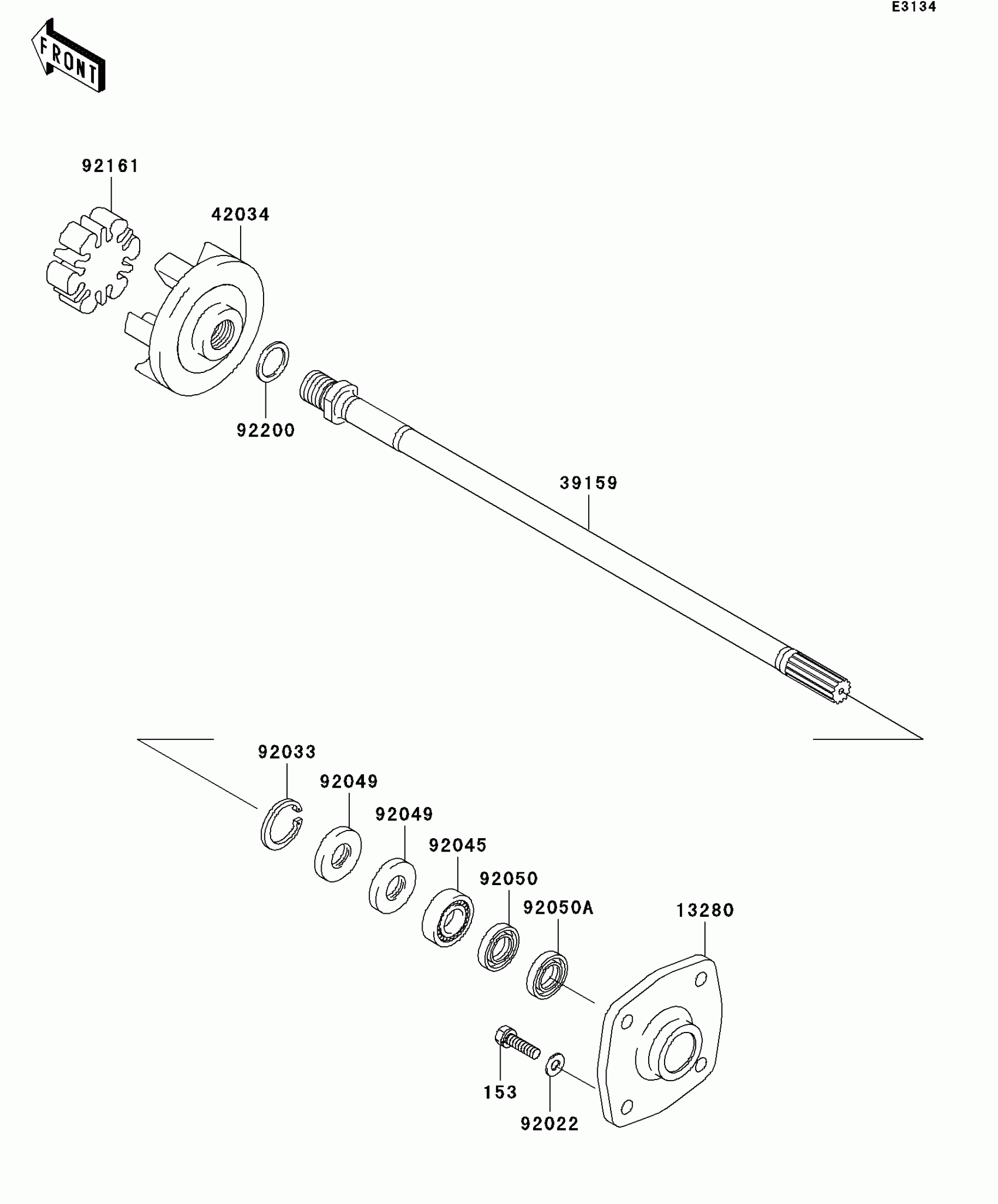

Kawasaki Jet Ski® STX Drive Shaft Diagram

Description

Price

13280

HOLDER

13280-3756

$334.55

39159

SHAFT-DRIVE

39159-3739

$531.47

42034

COUPLING

42034-3711

$50.47

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92033

RING-SNAP,42MM

92033-3713

$17.74

92045

BEARING-BALL,60042RD

92045-0113

Unavailable

92049

SEAL-OIL,S620426

92049-3707

$7.91

92050

SEAL-OIL,SCY20368

92050-502

$27.73

92050A

SEAL-OIL,SC20367

92050-503

$24.91

92161

DAMPER

92161-3711

$87.48

92200

WASHER,24X32X2.0

92200-3739

$3.92

153

BOLT-WS-SMALL,8X30

153R0830

$5.93
