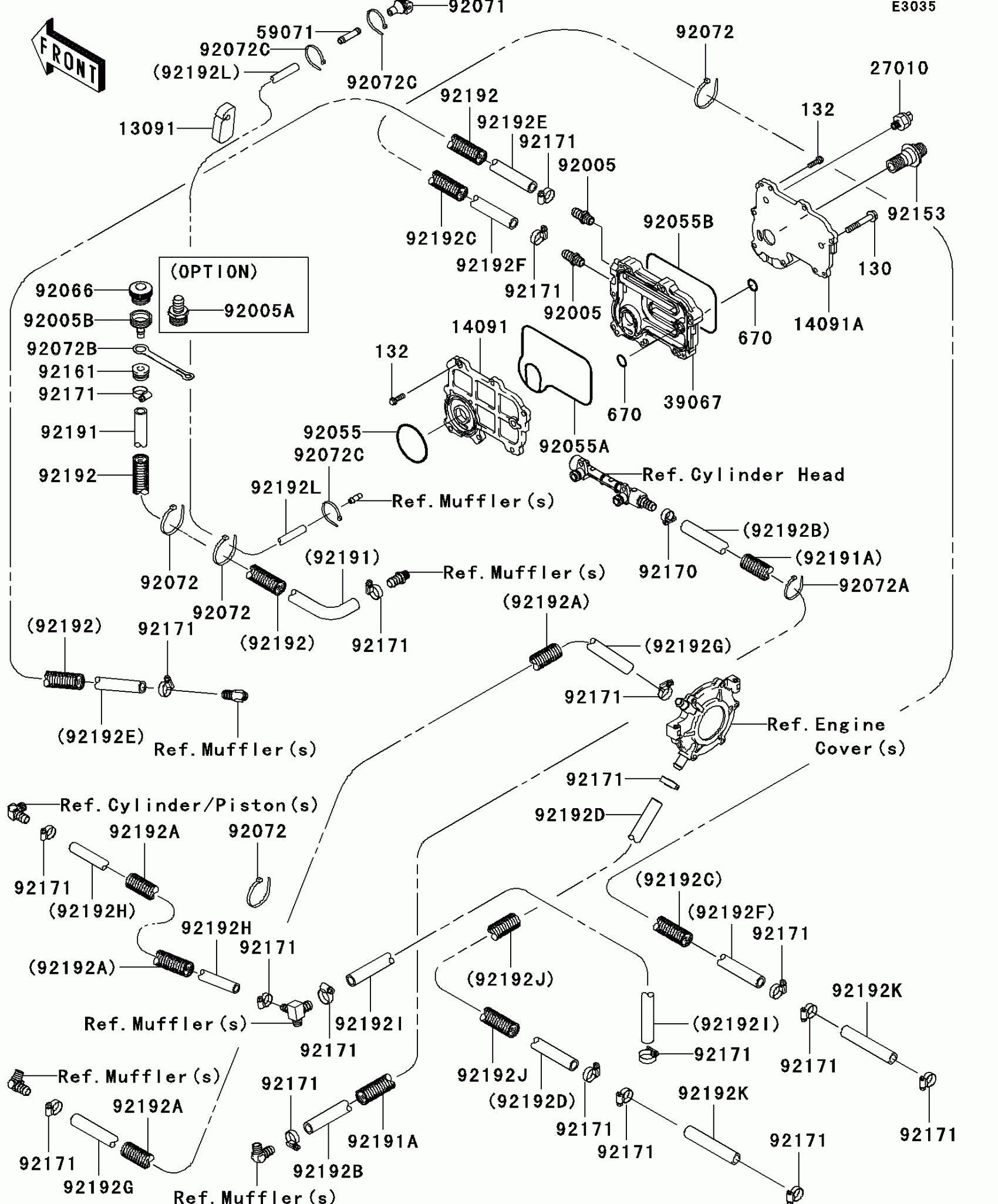

Kawasaki Jet Ski® STX Cooling Diagram

#

Description
Price

13091

HOLDER

13091-3712

$4.65

14091

COVER,INSIDE

14091-3755

$85.68

14091A

COVER,OUTSIDE

14091-3756

$85.68

27010

SWITCH,OIL PRESSURE

27010-3786

$67.73

39067

COOLER-OIL

39067-3704

$259.71

59071

JOINT

59071-3764

$7.64

92005

FITTING

92005-3714

$18.72

92005A

FITTING,FLUSH

92005-3748

$9.68

92005B

FITTING,FLUSH

92005-3757

$15.89

92055

RING-O,58X3

92055-3767

$6.18

92055A

RING-O

92055-3770

$21.99

92055B

RING-O

92055-3772

$13.06

92066

PLUG

92066-3787

$11.84

92071

GROMMET

92071-3815

$5.46

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,L=152

92072-3874

$4.18

92072B

BAND

92072-3877

$5.65

92072C

BAND,L=100.08

92072-3882

$2.02

92153

BOLT,OIL COOLER

92153-3713

$27.52

92161

DAMPER

92161-1331

$3.26

92170

CLAMP

92170-3729

Unavailable

92171

CLAMP

92171-3714

$9.49

92191

TUBE,CHAMBER-TAIL PIPE

92191-3850

$73.55

92191A

TUBE,CORRUGATED,19.5X23.8X500

92191-3884

$3.89

92192

TUBE,CORRUGATED,19.5X23.8X900

92192-3711

$5.42

92192A

TUBE,CORRUGATED,19.5X23.8X380

92192-3714

$2.67

92192B

TUBE,12X18X630

92192-3716

$55.90

92192C

TUBE,CORRUGATED,19.5X23.8X1400

92192-3732

$7.80

92192D

TUBE,GENERATOR-HULL

92192-3739

$54.68

92192E

TUBE,12X18X1000

92192-3740

$26.47

92192F

TUBE,12X18X1520

92192-3741

$35.29

92192G

TUBE,12X18X480

92192-3742

$13.28

92192H

TUBE,12X18X450

92192-3745

$13.28

92192I

TUBE,WATER MUFFLER-HULL

92192-3746

$52.96

92192J

TUBE,CORRUGATED,L=600M

92192-3751

$3.82

92192K

TUBE,PUMP-HULL

92192-3789

$6.88

92192L

TUBE,7X12X1590

92192-3848

$17.90

130

BOLT-FLANGED,8X50

130BD0850

$4.69

132

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

670

O RING,14MM

670D2014

$5.52
