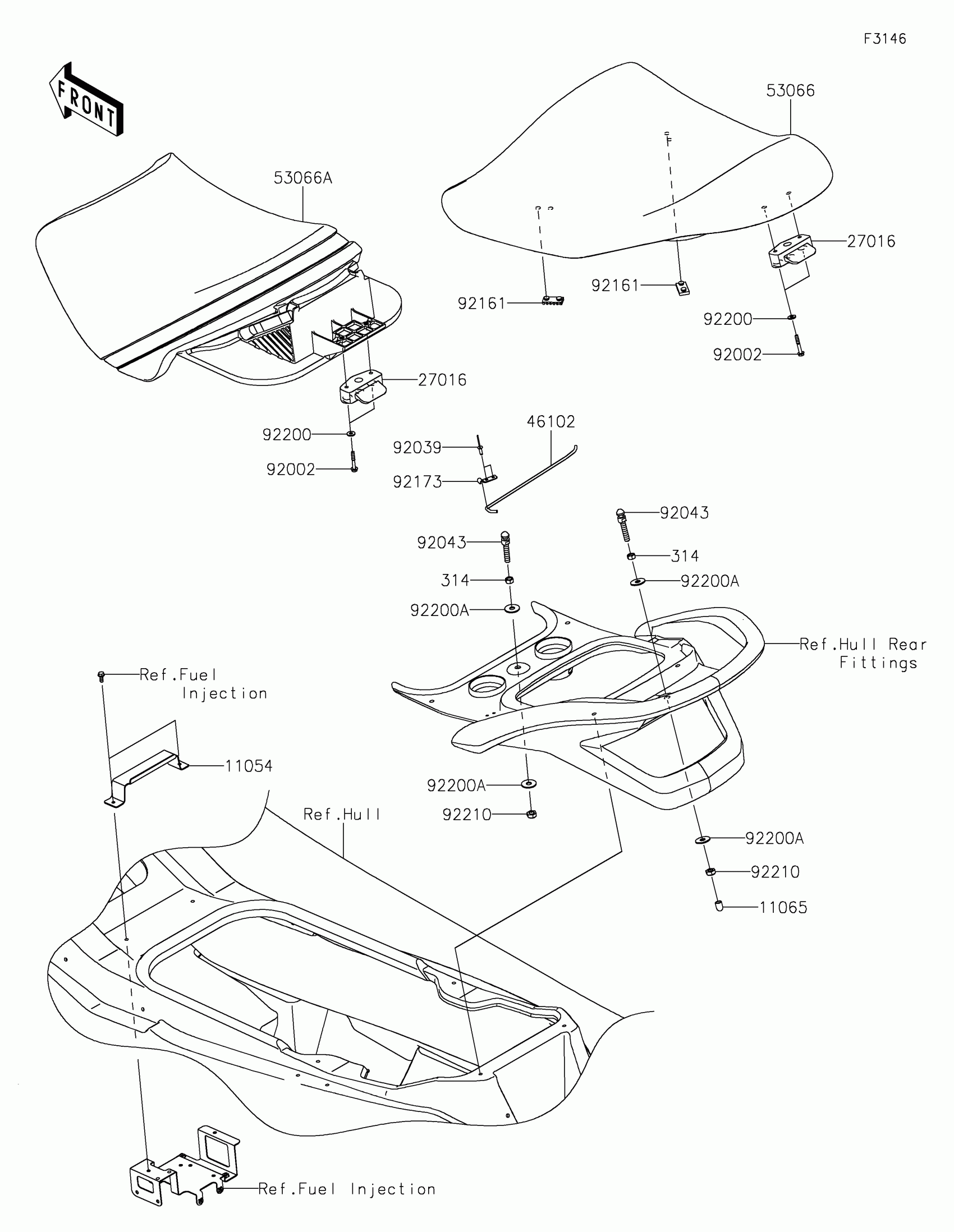

Kawasaki JET SKI® STX® 160X Seat Diagram

Description

Price

11054

BRACKET,FRONT SEAT

11054-3702

$40.84

11065

CAP

11065-1347

$3.53

27016

LOCK-ASSY,SEAT

27016-3758

$98.34

46102

ROD

46102-0639

$23.84

53066

SEAT-ASSY,RR,M.P.SILVER

53066-1101-12N

$478.13

53066A

SEAT-ASSY,FR,BLACK+BLK

53066-1108-12Y

$529.39

92002

BOLT,6X40

92002-3716

$5.52

92039

RIVET

92039-3714

$0.95

92043

92043-3763

$46.79

92161

DAMPER,SEAT

92161-1489

$3.35

92173

CLAMP

92173-2098

$5.79

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

92200A

WASHER

92200-3762

$2.61

92210

NUT,LOCK,10MM

92210-3792

$7.75

314

NUT-HEX-FINE,10MM

314R1000

$2.02
