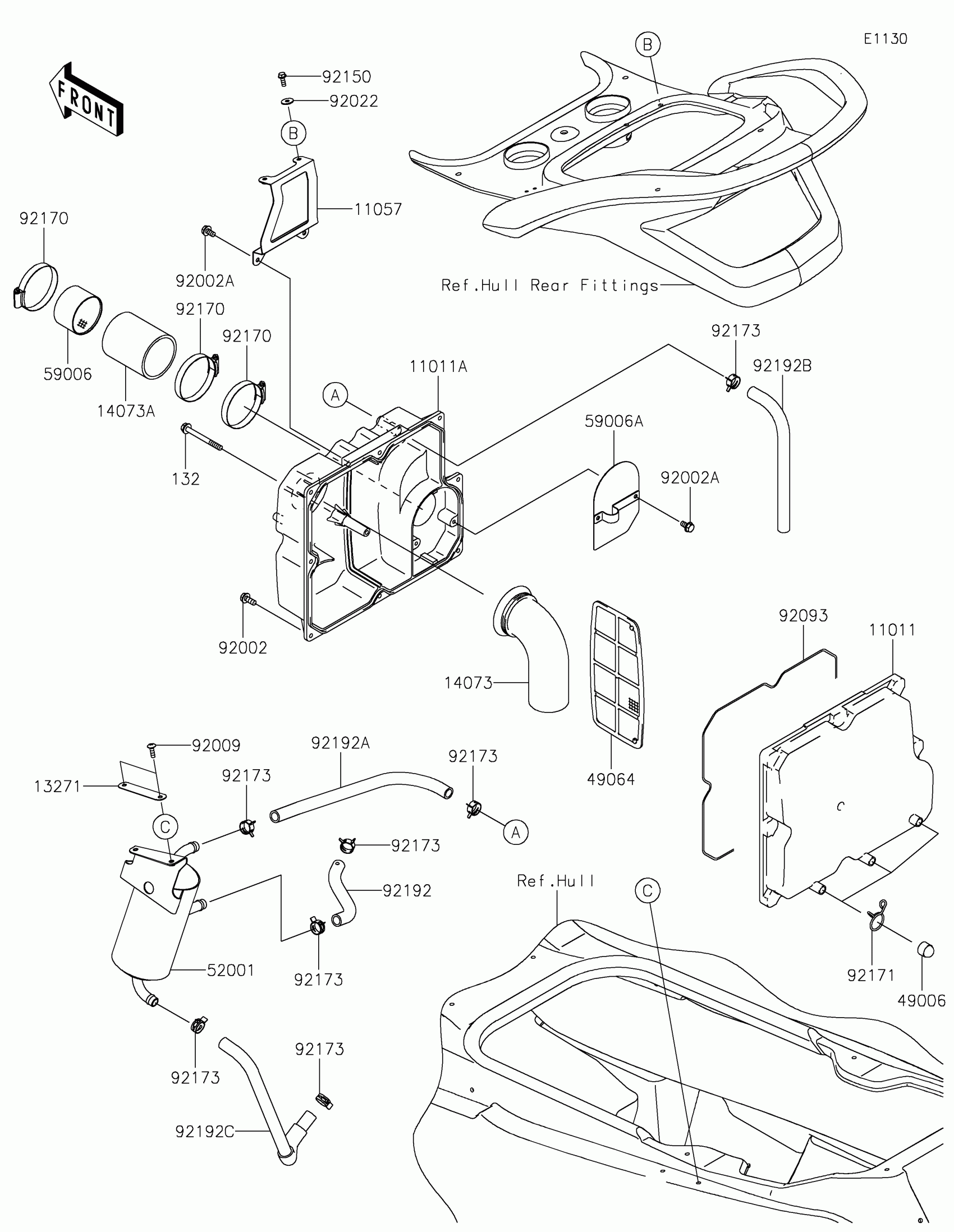

Kawasaki JET SKI® STX®160X Intake Silencer Diagram

Description

Price

11011

CASE-AIR FILTER,RR

11011-3704

$115.63

11011A

CASE-AIR FILTER,FR

11011-3706

$105.09

11057

BRACKET

11057-2555

$11.40

132

BOLT-FLANGED-SMALL,6X60

132BD0660

$5.25

13271

PLATE

13271-3880

$5.00

14073

DUCT,AIR INLET

14073-3794

$17.65

14073A

DUCT,AIR FILTER-THOROTTLE

14073-3795

$5.59

49006

BOOT,DRAIN

49006-3718

$6.62

49064

FILTER-AIR

49064-3702

$23.30

52001

TANK-OIL,SEPARATOR

52001-0012

$92.03

59006

ARRESTER-FLAME

59006-0019

$304.03

59006A

ARRESTER-FLAME

59006-3720

$43.85

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X12

92002-3763

$4.69

92009

SCREW,6X20

92009-3870

$4.37

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92093

SEAL

92093-3766

$3.40

92150

BOLT,6X18

92150-3729

$4.69

92170

CLAMP

92170-3764

$10.35

92171

CLAMP,BOOT

92171-3711

$3.87

92173

CLAMP

92173-1039

$3.02

92192

TUBE,HEAD-SEPARATOR

92192-1081

$8.96

92192A

TUBE,OIL TANK-AIR CLEANER

92192-1705

$10.51

92192B

TUBE,BLOWBY

92192-3725

$25.34

92192C

TUBE,OIL TANK-OIL PAN

92192-3808

$40.14
