2020 Kawasaki JET SKI® STX®160X Ignition System Diagram

← All diagrams

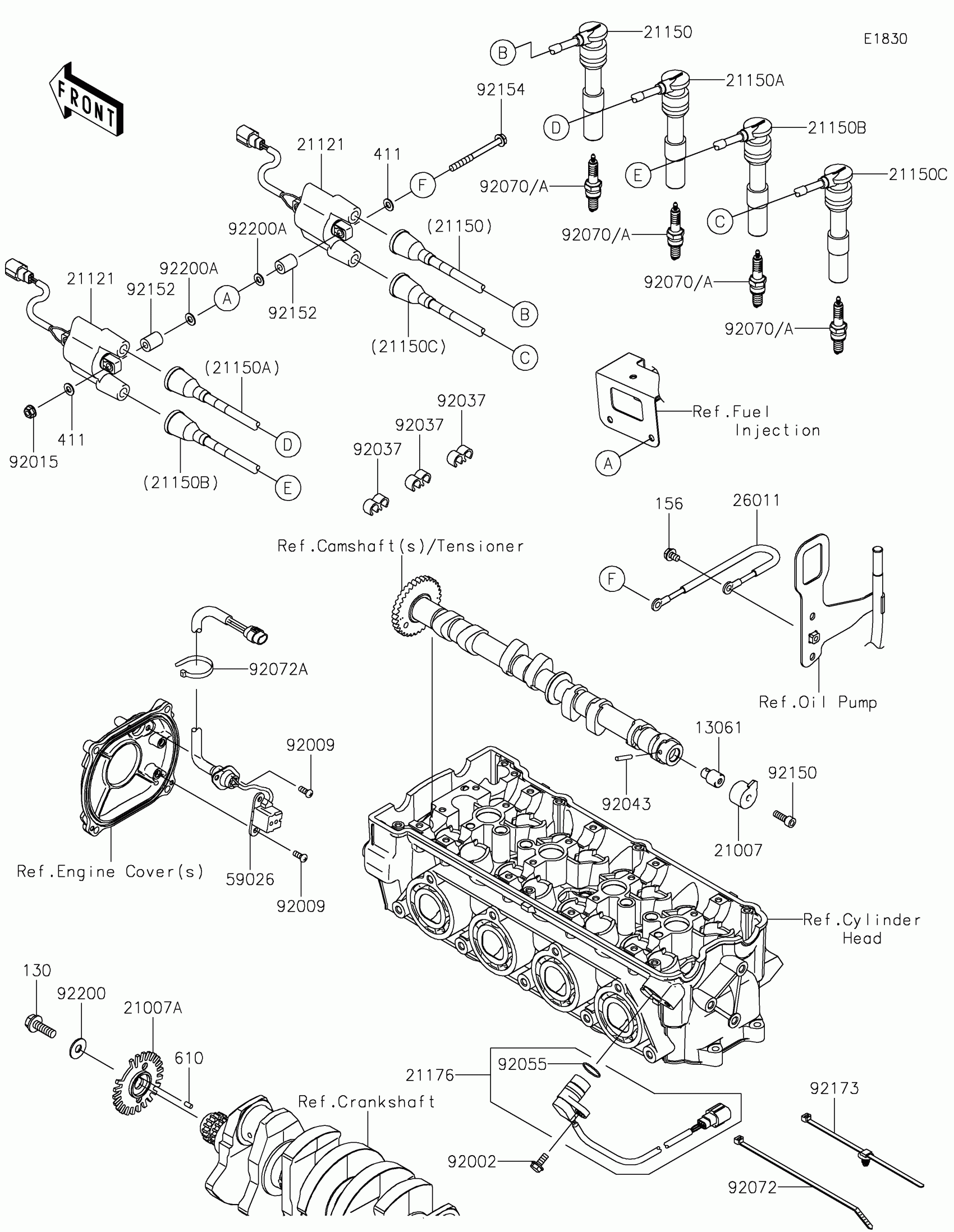

Find the part on the Ignition System diagram for your 2020 Kawasaki JET SKI® STX®160X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki JET SKI® STX®160X Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25

130CD0825

1

$2.20

In stock

13061

BOSS,CAM SENSOR

13061-1687

1
Out of stock

156

BOLT-WP,6X10

156R0610

1
Out of stock

21007

ROTOR,EX CAM

21007-3742

1
Out of stock

21007A

ROTOR,PULSING

21007-3744

1
Out of stock

21121

COIL-IGNITION

21121-0744

1
Out of stock

21150

CORD-ASSY,#1,L=340

21150-0006

1
Out of stock

21150A

CORD-ASSY,#2,L=450

21150-0007

1
Out of stock

21150B

CORD-ASSY,#3,L=540

21150-0008

1
Out of stock

21150C

CORD-ASSY,#4,L=600

21150-0009

1
Out of stock

21176

SENSOR

21176-1077

1
Out of stock

26011

WIRE-LEAD

26011-1905

1
Out of stock

411

WASHER-PLAIN,6MM

411S0600

1
Out of stock

59026

COIL-PULSING

59026-3702

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

92002

BOLT,6X16

92002-3728

1
Out of stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92015

NUT,LOCK,6MM

92015-3766

1
Out of stock

92037

CLAMP,HOSE

92037-1603

1
Out of stock

92043

PIN

92043-1575

1
Out of stock

92055

RING-O

92055-1639

1
Out of stock

92070

PLUG-SPARK,CR9EKB(NGK)

92070-0050

1
Out of stock

92070A

PLUG-SPARK,CR8EKB(NGK)

92070-0708

1
Out of stock

92072

BAND,L=188.85

92072-0105

1
Out of stock

92072A

BAND,L=152

92072-3874

1
Out of stock

92150

BOLT,6X18

92150-1645

1
Out of stock

92152

COLLAR

92152-3738

1
Out of stock

92154

BOLT,6X70

92154-4158

1
Out of stock

92173

CLAMP

92173-0742

1
Out of stock

92200

WASHER,8.0X22.0X1.5

92200-0174

1
Out of stock

92200A

WASHER,6.5X14X1

92200-1388

1
Out of stock
