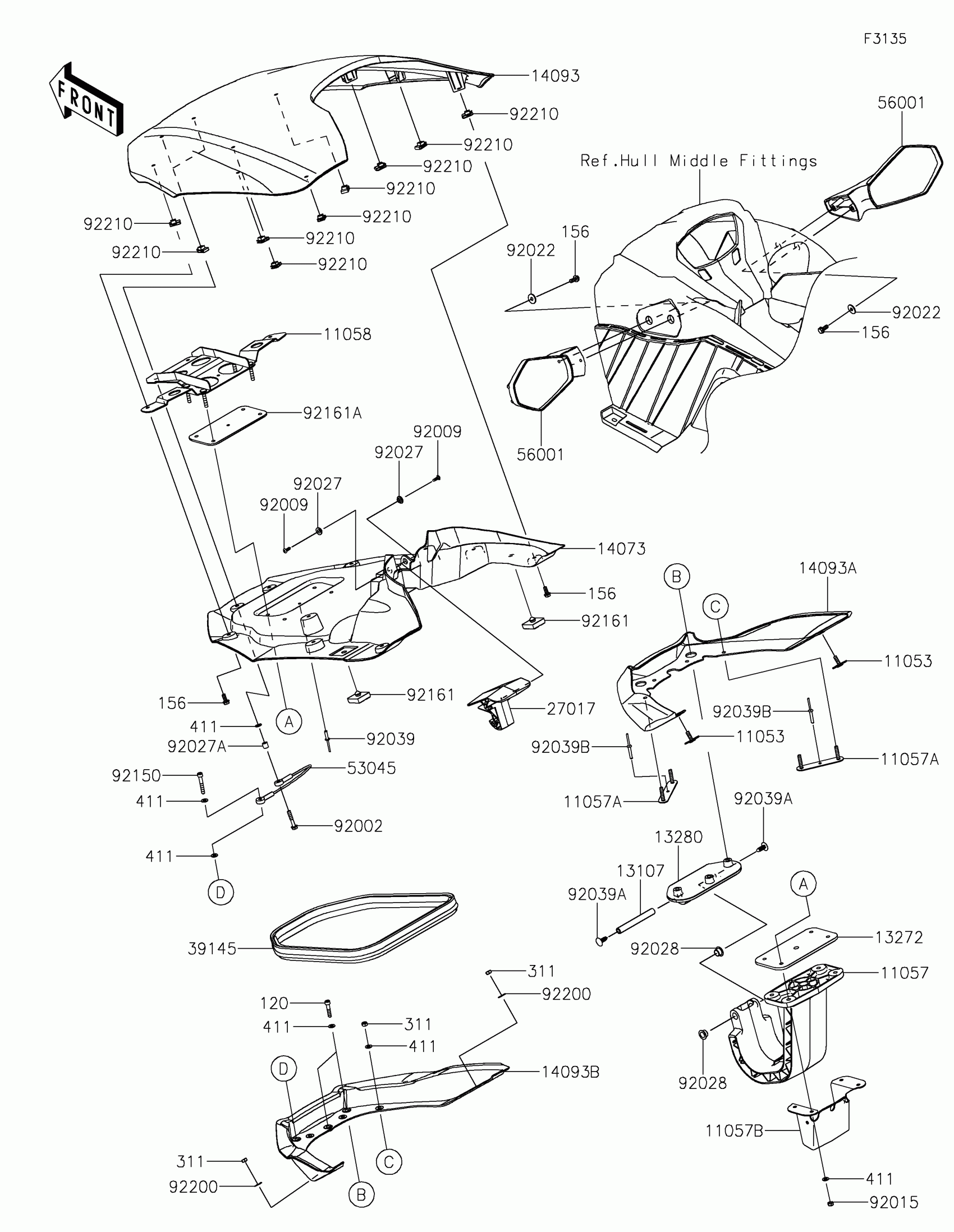

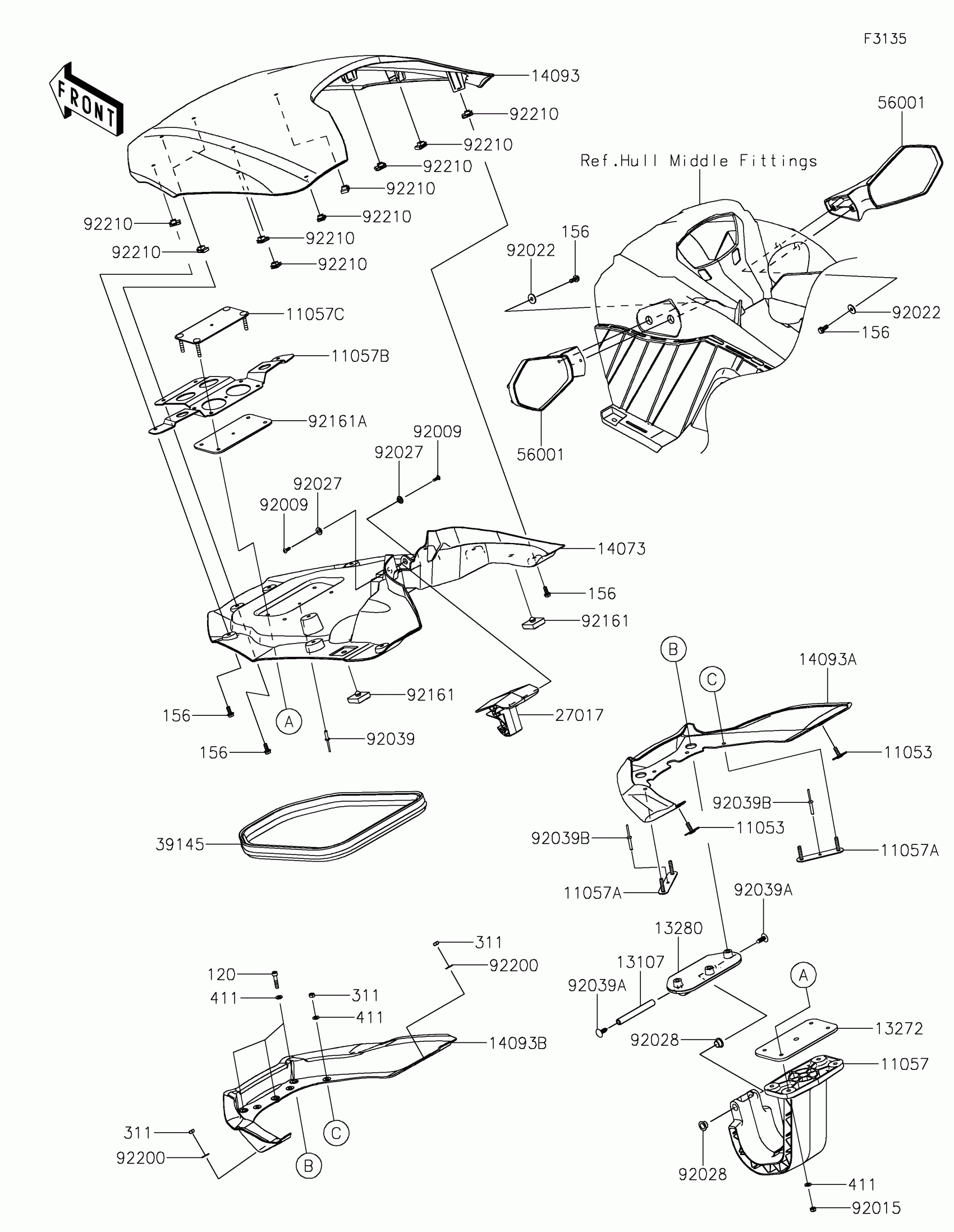

Kawasaki JET SKI® STX®160X Hull Front Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.48

11057

BRACKET

11057-2590

$39.25

11057A

BRACKET

11057-2645

$14.58

11057B

BRACKET

11057-7456

$99.01

11057C

BRACKET

11057-7460

$99.01

120

BOLT-SOCKET,6X30

120R0630

$4.39

13107

SHAFT,FRONT HINGE

13107-3802

$24.78

13272

PLATE

13272-3882

Unavailable

13280

HOLDER

13280-0952

$17.48

14073

DUCT,HATCH INNER

14073-0987

$139.41

14093

COVER,FR,HATCH,R.TURQUISE

14093-0895-66A

$141.83

14093A

COVER,TRIM,S.BLACK

14093-0896-839

$86.24

14093B

COVER,INNER

14093-1189

$19.26

156

BOLT-WP,6X16

156R0616

$3.65

27017

LOCK,FR,HATCH

27017-0555

$17.67

311

NUT-HEX,6MM

311R0600

$0.70

39145

TRIM-SEAL,FR,HATCH

39145-0718

$112.65

411

WASHER-PLAIN,6MM

411S0600

$2.06

56001

MIRROR-ASSY

56001-0410

$99.92

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92015

NUT,LOCK,6MM

92015-3766

$5.91

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92027

COLLAR,L=4.6

92027-1168

$5.00

92028

BUSHING

92028-3770

$2.71

92039

RIVET

92039-3783

$8.05

92039A

RIVET

92039-3788

$3.39

92039B

RIVET

92039-3794

$7.71

92161

DAMPER,10X34X10

92161-1920

$1.59

92161A

DAMPER

92161-2337

$4.52

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,6MM

92210-3768

$5.79
