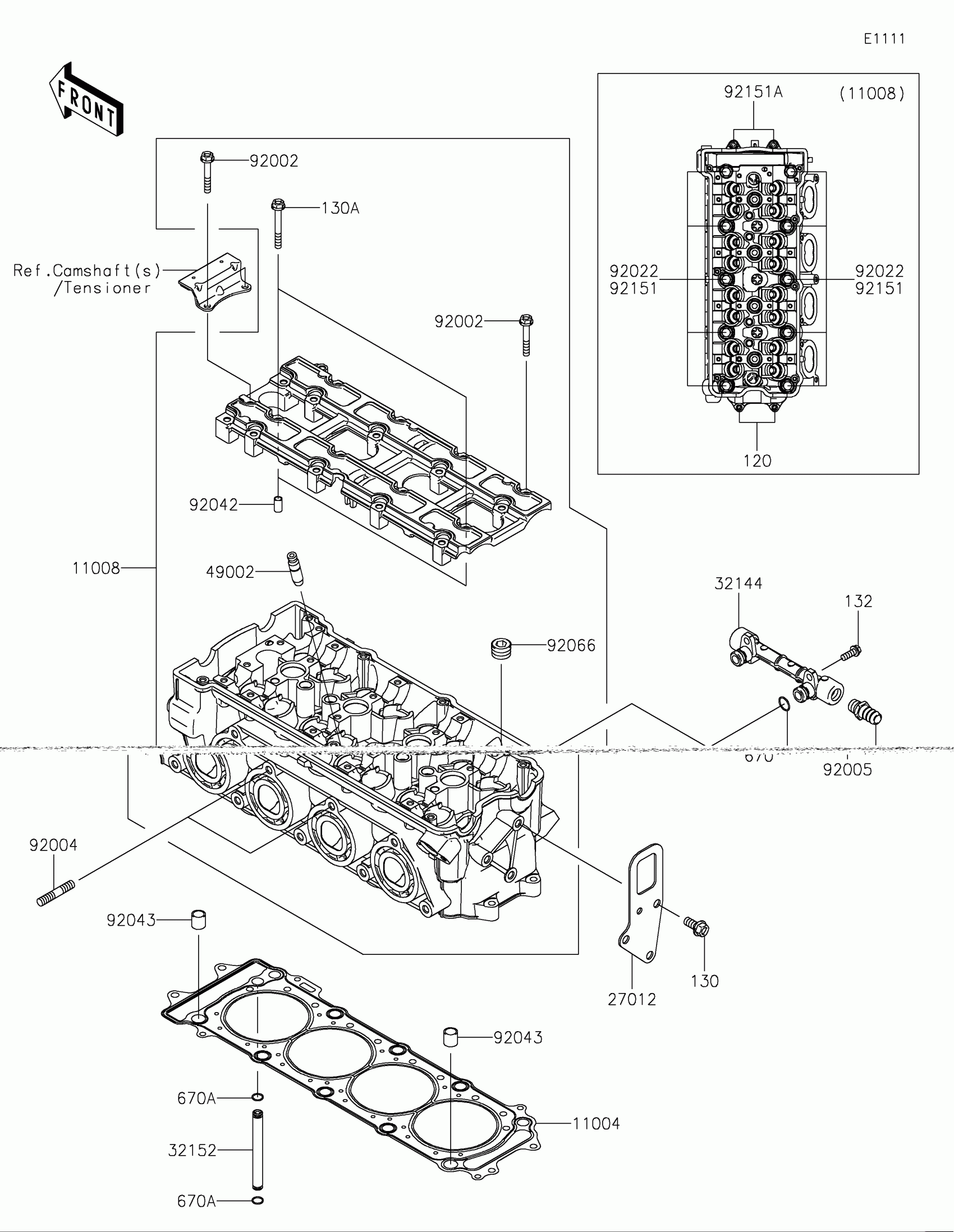

Kawasaki JET SKI® STX®160X Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-3721

$126.83

11008

HEAD-COMP-CYLINDER

11008-3709

$2,805.71

120

BOLT-SOCKET,6X30

120CD0630

$4.76

130

BOLT-FLANGED,8X18

130BD0818

$2.70

130A

BOLT-FLANGED,6X50

130CD0650

$4.87

132

BOLT-FLANGED-SMALL,6X16

132BD0616

$4.12

27012

HOOK,ENGINE,RR

27012-3863

$20.62

32144

PIPE-ASSY

32144-3709

$135.90

32152

PIPE,OIL

32152-1544

$13.28

49002

GUIDE-VALVE

49002-1140

$33.41

670

O RING,12MM

670B2012

$3.23

670A

O RING,7MM

670D1507

$1.70

92002

BOLT,6X40

92002-1756

$4.69

92004

STUD,8X30

92004-3743

$4.45

92005

FITTING

92005-3714

$18.72

92022

WASHER,11.5X20.5X1.6

92022-1720

$4.31

92033

RING-SNAP

92033-1247

$3.91

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,14X14

92043-1593

$6.67

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92151

BOLT,11X168

92151-1513

$17.76

92151A

BOLT,SOCKET,7X120

92151-1804

$11.63
