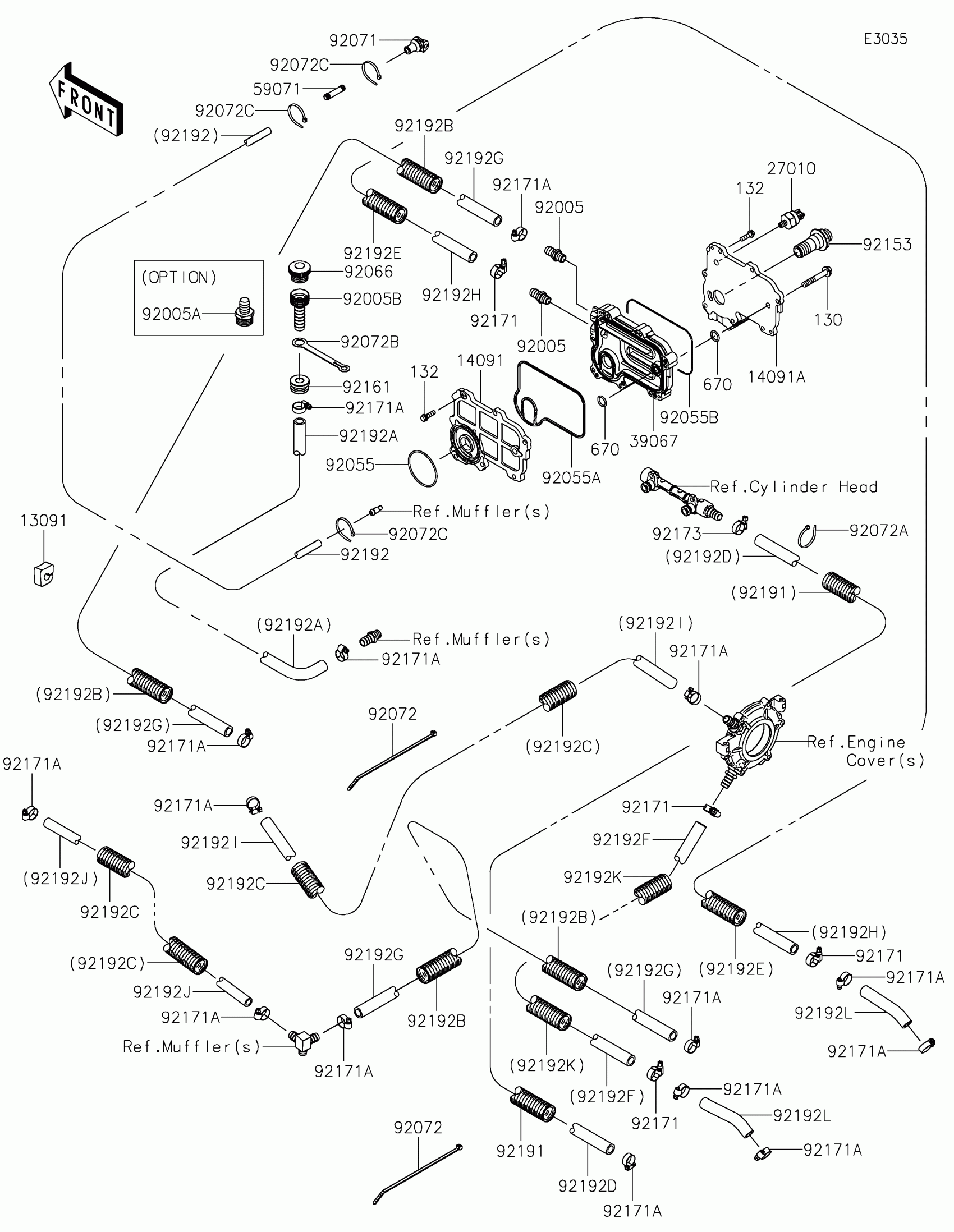

Kawasaki JET SKI® STX® 160X Cooling Diagram
#
13091
HOLDER
13091-3712
$4.65
14091
COVER,INSIDE
14091-3755
$85.68
14091A
COVER,OUTSIDE
14091-3756
$85.68
27010
SWITCH,OIL PRESSURE
27010-0918
$67.73
39067
COOLER-OIL
39067-3704
$259.71
59071
JOINT
59071-3764
$7.64
92005
FITTING
92005-3714
$18.72
92005A
FITTING,FLUSH
92005-3748
$9.68
92005B
FITTING,FLUSH
92005-3757
$15.89
92055
RING-O,58X3
92055-3767
$6.18
92055A
RING-O
92055-3770
$21.99
92055B
RING-O
92055-3772
$13.06
92066
PLUG
92066-3787
$11.84
92071
GROMMET
92071-3815
$5.46
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,L=152
92072-3874
$4.18
92072B
BAND
92072-3877
$5.65
92072C
BAND,L=100.08
92072-3882
$2.02
92153
BOLT,OIL COOLER
92153-3713
$27.52
92161
DAMPER
92161-1331
$3.26
92171
CLAMP
92171-3701
$7.43
92171A
CLAMP
92171-3714
$9.49
92173
CLAMP
92173-1482
$16.35
92191
TUBE,CORRUGATED,19.5X23.8X500
92191-3884
$3.89
92192
TUBE,7X12X1590
92192-1514
$17.90
92192A
TUBE,EXHAUST MANIFOLD-FLUSH
92192-2272
$13.75
92192B
TUBE,CORRUGATED,19.5X23.8X900
92192-3711
$5.42
92192C
TUBE,CORRUGATED,19.5X23.8X380
92192-3714
$2.67
92192D
TUBE,12X18X630
92192-3716
$55.90
92192E
TUBE,CORRUGATED,19.5X23.8X1400
92192-3732
$7.80
92192F
TUBE,GENERATOR-HULL
92192-3739
$54.68
92192G
TUBE,12X18X1000
92192-3740
$26.47
92192H
TUBE,12X18X1520
92192-3741
$35.29
92192I
TUBE,12X18X480
92192-3742
$13.28
92192J
TUBE,12X18X450
92192-3745
$13.28
92192K
TUBE,CORRUGATED,L=600M
92192-3751
$3.82
92192L
TUBE,PUMP-HULL
92192-3789
$6.88
130
BOLT-FLANGED,8X50
130BD0850
$4.69
132
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
670
O RING,14MM
670D2014
$5.52
