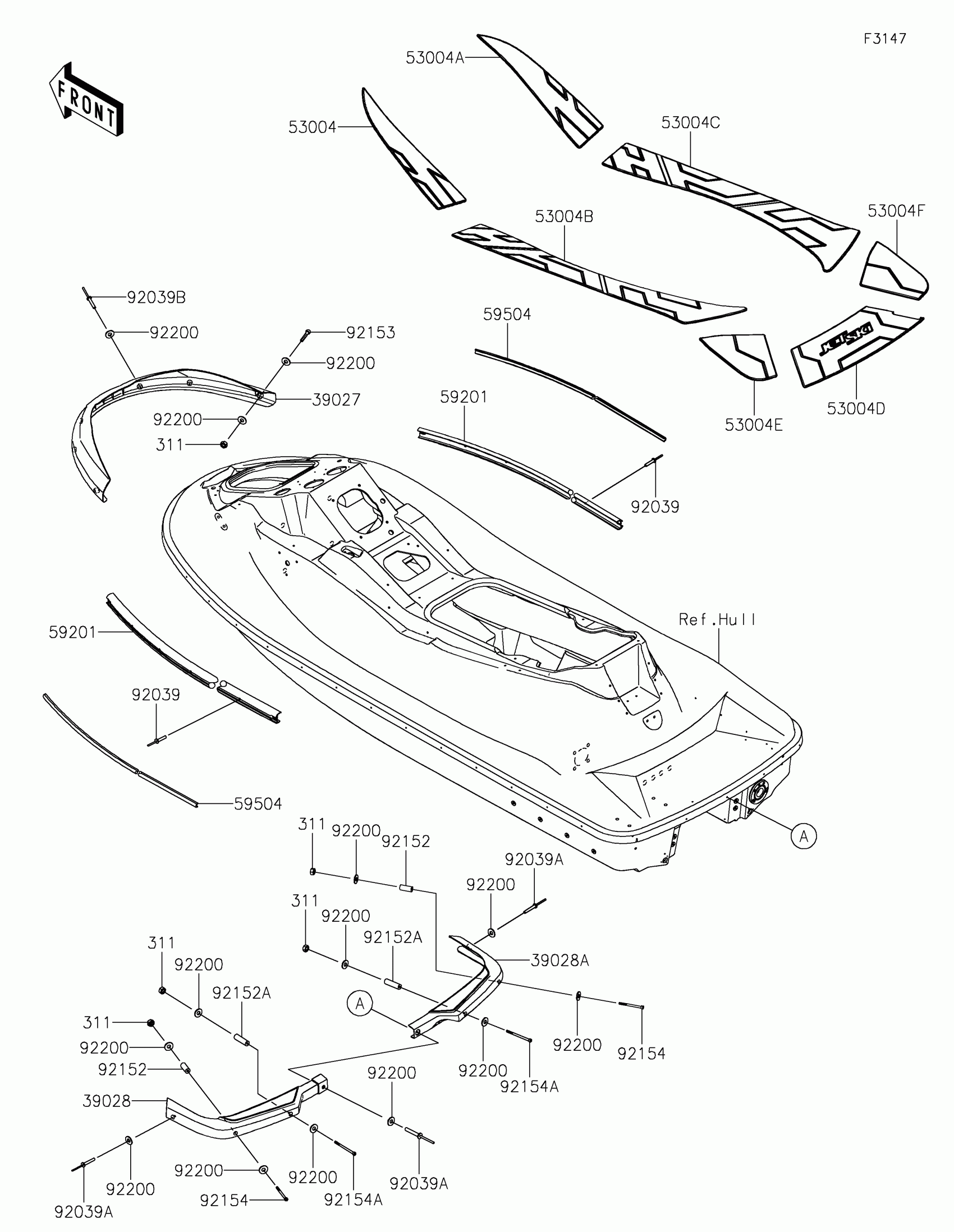

Kawasaki JET SKI® STX® 160LX Pads Diagram

Description

Price

39027

BUMPER-FRONT,F.BLACK

39027-0002-6Z

$93.18

39028

BUMPER-REAR,LH,F.BLACK

39028-0003-6Z

$23.58

39028A

BUMPER-REAR,RH,F.BLACK

39028-0004-6Z

$23.58

53004

MAT,FR,LH

53004-0648

$32.22

53004A

MAT,FR,RH

53004-0649

$32.22

53004B

MAT,MID,LH

53004-0650

$110.22

53004C

MAT,MID,RH

53004-0651

$110.22

53004D

MAT,RR,CNT

53004-0652

$58.36

53004E

MAT,RR,LH

53004-0653

$28.47

53004F

MAT,RR,RH

53004-0654

$28.47

59201

BUMPER,SIDE,F.BLACK

59201-0002-6Z

$162.44

59504

INSERT-BOAT FENDER,SIDE,N.RED

59504-0001-72V

$67.73

92039

RIVET

92039-3771

$0.95

92039A

RIVET

92039-3773

$1.08

92039B

RIVET

92039-3794

$7.71

92152

COLLAR,5.5X14X33

92152-2593

$15.52

92152A

COLLAR,5.5X14X48

92152-2594

$18.55

92153

BOLT,SOCKET,5X30

92153-3742

$2.97

92154

BOLT,SOCKET,5X65

92154-3998

$3.86

92154A

BOLT,SOCKET,5X80

92154-3999

$5.31

92200

WASHER,5X12X1

92200-3796

$2.15

311

NUT-HEX,5MM

311R0500

$1.75
