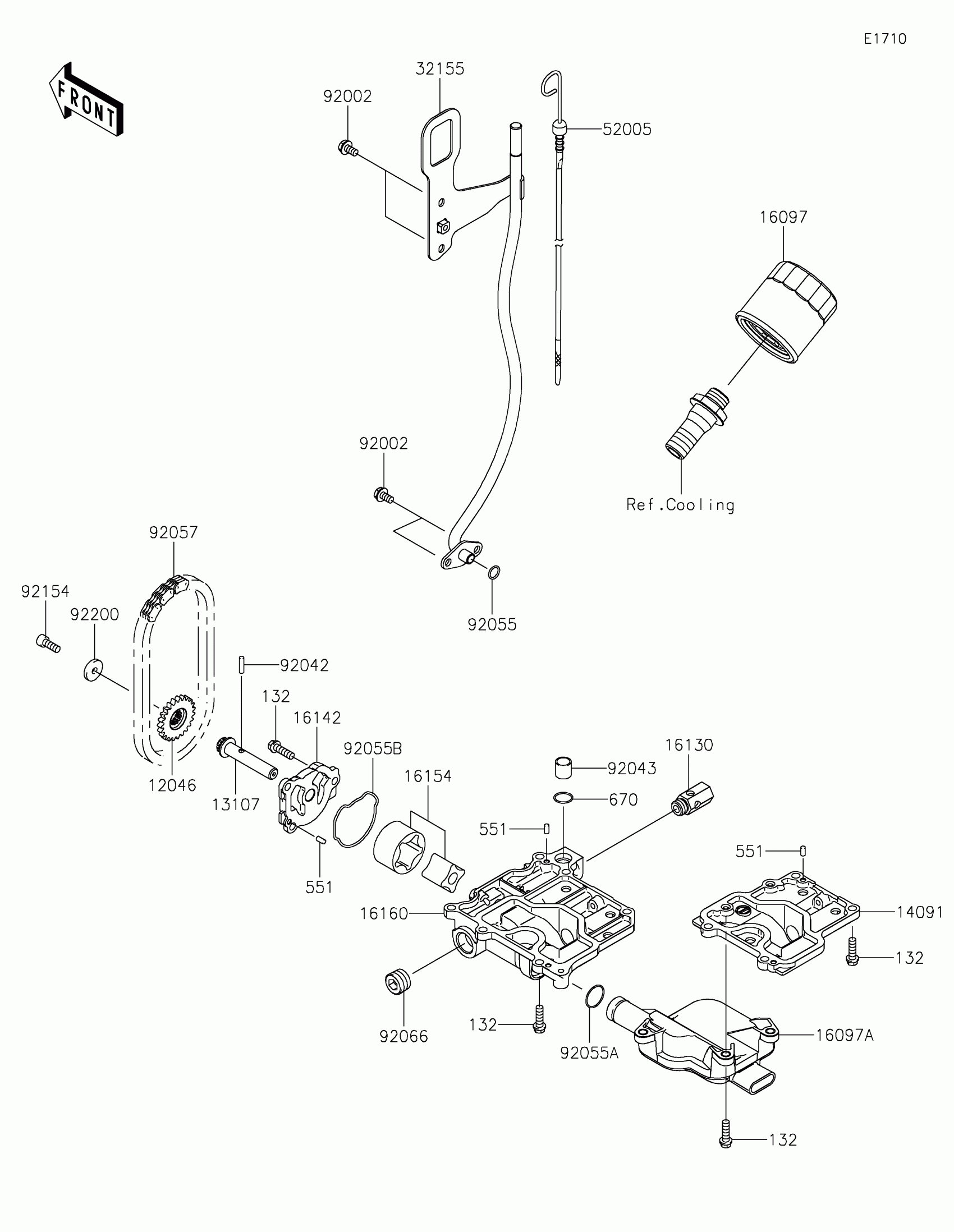

Kawasaki JET SKI® STX® 160LX Oil Pump Diagram
#
Description
Price
12046
SPROCKET,23T
12046-3708
$18.92
13107
SHAFT
13107-0730
$47.72
14091
COVER
14091-3767
$77.11
16097
FILTER-ASSY-OIL
16097-0007
$15.48
16097A
FILTER-ASSY-OIL
16097-3702
$51.51
16130
VALVE-ASSY-RELIEF
16130-3701
$46.98
16142
COVER-PUMP
16142-3703
$37.56
16154
ROTOR-PUMP
16154-1124
$70.09
16160
BODY,OIL PUMP
16160-0705
$129.40
32155
PIPE,OIL LEVEL
32155-2149
$181.20
52005
GAUGE,OIL LEVEL
52005-3710
$66.67
92002
BOLT,6X12
92002-3763
$4.69
92042
PIN,DOWEL,4X15.8
92042-014
$0.43
92043
PIN,11.5X14X14
92043-1279
$5.00
92055
RING-O,9.8X2.4
92055-1150
$8.10
92055A
RING-O,19.8X1.9
92055-1332
$4.69
92055B
RING-O
92055-3764
$6.57
92057
CHAIN,OIL PUMP,98XRH2010-52L
92057-3713
$28.19
92066
PLUG,PT1/2X12.5
92066-0002
$8.98
92154
BOLT,SOCKET,6X16
92154-3709
$1.94
92200
WASHER,6X20X3.2
92200-0120
$2.12
132
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
551
PIN-DOWEL
551R0408
$5.38
670
O RING,14MM
670D2014
$5.52
