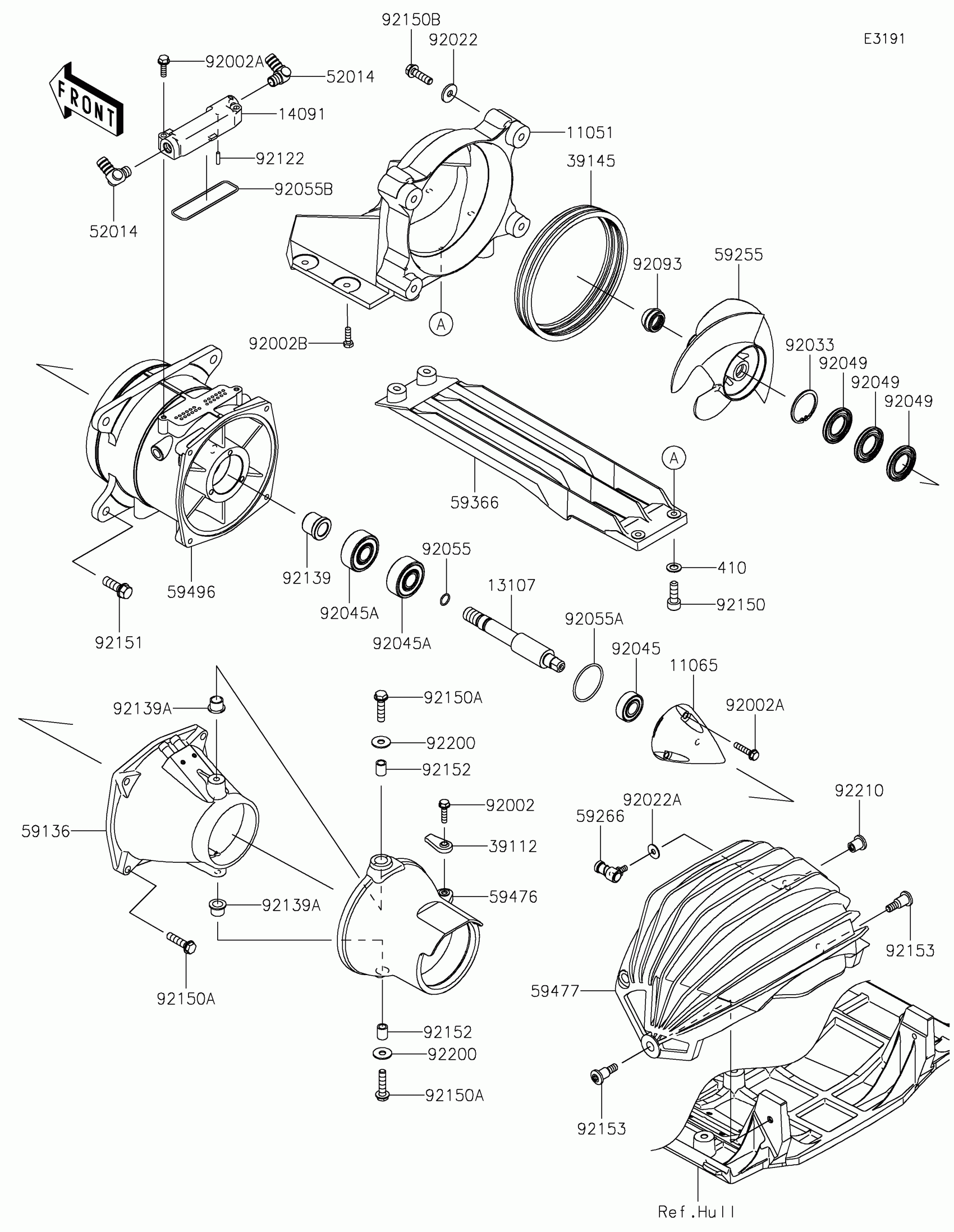

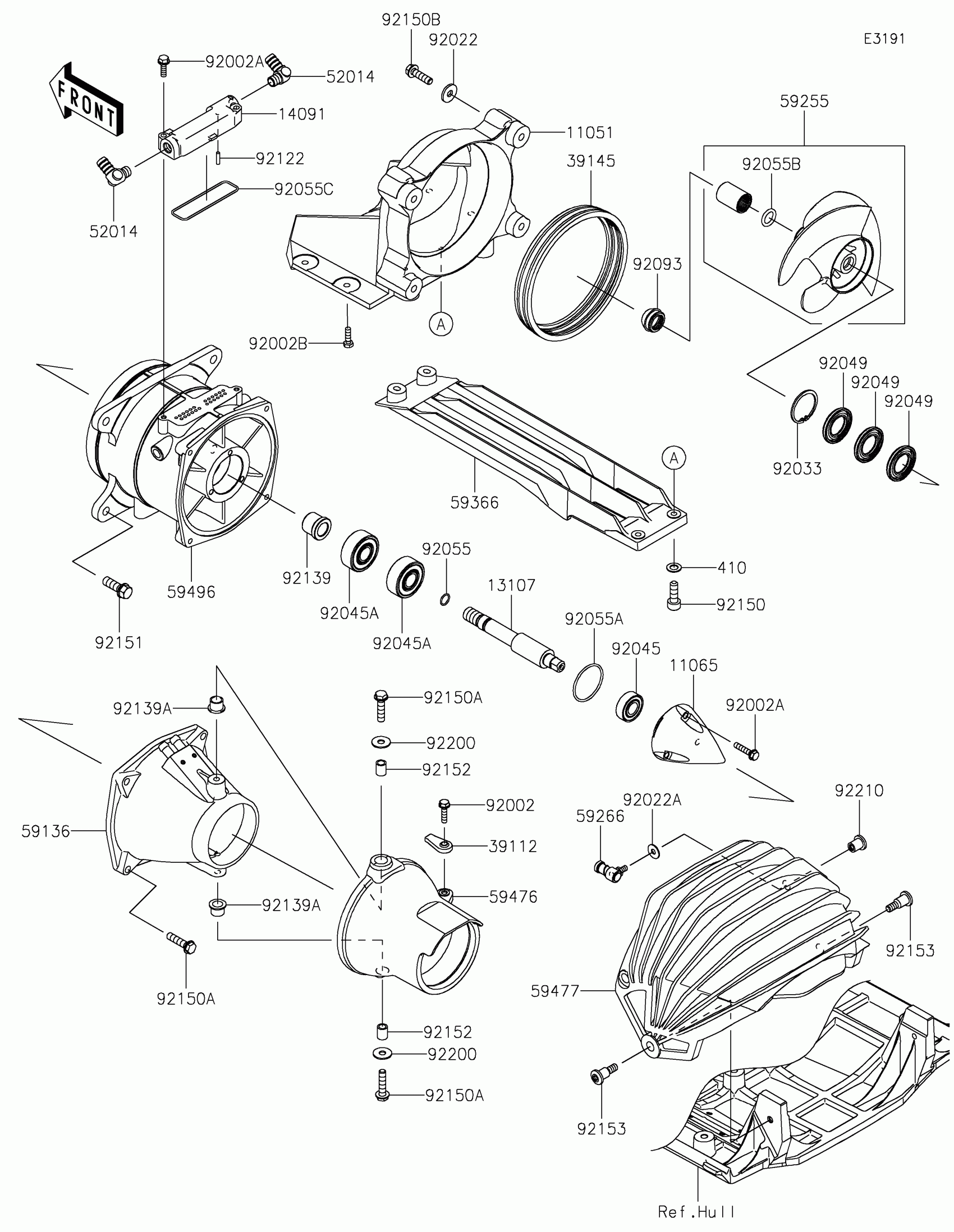

Kawasaki JET SKI® STX®160LX Jet Pump Diagram

#

Description
Price

11051

BRACKET

11051-3763

$513.91

11065

CAP

11065-0828

$58.76

13107

SHAFT

13107-0765

$112.51

14091

COVER,VANE GUIDE

14091-3817

$29.40

39112

RODEND-TIE

39112-3703

$20.69

39145

TRIM-SEAL

39145-3742

$41.39

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

52014

ELBOW

52014-3711

$30.70

59136

NOZZLE-PUMP

59136-3760

$157.70

59255

IMPELLER-COMP

59255-3729

$536.22

59266

JOINT-BALL

59266-3707

$60.75

59366

GRATE

59366-3719

$195.52

59476

NOZZLE-STRG

59476-3743

$296.20

59477

BUCKET-REVERSE

59477-0001

$235.75

59496

VANE-GUIDE

59496-0001

$429.97

92002

BOLT,6X25

92002-3714

$3.97

92002A

BOLT,6X30

92002-3726

$3.72

92002B

BOLT,6X20

92002-3755

$3.72

92022

WASHER,8.4X23X2.5

92022-3744

$3.33

92022A

WASHER

92022-567

$2.19

92033

RING-SNAP

92033-3730

$7.24

92045

BEARING-BALL,62022RD

92045-3721

$18.00

92045A

BEARING-BALL,6303R-6

92045-3740

$37.13

92049

SEAL-OIL

92049-3739

$26.46

92055

RING-O,12X1.5

92055-025

$3.72

92055A

RING-O

92055-3741

$2.66

92055B

RING-O,66.5X2.0

92055-3784

$5.93

92093

SEAL

92093-3749

$3.94

92122

ROLLER

92122-0044

$4.85

92139

BUSHING

92139-0718

$36.25

92139A

BUSHING

92139-3720

$7.00

92150

BOLT,SOCKET,6X18

92150-3775

$3.72

92150A

BOLT,8X35

92150-3792

$5.84

92150B

BOLT,FLANGED,8X30

92150-3803

$5.84

92151

BOLT,10X30

92151-3706

$5.71

92152

COLLAR,8.2X11.8X15

92152-3703

$6.11

92153

BOLT,SOCKET,8X30

92153-3745

$13.35

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.15

92210

NUT,6MM

92210-3789

$19.42
