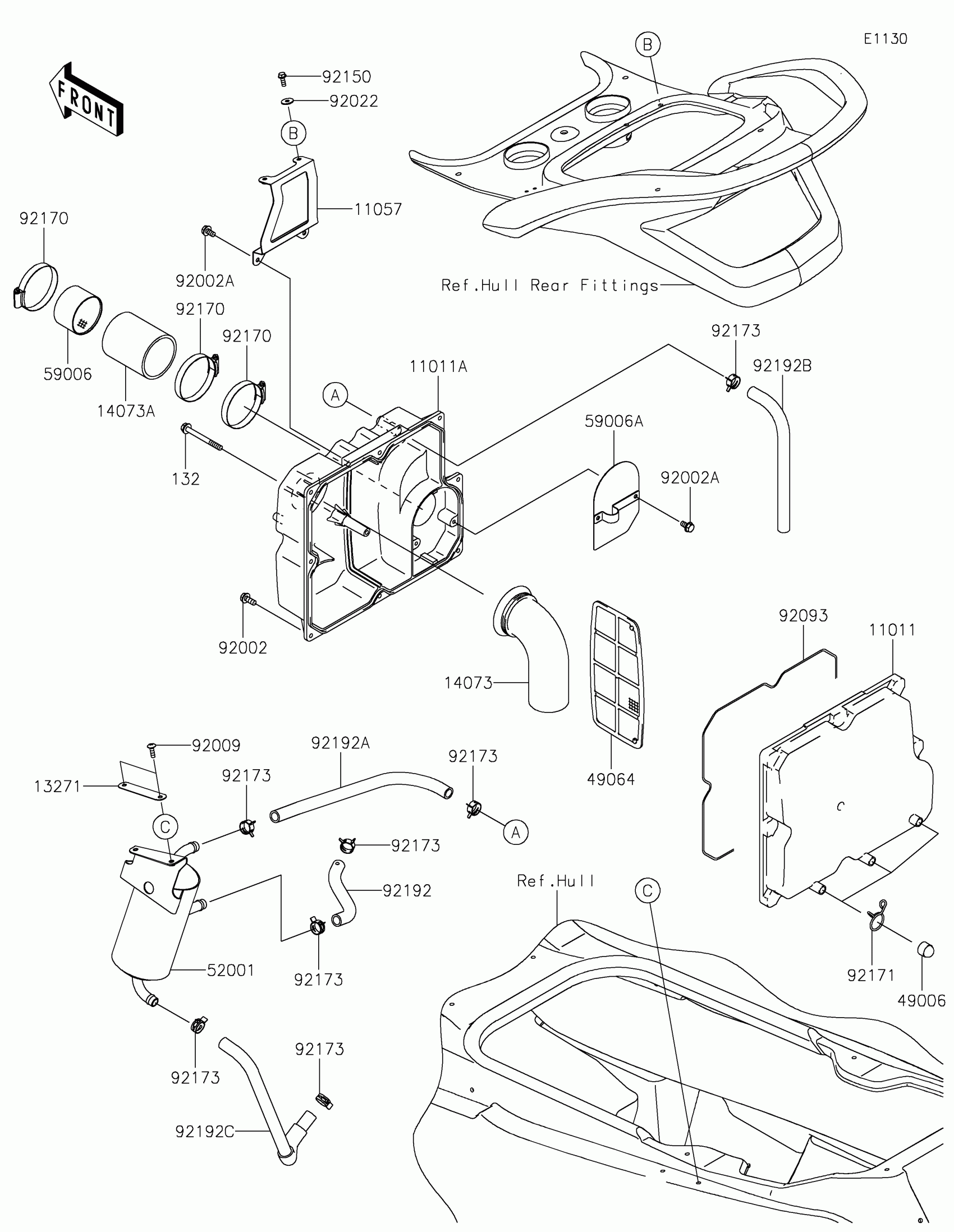

Kawasaki JET SKI® STX®160LX Intake Silencer Diagram

Description

Price

11011

CASE-AIR FILTER,RR

11011-3704

$117.94

11011A

CASE-AIR FILTER,FR

11011-3706

Unavailable

11057

BRACKET

11057-2555

$10.90

132

BOLT-FLANGED-SMALL,6X60

132BD0660

$4.63

13271

PLATE

13271-3880

$4.42

14073

DUCT,AIR INLET

14073-3794

$16.56

14073A

DUCT,AIR FILTER-THOROTTLE

14073-3795

$4.88

49006

BOOT,DRAIN

49006-3718

$4.94

49064

FILTER-AIR

49064-3702

$21.73

52001

TANK-OIL,SEPARATOR

52001-0012

$93.81

59006

ARRESTER-FLAME

59006-0019

$310.35

59006A

ARRESTER-FLAME

59006-3720

$44.65

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X12

92002-3763

$3.57

92009

SCREW,6X20

92009-3870

$3.92

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92093

SEAL

92093-3766

$2.71

92150

BOLT,6X18

92150-3729

$3.57

92170

CLAMP

92170-3764

$9.95

92171

CLAMP,BOOT

92171-3711

$3.37

92173

CLAMP

92173-1039

$2.11

92192

TUBE,HEAD-SEPARATOR

92192-1081

$8.69

92192A

TUBE,OIL TANK-AIR CLEANER

92192-1705

$10.08

92192B

TUBE,BLOWBY

92192-3725

$23.71

92192C

TUBE,OIL TANK-OIL PAN

92192-3808

Unavailable
