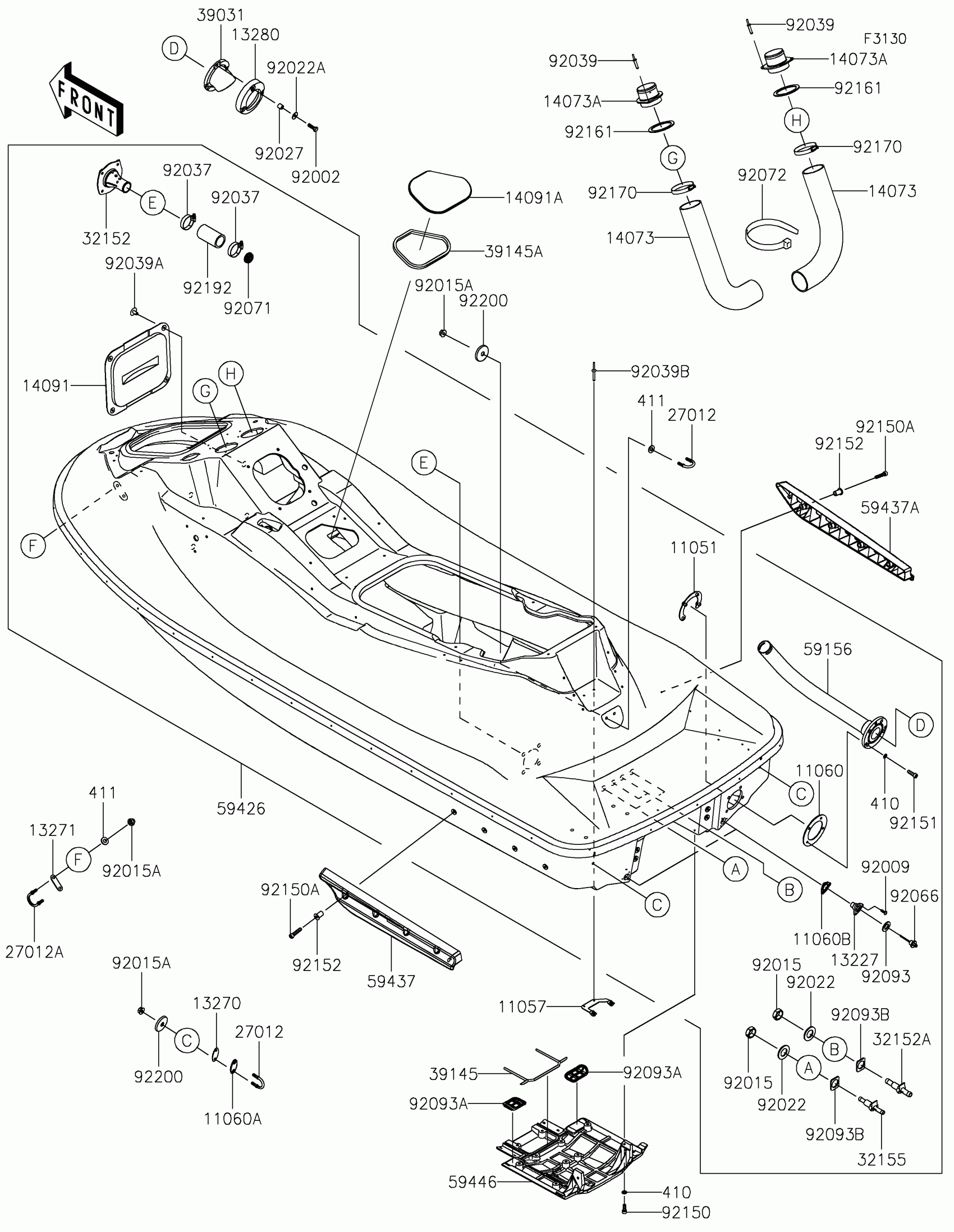

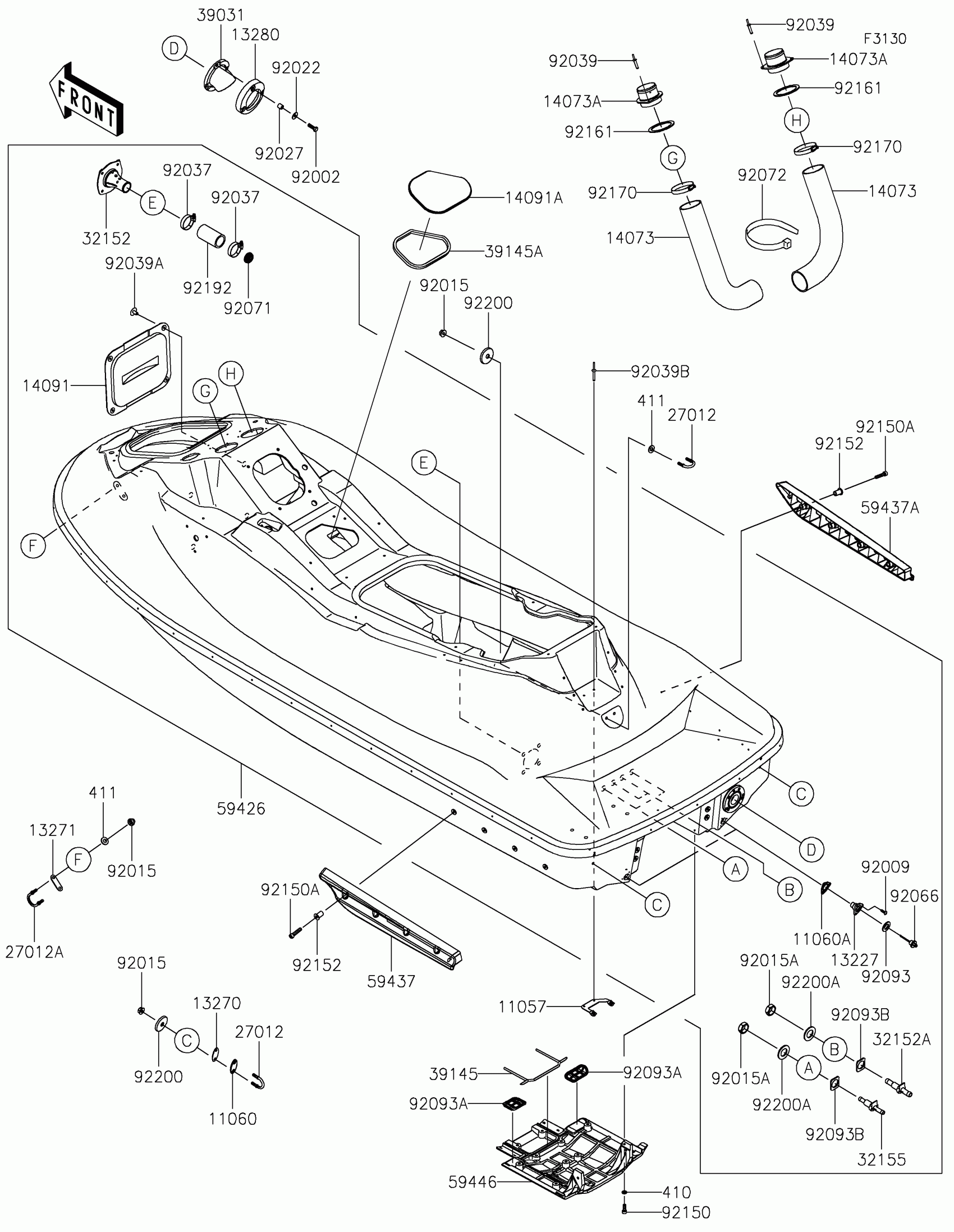

Kawasaki JET SKI® STX®160LX Hull Diagram

#

Description
Price

11051

BRACKET

11051-3731

$35.02

11057

BRACKET,BREATHER

11057-2807

$8.56

11060

GASKET

11060-3781

$5.46

11060A

GASKET,U HOOK,RR

11060-3800

$4.91

11060B

GASKET,DRAIN PLUG

11060-3801

$5.24

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$6.34

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13280

HOLDER,EXHAUST VALVE

13280-3718

$25.92

14073

DUCT

14073-0868

$15.81

14073A

DUCT

14073-3805

$5.76

14091

COVER,ECU

14091-3786

$15.00

14091A

COVER,CNT ACCESS

14091-3800

$6.76

27012

HOOK

27012-3797

$32.91

27012A

HOOK

27012-3821

$25.59

32152

PIPE,DRIVE SHAFT

32152-3703

$47.25

32152A

PIPE

32152-3749

$5.61

32155

PIPE,COOLING

32155-1511

$5.61

39031

CAP-END

39031-3704

$41.65

39145

TRIM-SEAL,JET PUMP COVER

39145-3768

$30.81

39145A

TRIM-SEAL,8.5X11X592

39145-3800

$15.46

59156

PIPE-TAIL

59156-3740

$243.05

59426

HULL-COMP,BLACK

59426-0014-650

$4,685.54

59437

STABILIZER,LH,F.BLACK

59437-3745-6Z

$63.63

59437A

STABILIZER,RH,F.BLACK

59437-3746-6Z

$63.63

59446

COVER-JET PUMP

59446-0078

$367.93

92002

BOLT,6X20

92002-3755

$3.72

92009

SCREW,TAPPING,4X16

92009-3849

$1.39

92015

NUT,20MM

92015-1589

$5.88

92015A

NUT,FLANGED,8MM

92015-1933

$3.12

92022

WASHER,20.3X36X2.3

92022-1116

$6.82

92022A

WASHER

92022-567

$2.19

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92037

CLAMP

92037-3009

$3.25

92039

RIVET

92039-3775

$1.46

92039A

RIVET

92039-3785

$3.69

92039B

RIVET

92039-3794

$6.13

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$13.75

92071

GROMMET

92071-1259

$5.19

92072

BAND,L=608.22

92072-3884

$2.66

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

411

WASHER-PLAIN,8MM

411S0800

$2.49

92093

SEAL

92093-3720

$2.92

92093A

SEAL

92093-3765

$14.10

92093B

SEAL

92093-3784

$3.10

92150

BOLT,SOCKET,6X18

92150-3775

$3.72

92150A

BOLT,SOCKET,6X30

92150-3822

$3.43

92151

BOLT,SOCKET,6X20

92151-3774

$1.56

92152

COLLAR

92152-3715

$8.20

92161

DAMPER

92161-3769

$3.37

92170

CLAMP

92170-1679

$5.95

92192

TUBE,39X51X90

92192-1511

$12.58

92200

WASHER

92200-3779

$4.66
