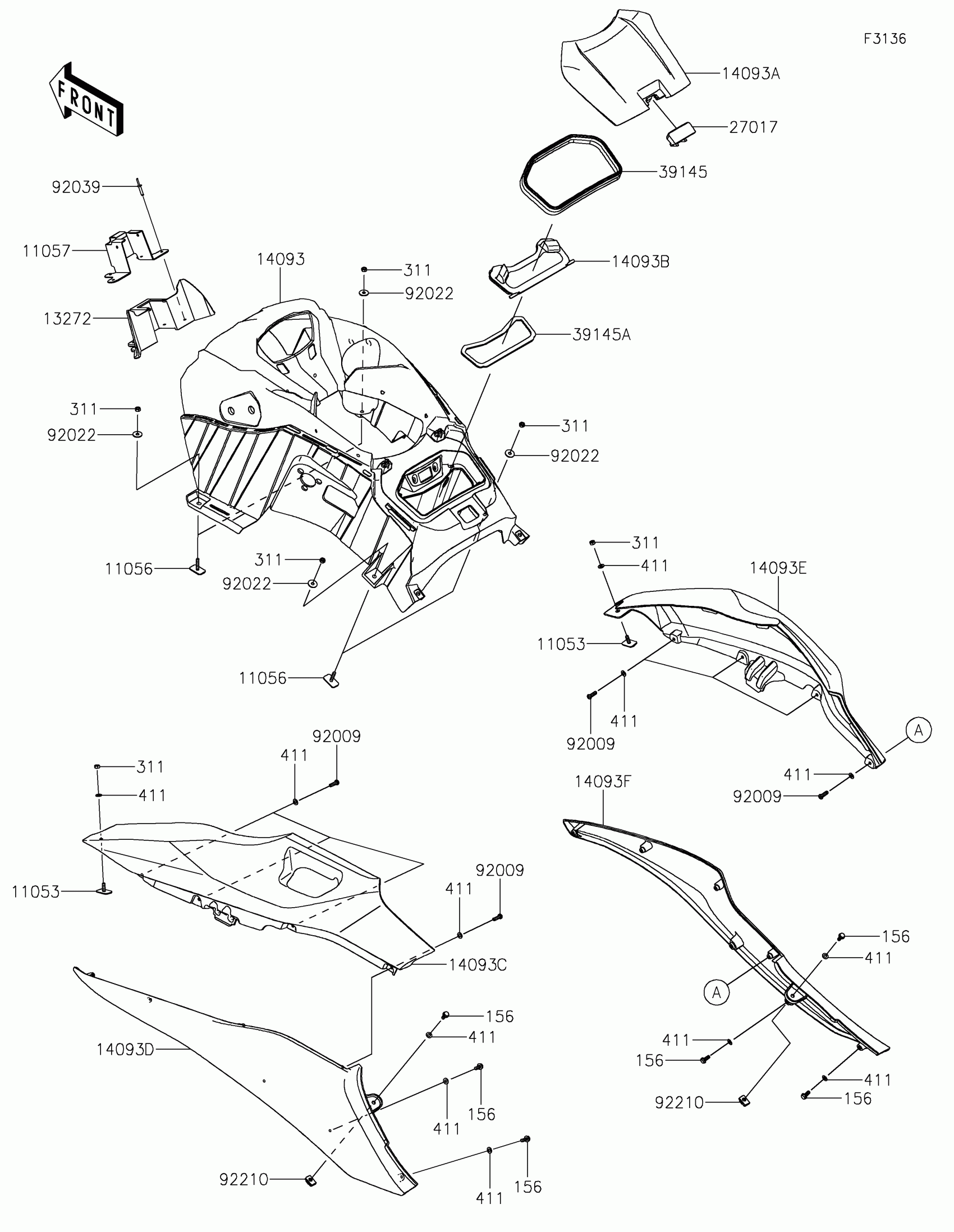

Kawasaki JET SKI® STX® 160LX Hull Middle Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.48

11056

BRACKET

11056-3724

$5.05

11057

BRACKET

11057-7457

$51.62

13272

PLATE

13272-2736

$9.31

14093

COVER,METER

14093-0881

$136.16

14093A

COVER,CNT STRAGE,EBONY

14093-0884-H8

$61.37

14093B

COVER,INNER,CNT

14093-0885

$11.85

14093C

COVER,LH,UPP,EBONY

14093-0887-H8

$239.18

14093D

COVER,LH,LWR,N.RED

14093-0889-72A

$239.17

14093E

COVER,RH,UPP,EBONY

14093-0891-H8

$239.18

14093F

COVER,RH,LWR,N.RED

14093-0893-72A

$239.17

27017

LOCK,CNT STRAGE

27017-0554

$2.94

39145

TRIM-SEAL,STRAGE,CNT

39145-0716

$46.79

39145A

TRIM-SEAL,INNER,CNT

39145-0717

$3.68

92009

SCREW,TAPPING,6X20

92009-3842

$1.83

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92039

RIVET

92039-3771

$0.95

92210

NUT,6MM

92210-3768

$5.79

156

BOLT-WP,6X16

156R0616

$3.65

311

NUT-HEX,6MM

311R0600

$0.70

411

WASHER-PLAIN,6MM

411S0600

$2.06
