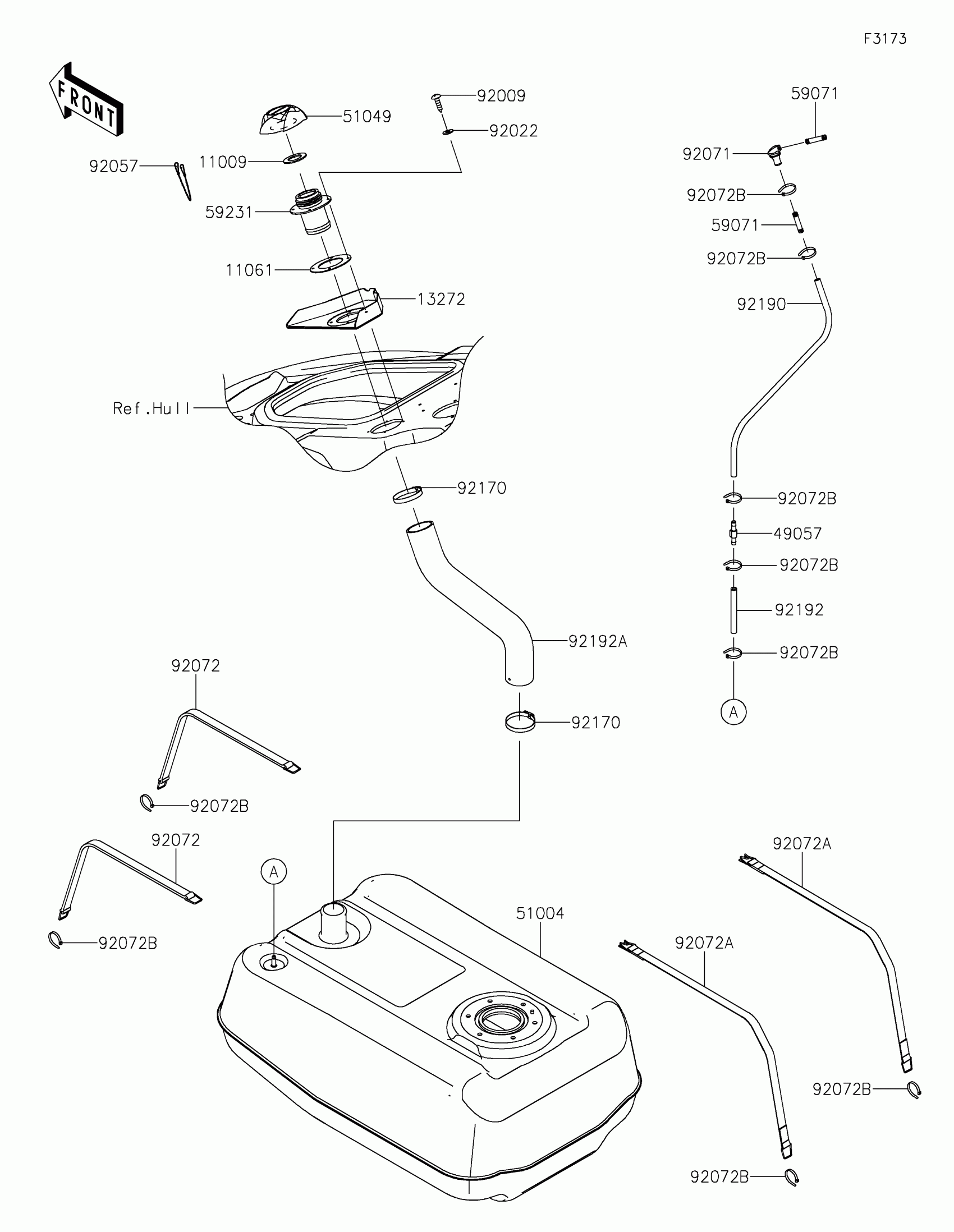

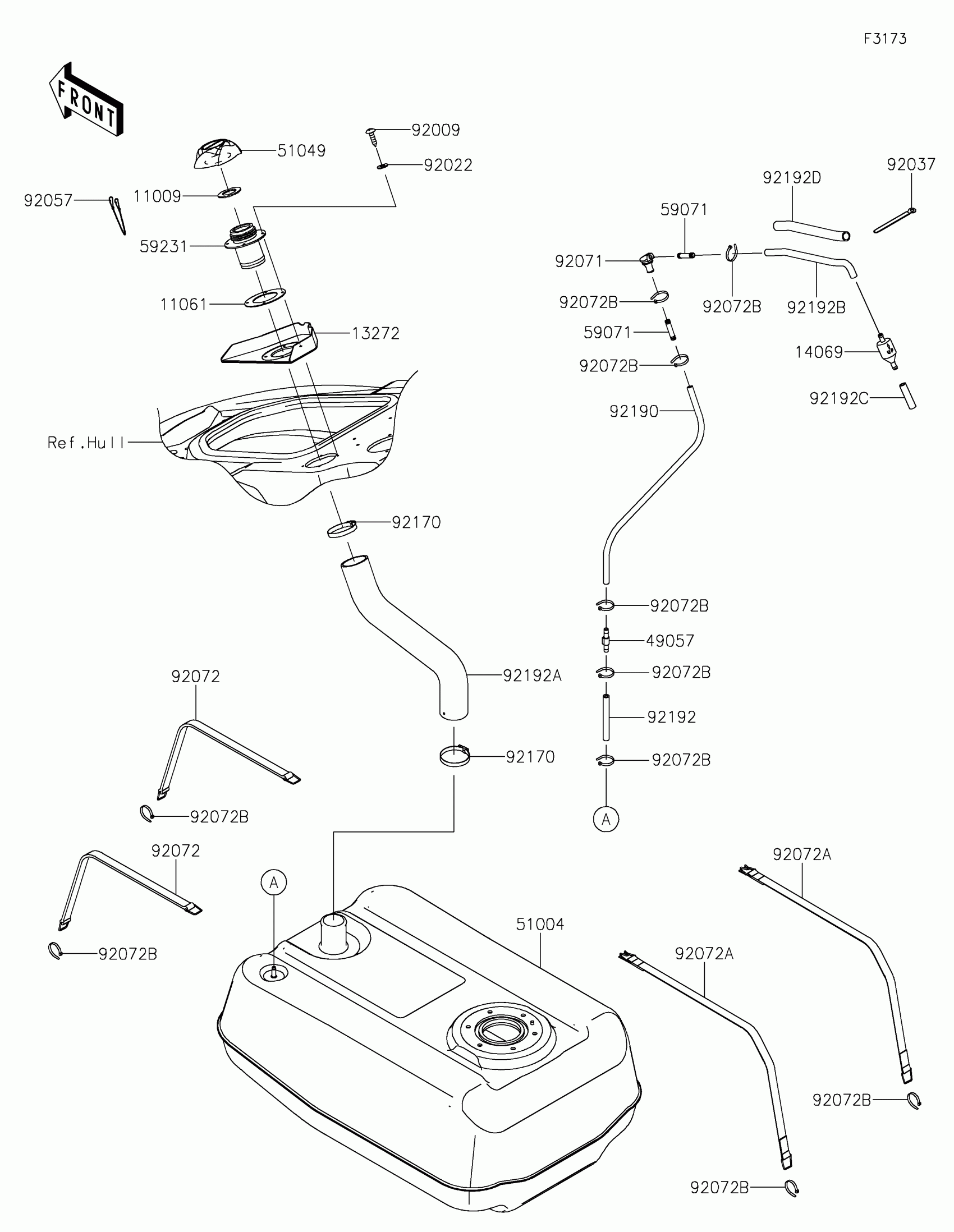

Kawasaki JET SKI® STX® 160LX Fuel Tank Diagram

Description

Price

11009

GASKET,TANK CAP

11009-3020

$13.51

11061

GASKET

11061-3701

$14.16

13272

PLATE,FUEL-GUARD

13272-4326

$9.31

14069

BREATHER,FUEL TANK

14069-1004

$10.19

49057

VALVE-RELIEF

49057-0002

$64.85

51004

TANK-FUEL

51004-0041

$324.03

51049

CAP-TANK,FUEL

51049-0712

$23.72

59071

JOINT

59071-3764

$7.64

59231

FILLER,FUEL TANK

59231-3734

$16.09

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92022

WASHER

92022-563

$1.13

92037

CLAMP,L=100

92037-3736

$5.52

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92071

GROMMET

92071-3841

$7.31

92072

BAND

92072-3845

$18.53

92072A

BAND

92072-3850

$48.63

92072B

BAND,L=100.08

92072-3882

$2.02

92170

CLAMP

92170-1674

$11.76

92190

TUBE,5.8X10.8X500

92190-3846

$22.46

92192

TUBE,5.8X11X100

92192-1795

$18.56

92192A

TUBE,FUEL TANK-FILLER

92192-1988

$123.72

92192B

TUBE,BREATHER

92192-2519

$4.48

92192C

TUBE,BREATHER,7.5X12.5X50

92192-2520

$1.72

92192D

TUBE,CORRUGATE

92192-3708

$4.71
