2020 Kawasaki JET SKI® STX®160 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

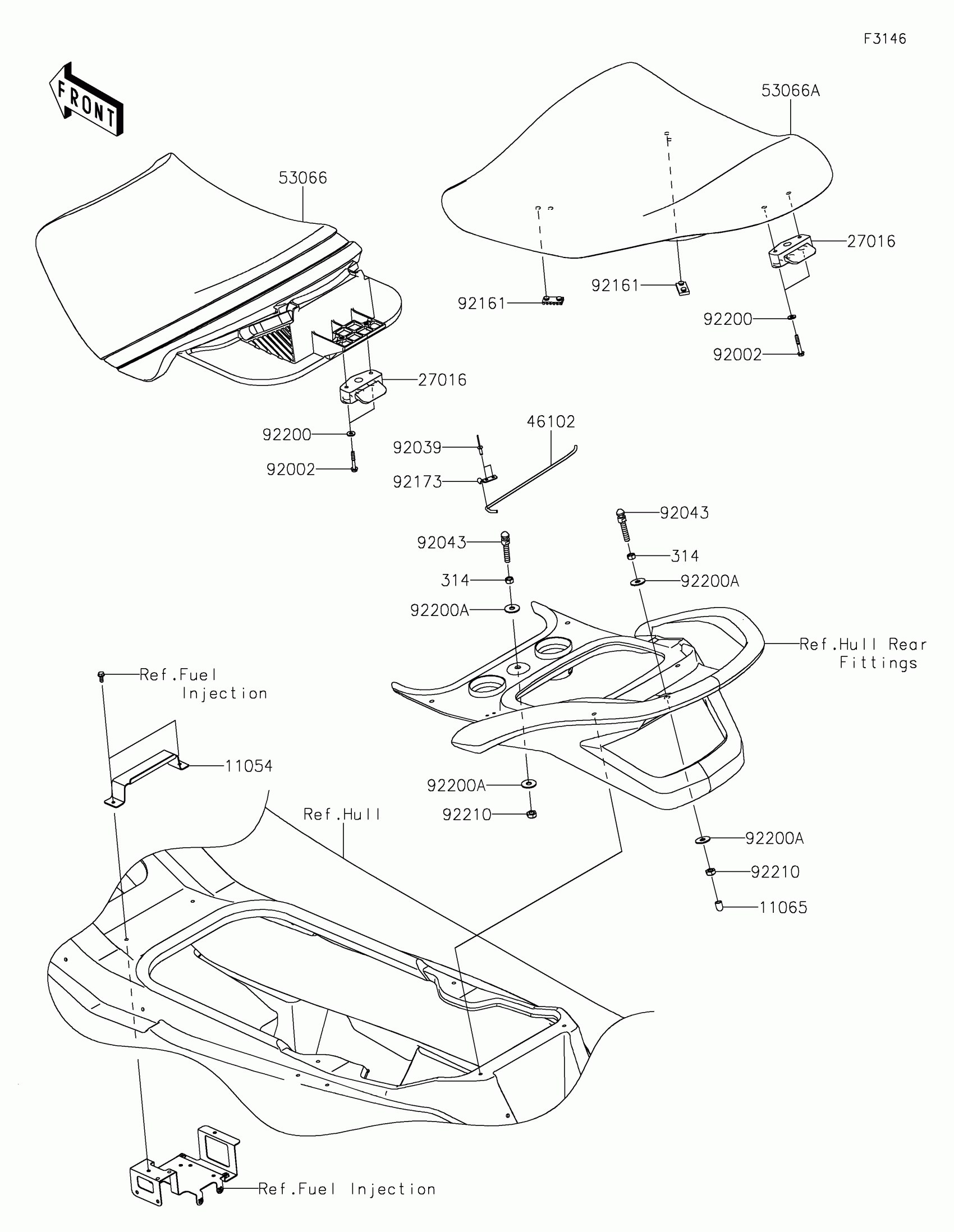

2020 Kawasaki JET SKI® STX®160 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,FRONT SEAT

11054-3702

1

$41.62

In stock

11065

CAP

11065-1347

1
Out of stock

27016

LOCK-ASSY,SEAT

27016-3758

1
Out of stock

314

NUT-HEX-FINE,10MM

314R1000

1
Out of stock

46102

ROD

46102-0639

1
Out of stock

53066

SEAT-ASSY,FR,BLACK+BLK

53066-0682-12Y

1
Out of stock

53066A

SEAT-ASSY,RR,BLACK

53066-0684-MA

1
Out of stock

92002

BOLT,6X40

92002-3716

1
Out of stock

92039

RIVET

92039-3714

1
Out of stock

92043

PIN

92043-3763

1
Out of stock

92161

DAMPER,SEAT

92161-1489

1

$2.68

In stock

92173

CLAMP

92173-2098

1
Out of stock

92200

WASHER,6.5X16X2.0

92200-1543

1
Out of stock

92200A

WASHER

92200-3762

1
Out of stock

92210

NUT,LOCK,10MM

92210-3792

1
Out of stock
