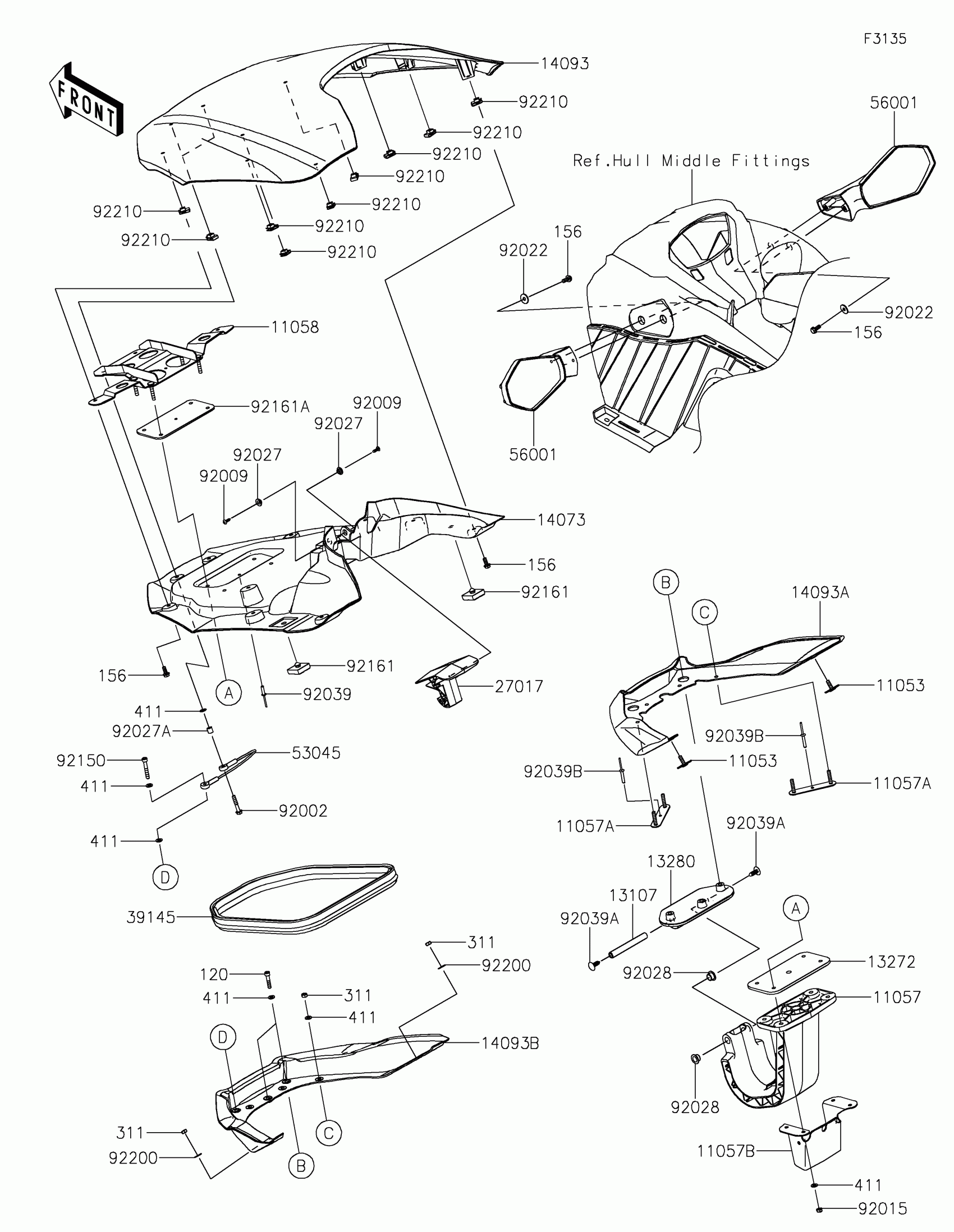

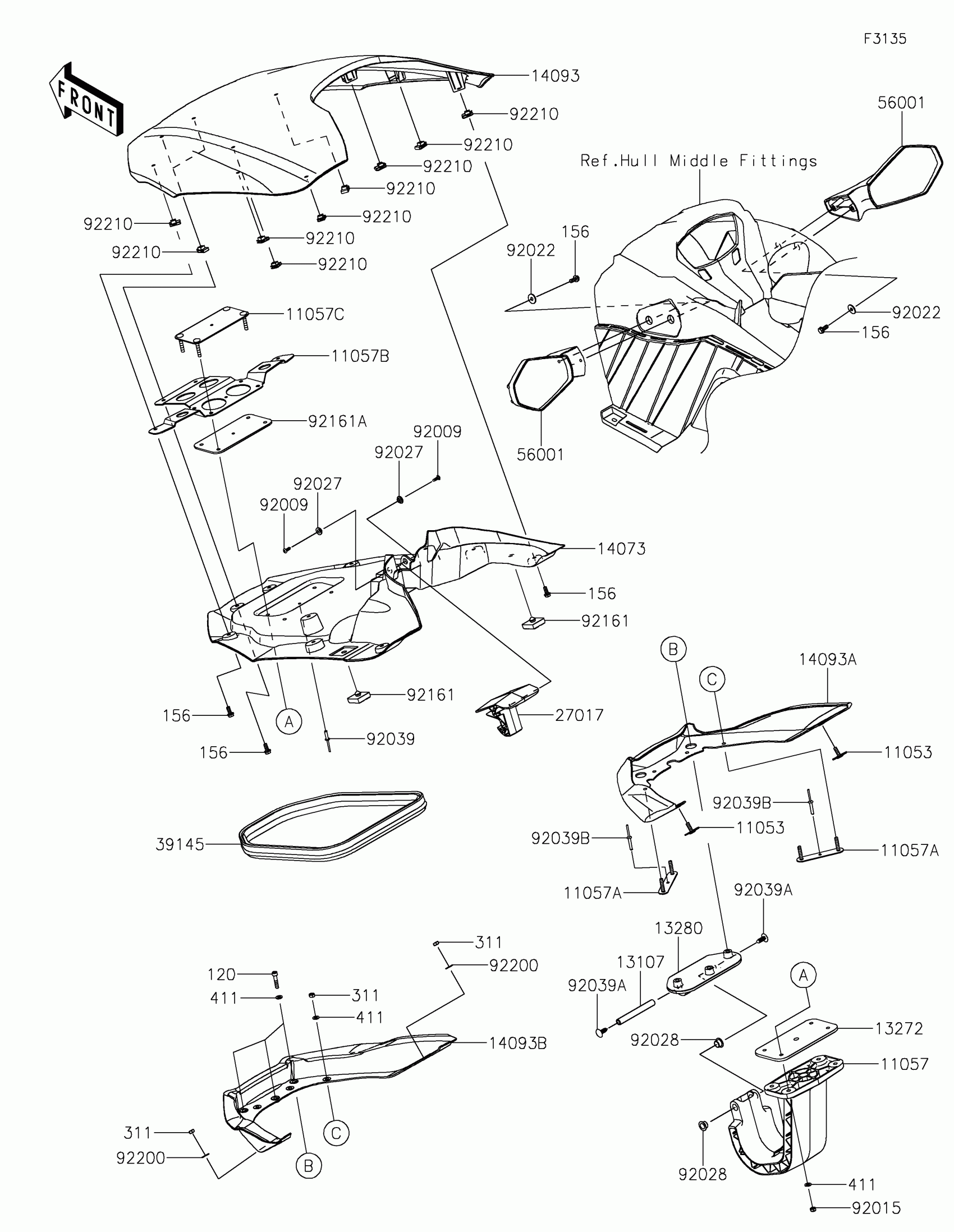

Kawasaki JET SKI® STX®160 Hull Front Fittings Diagram

Description

Price

11053

BRACKET

11053-3776

$9.17

11057

BRACKET

11057-2590

$39.96

11057A

BRACKET

11057-2645

$13.83

11057B

BRACKET

11057-7456

$100.93

11057C

BRACKET

11057-7460

$100.93

120

BOLT-SOCKET,6X30

120R0630

$3.35

13107

SHAFT,FRONT HINGE

13107-3802

$23.31

13272

PLATE

13272-3882

Unavailable

13280

HOLDER

13280-0952

$16.42

14073

DUCT,HATCH INNER

14073-0987

$135.07

14093

COVER,FR,HATCH,S.RED

14093-0894-6B

$102.53

14093A

COVER,TRIM,S.BLACK

14093-0896-839

$87.81

14093B

COVER,INNER

14093-1189

$18.00

156

BOLT-WP,6X16

156R0616

$2.76

27017

LOCK,FR,HATCH

27017-0555

$16.58

311

NUT-HEX,6MM

311R0600

$0.65

39145

TRIM-SEAL,FR,HATCH

39145-0718

$115.04

411

WASHER-PLAIN,6MM

411S0600

$1.49

56001

MIRROR-ASSY

56001-0410

$101.75

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,LOCK,6MM

92015-3766

$4.46

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92027

COLLAR,L=4.6

92027-1168

$3.81

92028

BUSHING

92028-3770

$1.90

92039

RIVET

92039-3783

$6.15

92039A

RIVET

92039-3788

$2.34

92039B

RIVET

92039-3794

$5.88

92161

DAMPER,10X34X10

92161-1920

$1.20

92161A

DAMPER

92161-2337

$4.02

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,6MM

92210-3768

$4.39
