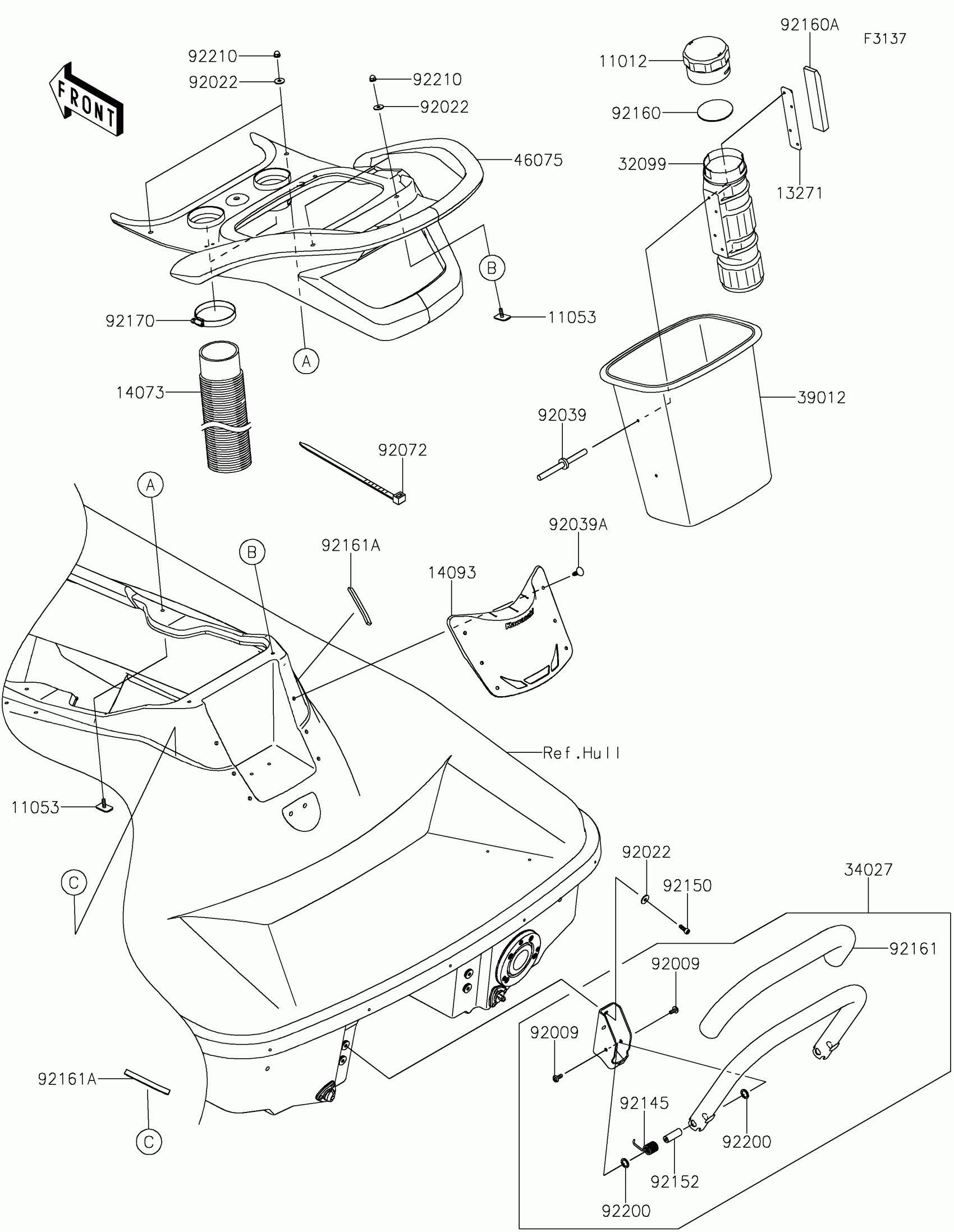

Kawasaki JET SKI® STX® 160 Hull Rear Fittings Diagram

Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

11053

BRACKET

11053-3776

$9.48

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

14073

DUCT

14073-0868

$16.82

14093

COVER,RR,STORAGE

14093-0904

$17.97

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

34027

STEP-ASSY

34027-0015

$365.67

39012

CASE-STORAGE,RR

39012-0031

$28.79

46075

GRIP,RR

46075-0640

$272.69

92009

SCREW,6X15

92009-3830

$3.32

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92039

RIVET

92039-3783

$8.05

92039A

RIVET

92039-3788

$3.39

92072

BAND,L=608.22

92072-3884

$3.35

92145

SPRING

92145-0896

$5.98

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92152

COLLAR

92152-1593

$30.40

92160

DAMPER

92160-3814

$7.91

92160A

DAMPER

92160-3821

$8.86

92161

DAMPER

92161-1427

$17.65

92161A

DAMPER

92161-2345

$1.37

92170

CLAMP

92170-1679

$6.63

92200

WASHER,14.5X20X1.5

92200-3793

$2.61

92210

NUT,CAP,6MM

92210-3785

$5.65
