2020 Kawasaki JET SKI® STX®160 Handle Pole Diagram

← All diagrams

Find the part on the Handle Pole diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

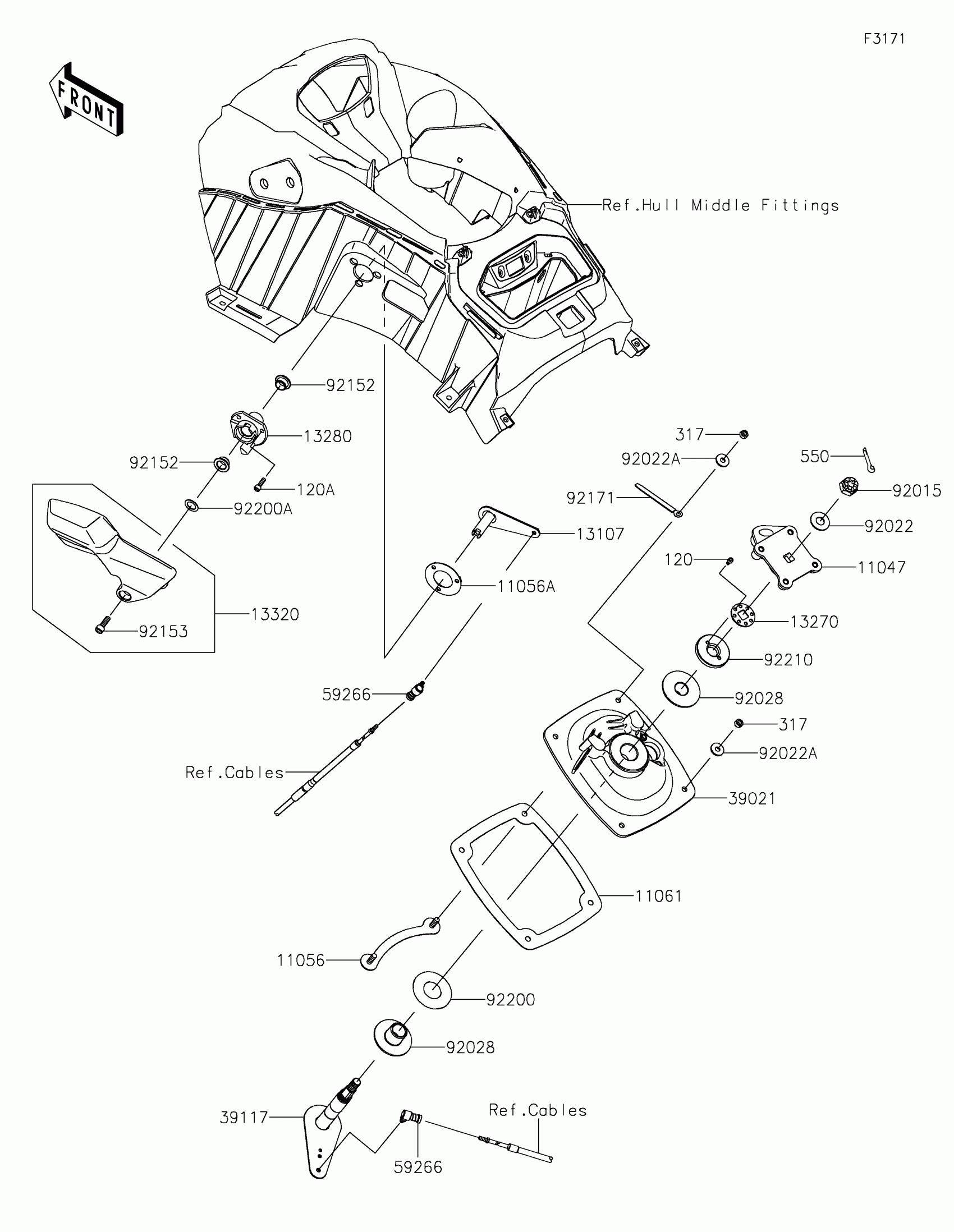

2020 Kawasaki JET SKI® STX®160 Handle Pole Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11047

BRACKET,HANDLE HOLDER

11047-3759

1
Out of stock

11056

BRACKET,HANDLE POLE BRACKET

11056-3712

1
Out of stock

11056A

BRACKET

11056-3713

1
Out of stock

11061

GASKET,HANDLE POLE BRACKET

11061-3739

1
Out of stock

120

BOLT-SOCKET,5X10

120R0510

1
Out of stock

120A

BOLT-SOCKET,6X20

120R0620

1
Out of stock

13107

SHAFT

13107-3799

1
Out of stock

13270

PLATE,STEERING NUT

13270-3808

1

$6.13

In stock

13280

HOLDER

13280-0790

1

$54.46

In stock

13320

LEVER-ASSY,REVERSE

13320-0027

1

$48.94

In stock

317

NUT

317R0800

1
Out of stock

39021

BRACKET-HANDLE POLE

39021-3716

1

$331.57

In stock

39117

SHAFT-STRG

39117-0011

1
Out of stock

550

PIN-COTTER,3X35

550S3035

1
Out of stock

59266

JOINT-BALL

59266-3707

1
Out of stock

92015

NUT,CASTLE,14MM

92015-3805

1
Out of stock

92022

WASHER,15X34X2.0

92022-3738

1
Out of stock

92022A

WASHER,8.4X23X2.5

92022-3744

1
Out of stock

92028

BUSHING,STEERING

92028-3748

1
Out of stock

92152

COLLAR

92152-3748

1
Out of stock

92153

BOLT,SOCKET,8X25

92153-3739

1
Out of stock

92171

CLAMP,L=150

92171-3717

1
Out of stock

92200

WASHER,32.5X70X2

92200-3718

1
Out of stock

92200A

WASHER,16.5X25X1

92200-3800

1
Out of stock

92210

NUT,STEERING SHAFT,22MM

92210-3800

1
Out of stock
