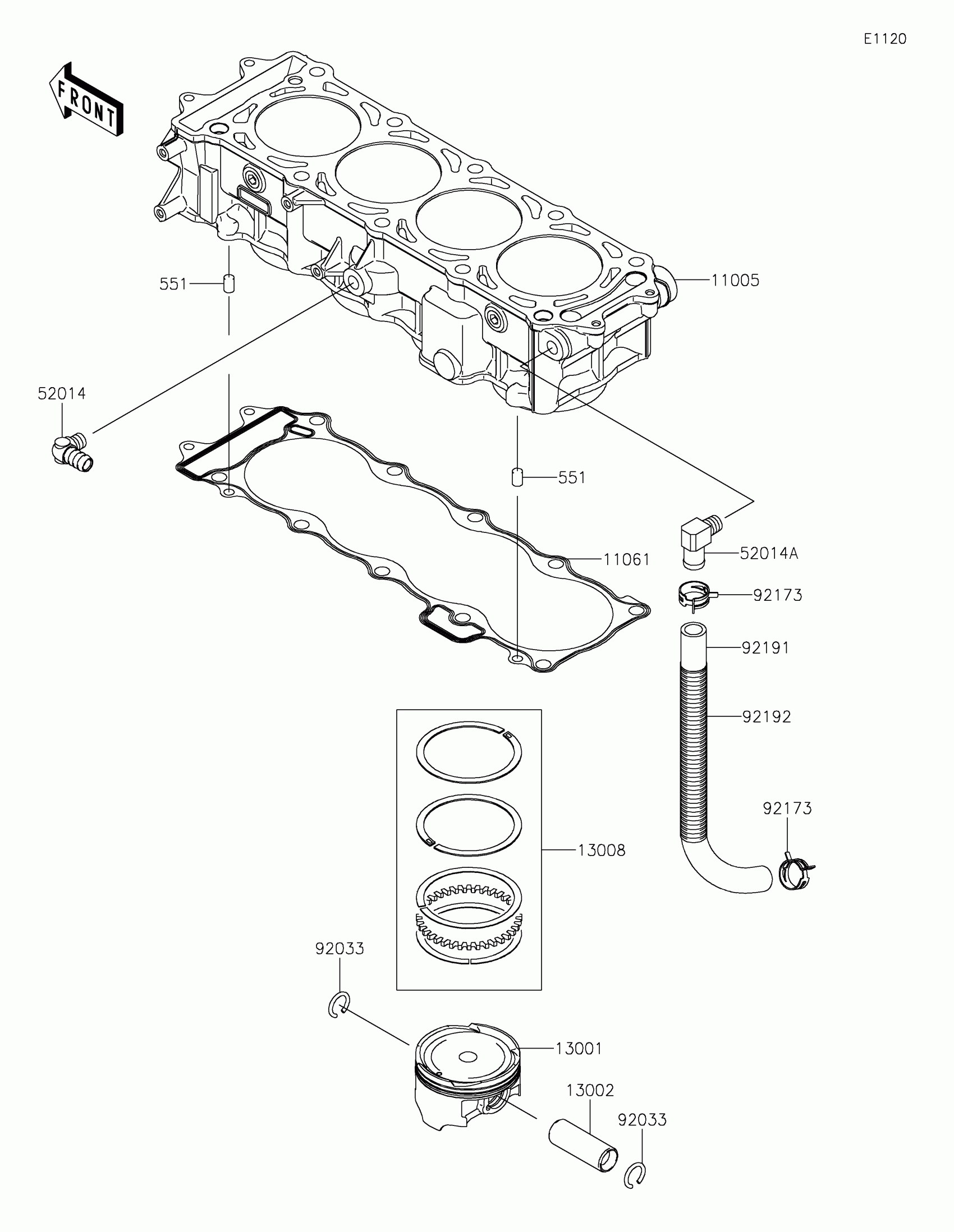

Kawasaki JET SKI® STX®160 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-3768

$1,348.56

11061

GASKET,CYLINDER BASE

11061-3708

$66.69

13001

PISTON-ENGINE

13001-3737

$123.98

13002

PIN-PISTON

13002-3709

$28.70

13008

RING-SET-PISTON

13008-0048

$70.72

52014

ELBOW

52014-3711

$30.12

52014A

ELBOW

52014-3717

$33.08

551

PIN-DOWEL

551R0812

$7.91

92033

RING-SNAP

92033-1188

$3.89

92173

CLAMP

92173-1039

$3.02

92191

TUBE,BREATHER

92191-3983

$16.26

92192

TUBE,CORRUGATED,L=265

92192-1083

$17.74
