Throttle

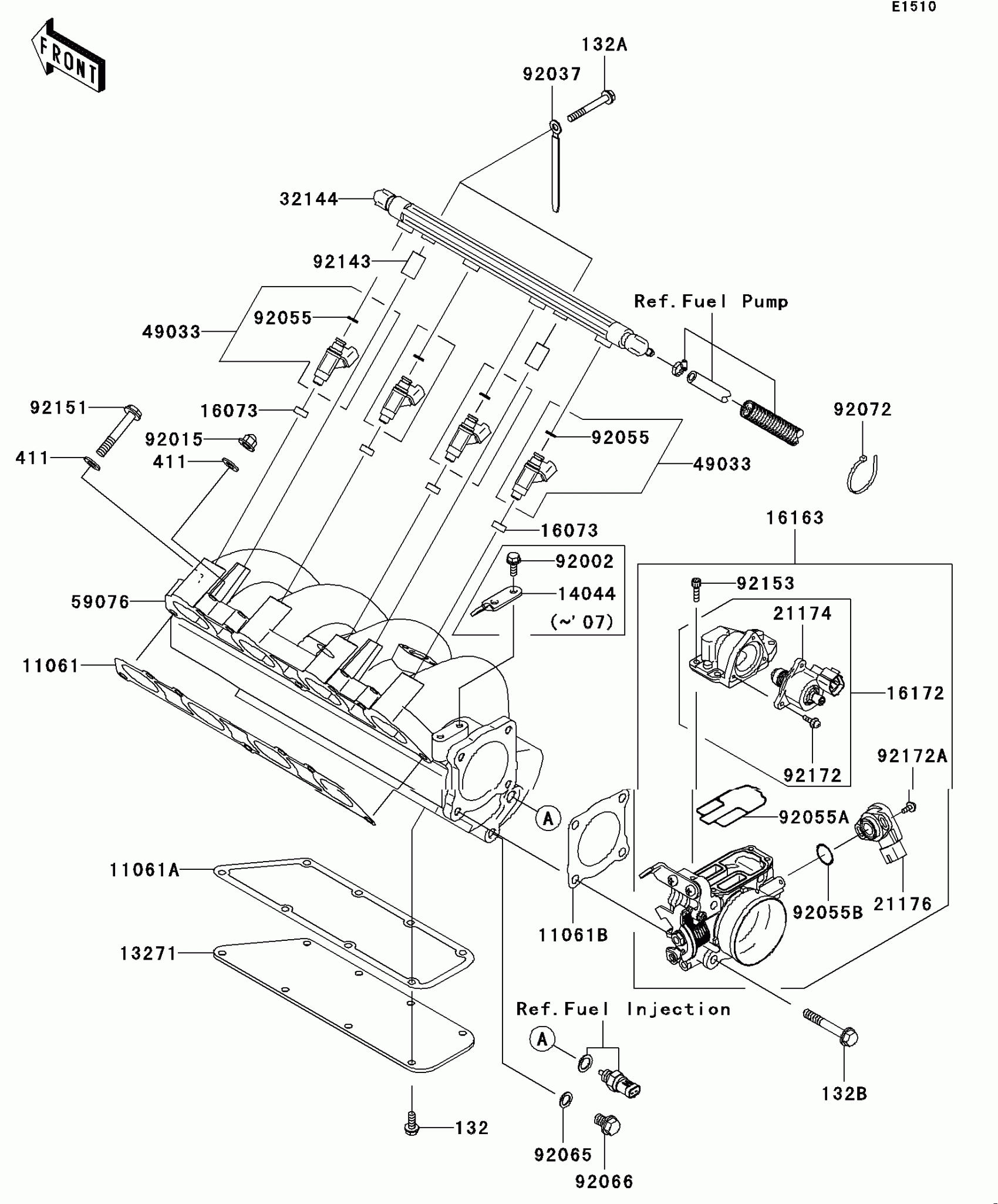

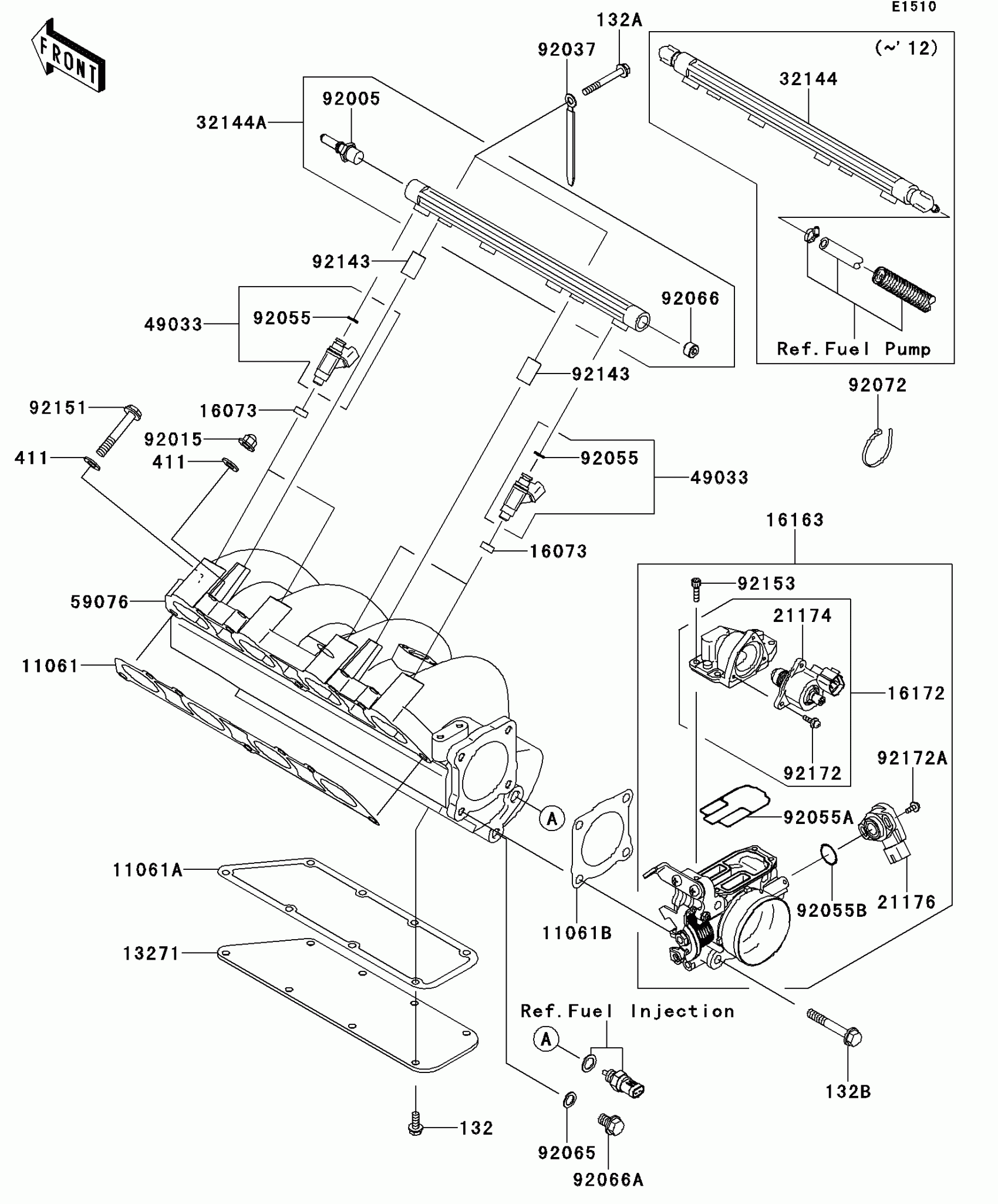

Kawasaki JET SKI® STX®-15F Throttle Diagram
#
Description
Price
11061
GASKET,MANIFOLD
11061-3716
Unavailable
11061A
GASKET,PLATE
11061-3737
$21.01
11061B
GASKET,THROTTLE
11061-3738
Unavailable
13271
PLATE,MANIFOLD
13271-3899
$46.95
16073
INSULATOR
16073-3707
$6.18
16163
THROTTLE-ASSY
16163-0757
$1,303.55
16172
ACTUATOR
16172-0561
$357.12
21174
MOTOR-ELECTRIC,STM
21174-0555
$235.03
21176
SENSOR,TPS
21176-3762
$94.30
32144A
PIPE-ASSY
32144-3706
$135.90
49033
NOZZLE-INJECTION
49033-3707
$116.95
59076
MANIFOLD-INTAKE
59076-3729
$1,058.27
92005
FITTING
92005-3754
$37.51
92015
NUT,CAP,8MM
92015-1371
$5.00
92037
CLAMP,L=100
92037-3736
$5.52
92055
RING-O,INJECTION NOZZLE
92055-1622
$1.95
92055A
RING-O
92055-3773
$16.95
92055B
RING-O
92055-3774
$16.95
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG
92066-3778
$11.06
92066A
PLUG
92066-3781
$7.58
92072
BAND,L=188.85
92072-0105
$1.73
92143
COLLAR
92143-3731
$6.38
92151
BOLT,8X60
92151-3730
$7.27
92153
BOLT
92153-3723
$3.90
92172
SCREW
92172-3710
$3.90
92172A
SCREW
92172-3711
$3.90
132
BOLT-FLANGED-SMALL,6X16
132BD0616
$4.12
132A
BOLT-FLANGED-SMALL,6X50
132BD0650
$4.76
132B
BOLT-FLANGED-SMALL,8X55
132BD0855
$3.13
411
WASHER-PLAIN,8MM
411S0800
$3.09
