Description

Price

11065

CAP,F.BLACK

11065-3707-6Z

$4.96

39027

BUMPER-FRONT,F.BLACK

39027-3741-6Z

$223.50

39028

BUMPER-REAR,CORNER,F.BLACK

39028-3752-6Z

$50.51

53004

MAT,DECK,FR,LH

53004-0570

$36.72

53004A

MAT,DECK,FR,RH

53004-0571

$36.72

53004B

MAT,DECK,FR,LH

53004-0572

$61.35

53004C

MAT,DECK,FR,RH

53004-0573

$61.35

53004D

MAT,DECK,MIDDLE,LH

53004-0574

$69.04

53004E

MAT,DECK,MIDDLE,RH

53004-0575

$69.04

53004F

MAT,DECK,RR,LH

53004-0576

$82.32

53004G

MAT,DECK,RR,RH

53004-0577

$82.32

59201

BUMPER,RR,F.BLACK

59201-3788-6Z

$47.55

59201A

BUMPER,SIDE,F.BLACK

59201-3789-6Z

$162.44

59504

INSERT-BOAT FENDER,SIDE,SILVER

59504-3731-AG

$83.24

59504B

INSERT-BOAT FENDER,RR,F.SILVER

59504-3732-AG

$36.77

92039

RIVET

92039-3771

$0.95

92039A

RIVET

92039-3773

$1.08

92153

BOLT,SOCKET,5X30

92153-3742

$2.97

92200

WASHER,5X12X1

92200-3796

$2.15

311

NUT-HEX,5MM

311R0500

$1.75

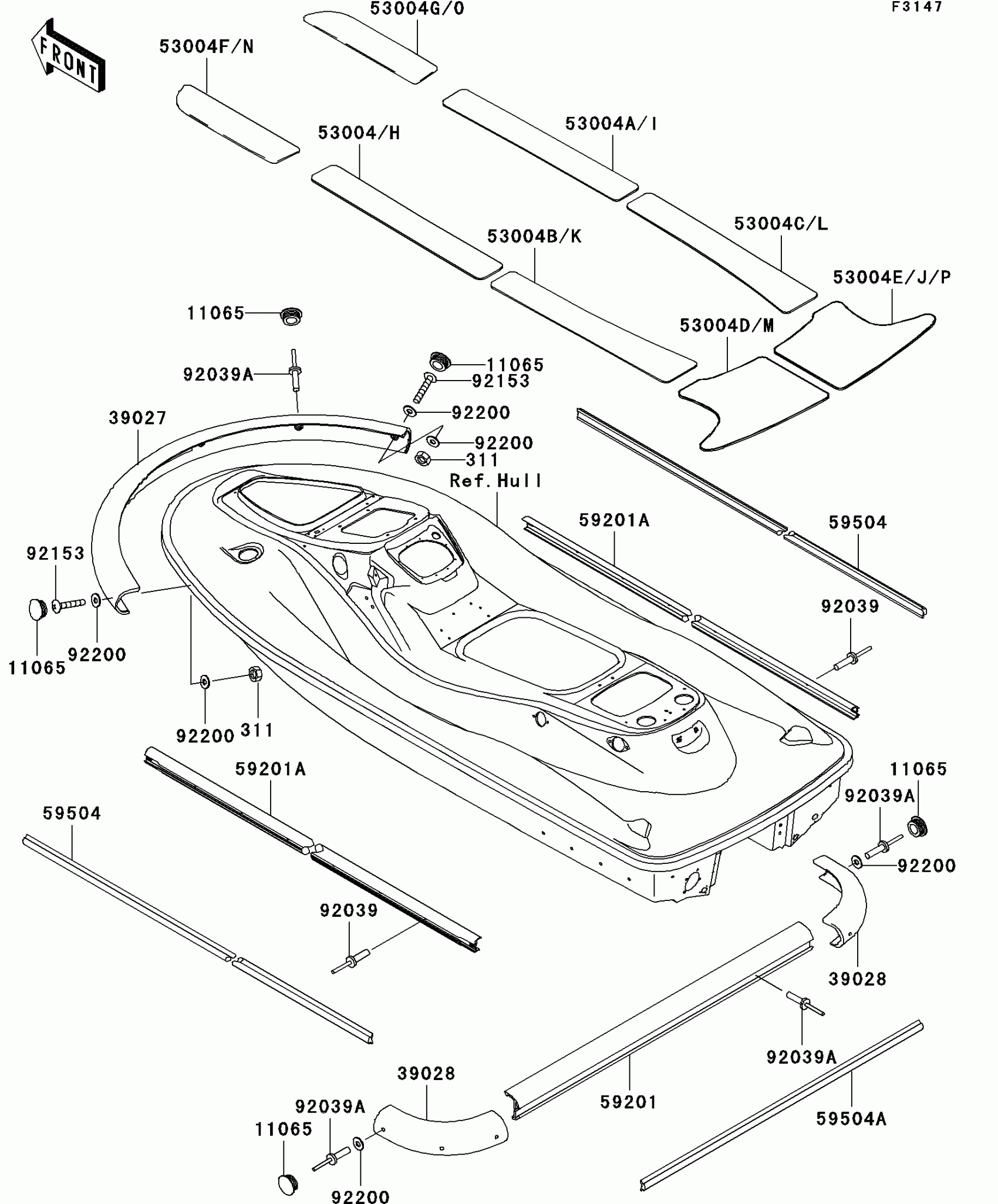

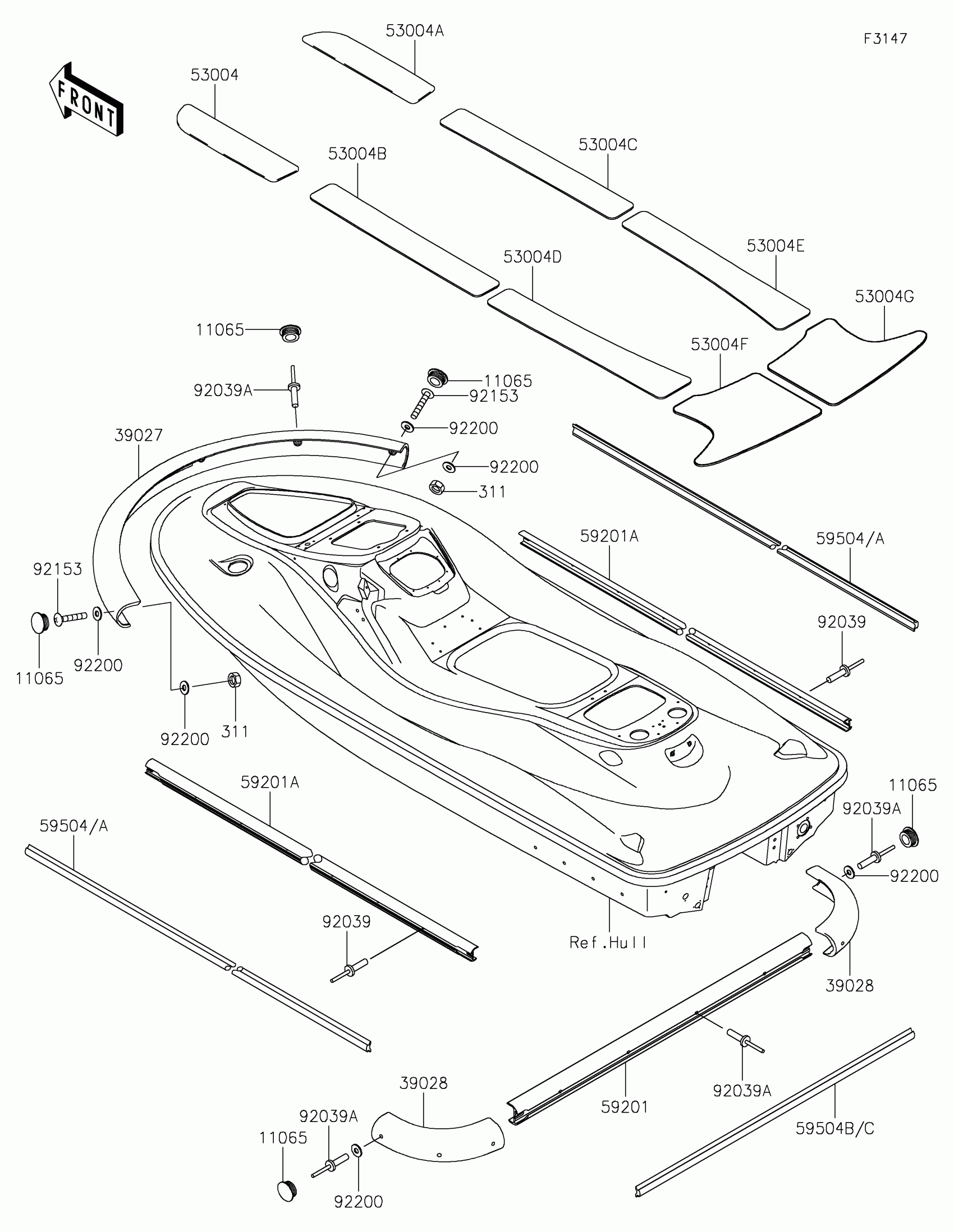

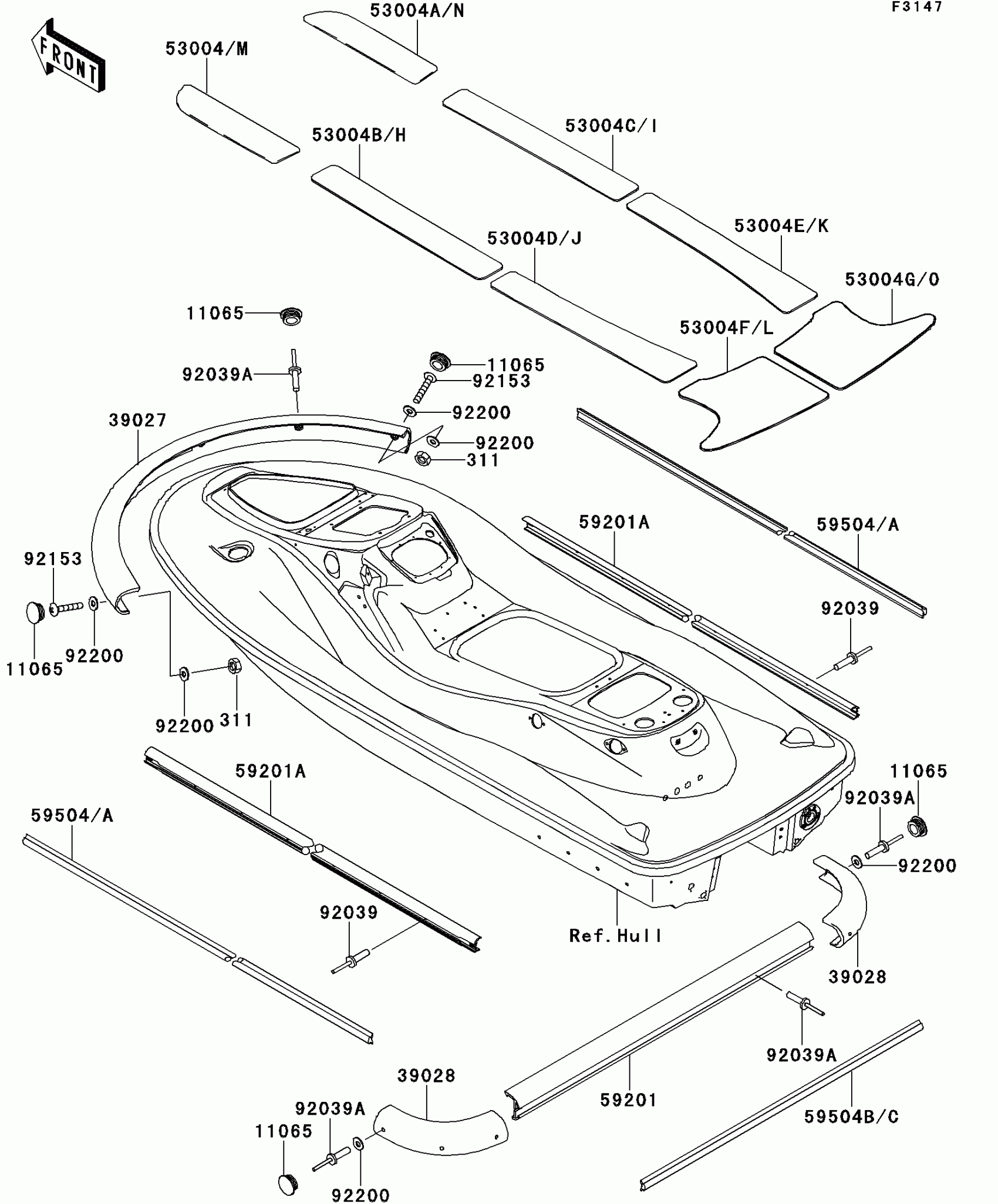

Kawasaki JET SKI® STX®-15F Pads Diagram

CAP,F.BLACK

BUMPER-FRONT,F.BLACK

BUMPER-REAR,CORNER,F.BLACK

MAT,DECK,FR,LH

MAT,DECK,FR,RH

MAT,DECK,FR,LH

MAT,DECK,FR,RH

MAT,DECK,MIDDLE,LH

MAT,DECK,MIDDLE,RH

MAT,DECK,RR,LH

MAT,DECK,RR,RH

BUMPER,RR,F.BLACK

BUMPER,SIDE,F.BLACK

INSERT-BOAT FENDER,SIDE,SILVER

INSERT-BOAT FENDER,RR,F.SILVER

RIVET

RIVET

BOLT,SOCKET,5X30

WASHER,5X12X1

NUT-HEX,5MM
