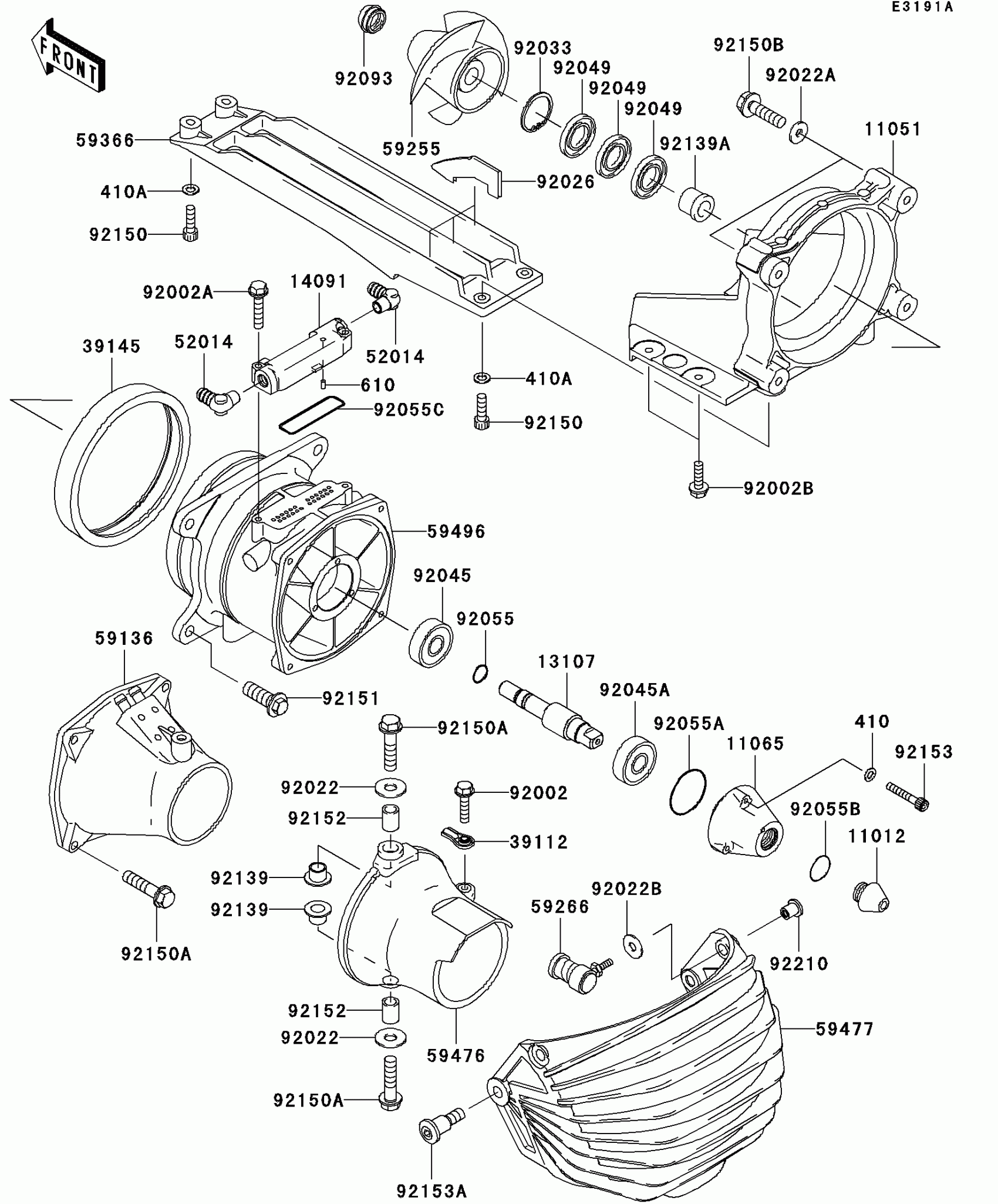

Kawasaki Jet Ski® STX-15F Jet Pump(A7F-AAF) Diagram

#

Description
Price

11012

CAP

11012-3786

Unavailable

11051

BRACKET

11051-3763

$516.54

11065

CAP

11065-3733

$49.96

13107

SHAFT,JET PUMP

13107-3794

$98.75

14091

COVER,VANE GUIDE

14091-3817

$28.84

39112

RODEND-TIE

39112-3703

$22.16

39145

TRIM-SEAL

39145-3742

$45.60

52014

ELBOW

52014-3711

$30.12

59136

NOZZLE-PUMP

59136-3760

$154.56

59255

IMPELLER-COMP

59255-3729

$524.61

59266

JOINT-BALL

59266-3707

$66.16

59366

GRATE

59366-3719

$191.46

59476

NOZZLE-STRG

59476-3743

$290.18

59477

BUCKET-REVERSE

59477-3712

Unavailable

59496

VANE-GUIDE

59496-3759

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X20

92002-3755

$4.69

92022

WASHER,PLAIN

92022-3026

$3.60

92022A

WASHER,8.4X23X2.5

92022-3744

$4.18

92022B

WASHER

92022-567

$2.67

92026

SPACER

92026-3742

$14.36

92033

RING-SNAP

92033-3730

$9.11

92045

BEARING-BALL,6303R-6

92045-3744

Unavailable

92045A

BEARING-BALL,62/22 2RS

92045-3745

Unavailable

92049

SEAL-OIL

92049-3739

$28.94

92055

RING-O,13.0X1.9

92055-1011

$7.62

92055A

RING-O

92055-3741

$3.32

92055B

RING-O

92055-3744

$2.91

92055C

RING-O,70.2X74.0X1.90

92055-3765

Unavailable

92093

SEAL

92093-3749

$4.96

92139

BUSHING

92139-3701

Unavailable

92139A

BUSHING

92139-3715

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,8X35

92150-3792

$7.34

92150B

BOLT,FLANGED,8X30

92150-3803

$7.34

92151

BOLT,10X30

92151-3706

$6.57

92152

COLLAR,8.2X11.8X15

92152-3703

$7.68

92153

BOLT,SOCKET,5X30

92153-3742

$2.97

92153A

BOLT,SOCKET,8X30

92153-3745

$16.97

92210

NUT,6MM

92210-3789

$20.70

410

W-PLAIN-S,5MM

410S0500

$1.59

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

610

ROLLER,4X8

610A0408

$4.31
