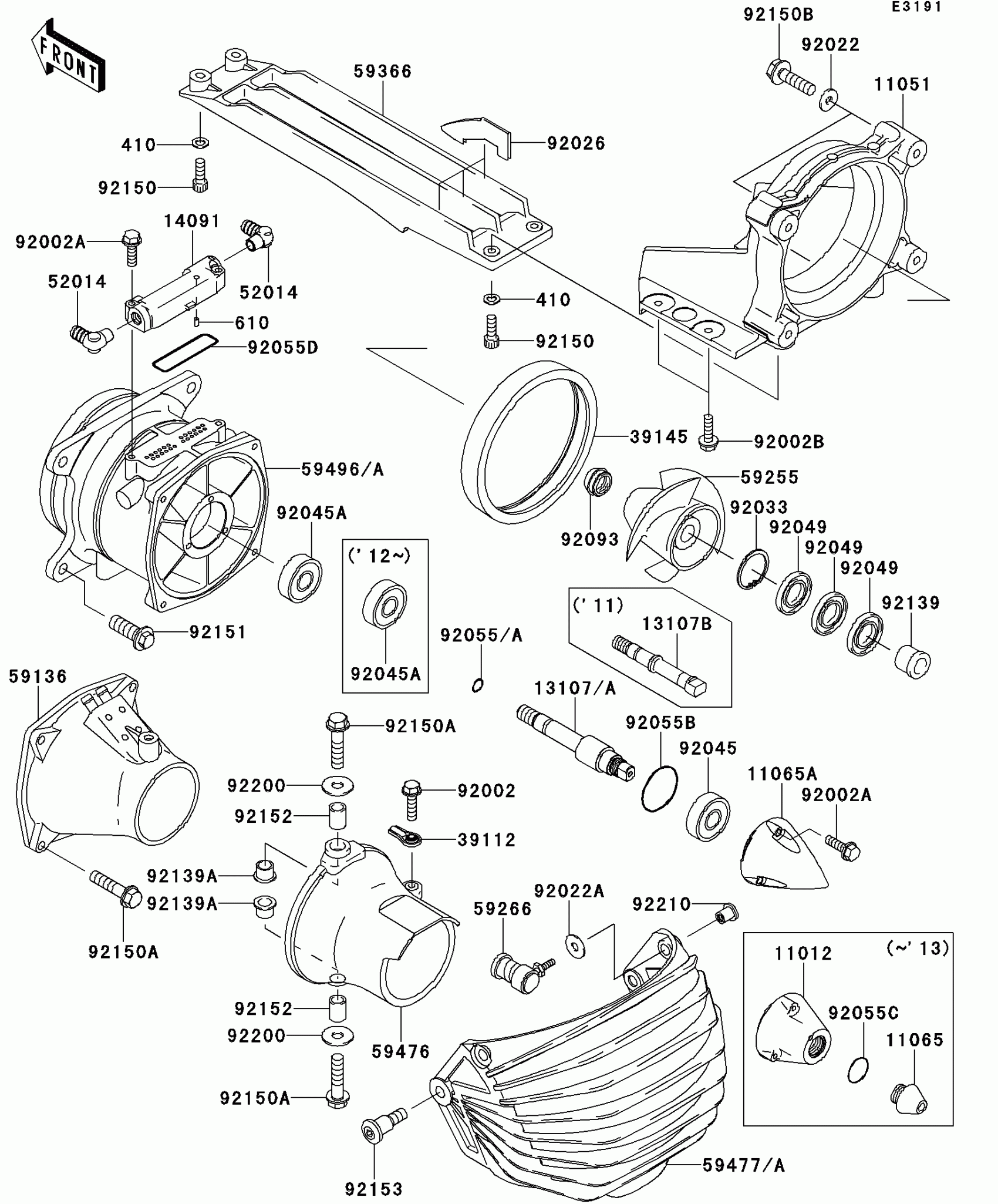

Kawasaki JET SKI® STX®-15F Jet Pump Diagram

#

Description
Price

11051

BRACKET

11051-3763

$516.54

11065A

CAP

11065-0828

$57.74

13107A

SHAFT

13107-0765

$110.18

14091

COVER,VANE GUIDE

14091-3817

$28.84

39112

RODEND-TIE

39112-3703

$22.16

39145

TRIM-SEAL

39145-3742

$45.60

52014

ELBOW

52014-3711

$30.12

59136

NOZZLE-PUMP

59136-3760

$154.56

59255

IMPELLER-COMP

59255-3729

$524.61

59266

JOINT-BALL

59266-3707

$66.16

59366

GRATE

59366-3719

$191.46

59476

NOZZLE-STRG

59476-3743

$290.18

59477

BUCKET-REVERSE

59477-0001

$231.13

59496

VANE-GUIDE

59496-0001

$428.37

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X20

92002-3755

$4.69

92022

WASHER,8.4X23X2.5

92022-3744

$4.18

92022A

WASHER

92022-567

$2.67

92026

SPACER

92026-3742

$14.36

92033

RING-SNAP

92033-3730

$9.11

92045

BEARING-BALL,62022RD

92045-0112

$16.83

92045A

BEARING-BALL,6303R-6

92045-3744

Unavailable

92049

SEAL-OIL

92049-3739

$28.94

92055

RING-O,12X1.5

92055-025

$4.69

92055B

RING-O

92055-3741

$3.32

92055D

RING-O,66.5X2.0

92055-3784

$7.45

92093

SEAL

92093-3749

$4.96

92139

BUSHING

92139-0718

$39.77

92139A

BUSHING

92139-3720

$8.81

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,8X35

92150-3792

$7.34

92150B

BOLT,FLANGED,8X30

92150-3803

$7.34

92151

BOLT,10X30

92151-3706

$6.57

92152

COLLAR,8.2X11.8X15

92152-3703

$7.68

92153

BOLT,SOCKET,8X30

92153-3745

$16.97

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92210

NUT,6MM

92210-3789

$20.70

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

610

ROLLER,4X8

610A0408

$4.31
