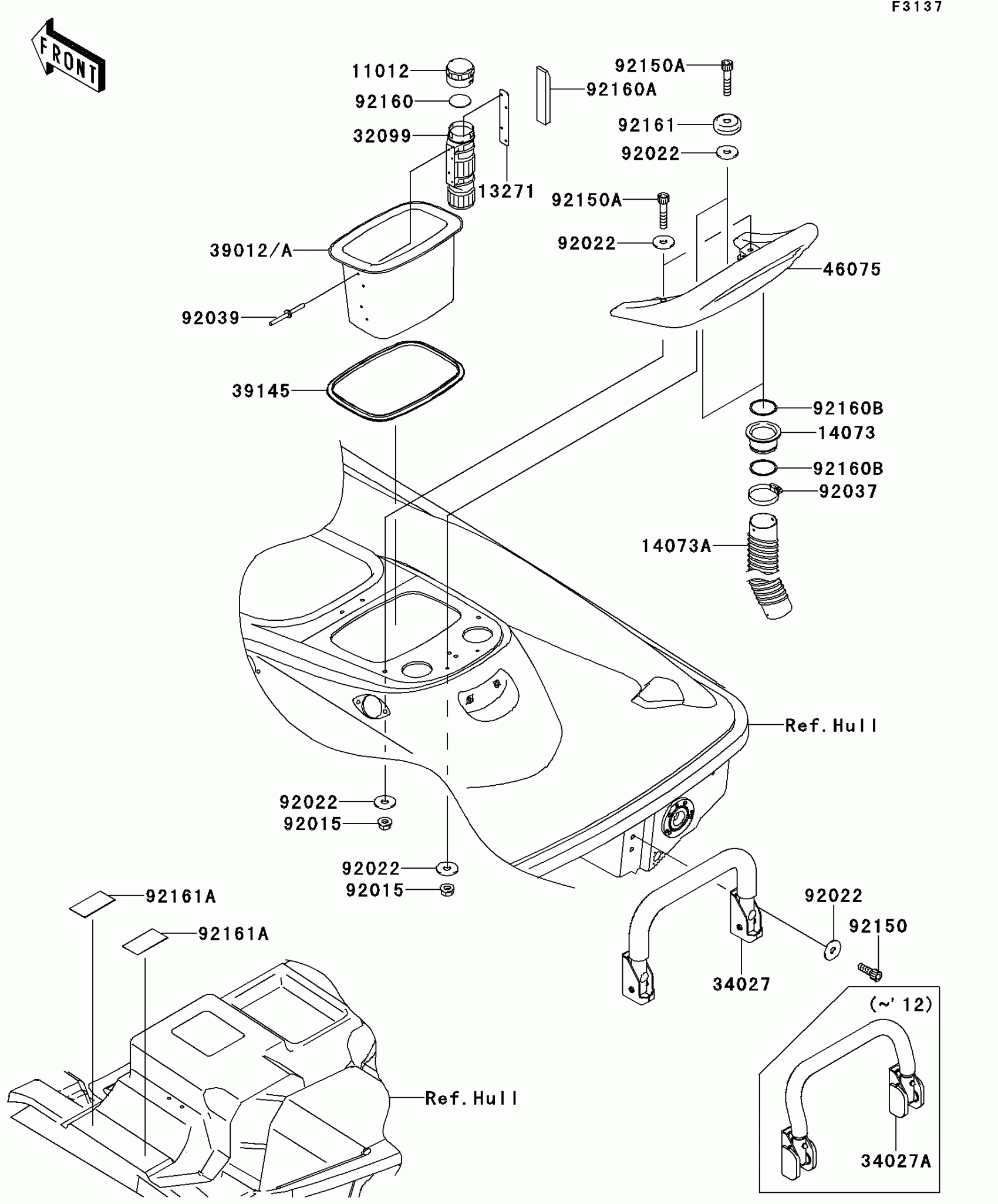

Kawasaki Jet Ski® STX-15F Hull Rear Fittings Diagram

Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

14073

DUCT

14073-3798

$13.73

14073A

DUCT

14073-3799

$16.10

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

34027B

STEP-ASSY

34027-3709

Unavailable

39012

CASE-STORAGE,RR

39012-3727

Unavailable

39145

TRIM-SEAL,REAR STORAGE

39145-3767

$37.24

46075

GRIP,RR,F.BLACK

46075-3755-6Z

$231.19

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-3738

$6.89

92039

RIVET

92039-3783

$8.05

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,SOCKET,6X30

92150-3822

$4.31

92160

DAMPER

92160-3814

$7.91

92160A

DAMPER

92160-3821

$8.86

92160C

DAMPER

92160-3910

$5.69

92161

DAMPER

92161-3717

$16.45

92161A

DAMPER

92161-3728

$5.64
