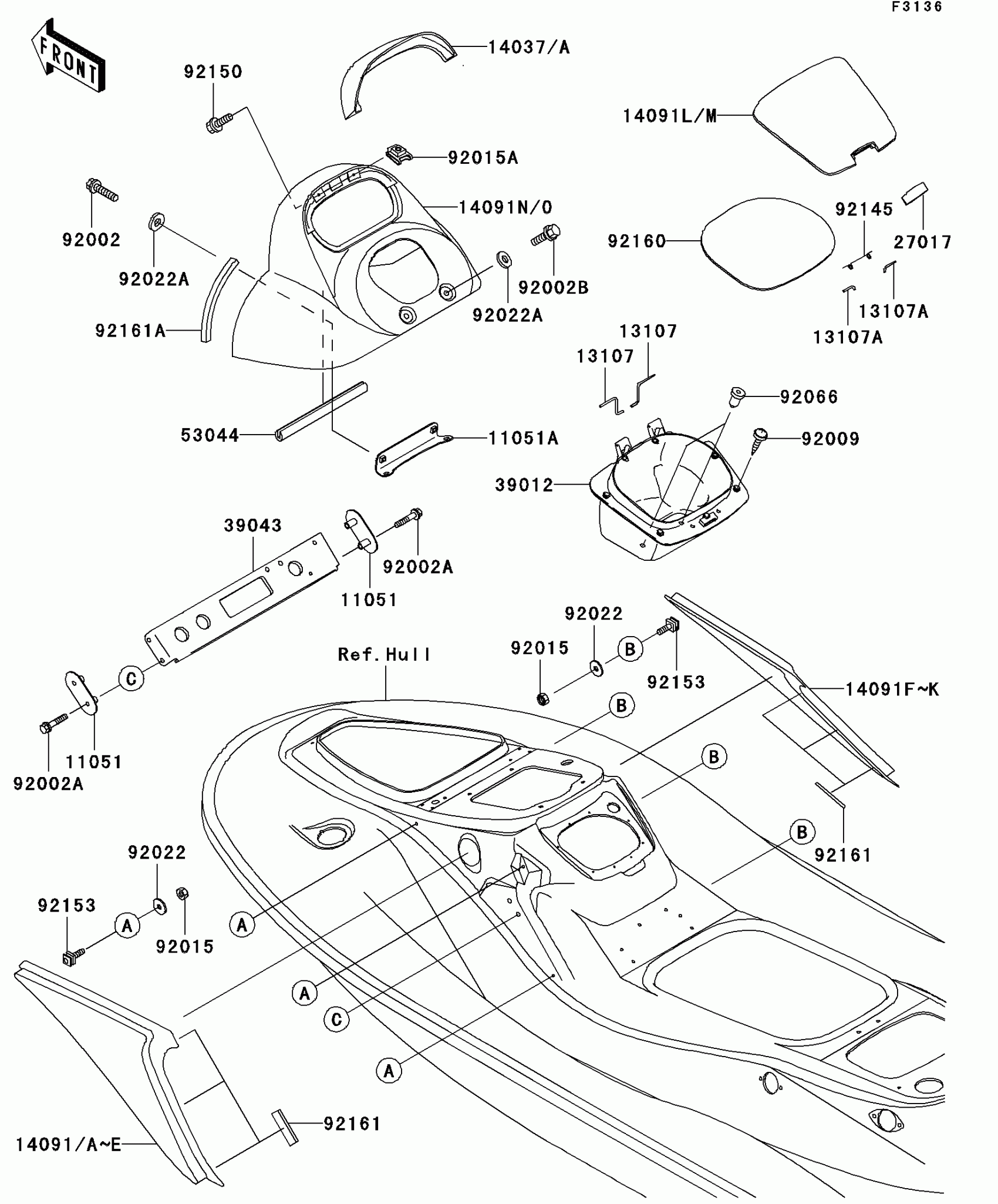

Kawasaki Jet Ski® STX-15F Hull Middle Fittings Diagram

#

Description
Price

11051

BRACKET,CROSSMEMBER

11051-3782

$17.73

11051A

BRACKET

11051-3811

Unavailable

13107

SHAFT

13107-3761

$4.46

13107A

SHAFT

13107-3769

$4.09

14037A

SCREEN,METER,F.S.BLACK

14037-3709-378

$84.61

14091

COVER,SIDE,LH,S.RED

14091-3708-H1

$124.51

14091C

COVER,SIDE,LH,V.BLUE

14091-3708-16F

$124.51

14091D

COVER,SIDE,LH,M.TITANIUM

14091-3708-16S

$124.51

14091F

COVER,SIDE,RH,S.RED

14091-3709-H1

$124.51

14091I

COVER,SIDE,RH,V.BLUE

14091-3709-16F

$124.51

14091J

COVER,SIDE,RH,M.TITANIUM

14091-3709-16S

$116.87

14091M

COVER,CENTER STORAGE,J.WHITE

14091-3710-8C

$94.91

14091O

COVER,HANDLE,F.S.BLACK

14091-3770-378

$149.99

27017

LOCK,CENTER STORAGE

27017-3725

$9.64

39012

CASE-STORAGE

39012-3735

Unavailable

39043

CROSSMEMBER-COMP

39043-3703

$102.54

53044

TRIM,L=180

53044-3755

$9.52

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X12

92002-3763

$4.69

92009

SCREW,TAPPING,5X20

92009-3716

$3.65

92015

NUT,LOCK,5MM

92015-3798

$7.99

92015A

NUT,CLIP,5MM

92015-3830

$7.91

92022

WASHER,5X16X1.5

92022-3041

$4.18

92022A

WASHER,6.5X20X1.5

92022-3710

$3.65

92066

PLUG

92066-3773

$1.75

92145

SPRING

92145-3711

$4.96

92150

BOLT,5X16

92150-3778

$4.65

92153

BOLT,5MM

92153-3703

$7.73

92160

DAMPER

92160-3933

$12.90

92161

DAMPER

92161-3756

$2.17

92161A

DAMPER

92161-3757

$3.98
