Hull Front Fittings

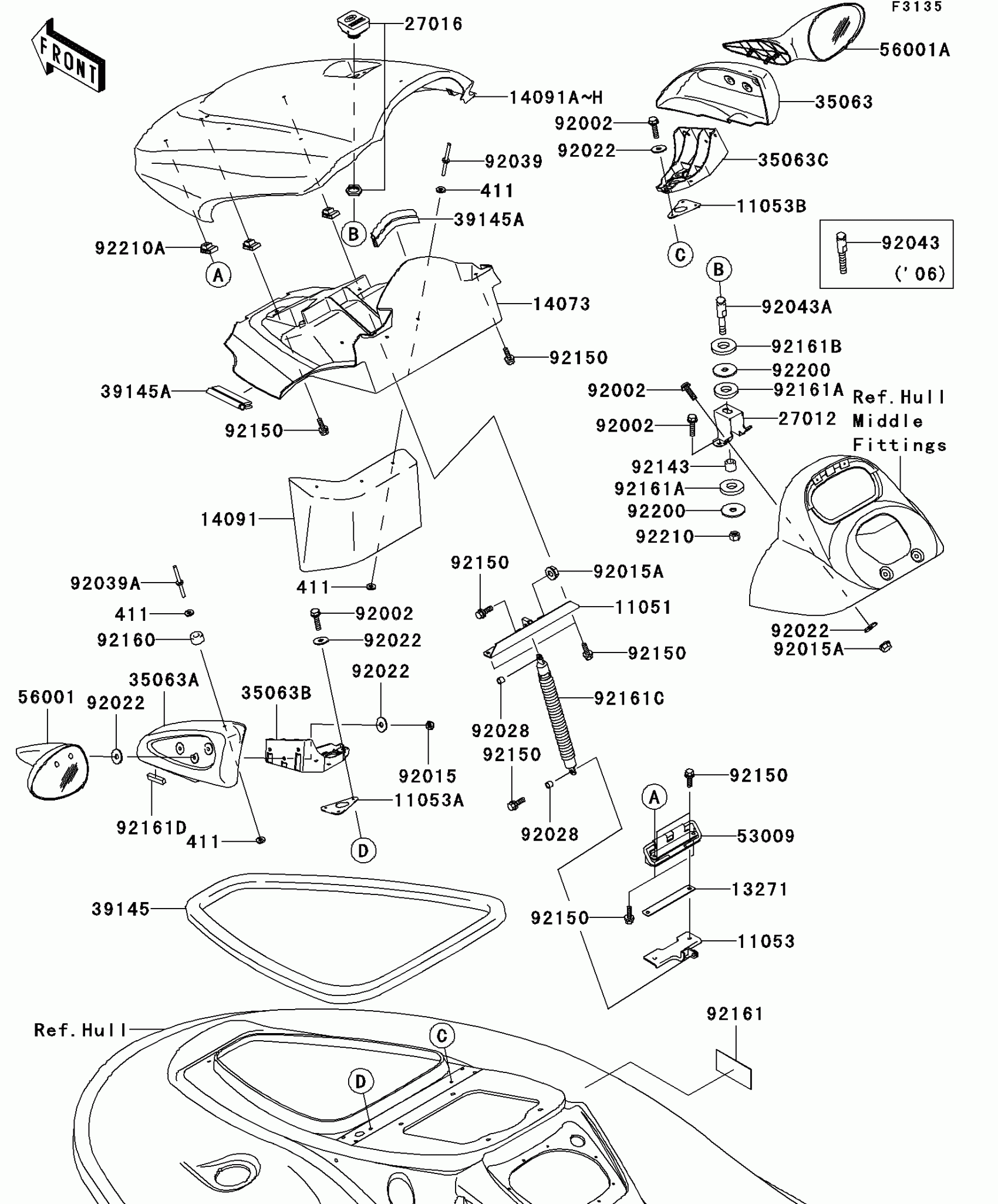

Kawasaki JET SKI® STX®-15F Hull Front Fittings Diagram
#
11051
BRACKET
11051-3766
$30.55
11053
BRACKET
11053-3752
$47.68
11056
BRACKET,LH
11056-3715
$8.23
11056A
BRACKET,RH
11056-3717
$13.99
13271
PLATE
13271-3897
$6.93
14073
DUCT,HATCH,INNER
14073-3800
$153.16
14091C
COVER,HATCH,L.GREEN
14091-3778-777
$149.99
14092
COVER,FRONT DUCT
14092-0842
$47.75
27012
HOOK
27012-3855
$26.00
27016
LOCK-ASSY
27016-0049
Unavailable
35063
STAY,MIRROR,RH,F.BLACK
35063-3709-6Z
$28.46
35063A
STAY,MIRROR,LH,F.BLACK
35063-3710-6Z
$28.46
35063B
STAY,MIRROR,LH
35063-3713
$18.89
35063C
STAY,MIRROR,RH
35063-3714
$18.89
39145
TRIM-SEAL,L=1380
39145-3773
$77.78
39145A
TRIM-SEAL,L=260
39145-3789
$16.18
53009
HINGE,HATCH COVER
53009-3725
$117.70
56001B
MIRROR-ASSY,LH
56001-0267
$155.92
56001C
MIRROR-ASSY,RH
56001-0268
$146.11
92002
BOLT,6X25
92002-3714
$5.00
92015
NUT,LOCK,6MM
92015-3766
$5.91
92015A
NUT,6MM
92015-3767
$4.69
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92028
BUSHING
92028-3765
$3.29
92039
RIVET
92039-3714
$0.95
92039A
RIVET
92039-3747
$1.70
92043
PIN
92043-0754
$20.32
92143
COLLAR,8.2X14X11.2
92143-3724
$13.56
92150
BOLT,6X18
92150-3729
$4.69
92160
DAMPER
92160-3738
$14.36
92161
DAMPER,HATCH
92161-1581
$189.92
92161A
DAMPER
92161-3728
$5.64
92161B
DAMPER
92161-3739
$6.18
92161C
DAMPER
92161-3747
$5.12
92161D
DAMPER
92161-3754
$3.10
92200
WASHER,8.5X32X2
92200-3786
$5.79
92210
NUT,LOCK,8MM
92210-3742
$6.57
92210A
NUT,6MM
92210-3768
$5.79
411
WASHER-PLAIN,5MM
411S0500
$0.94
