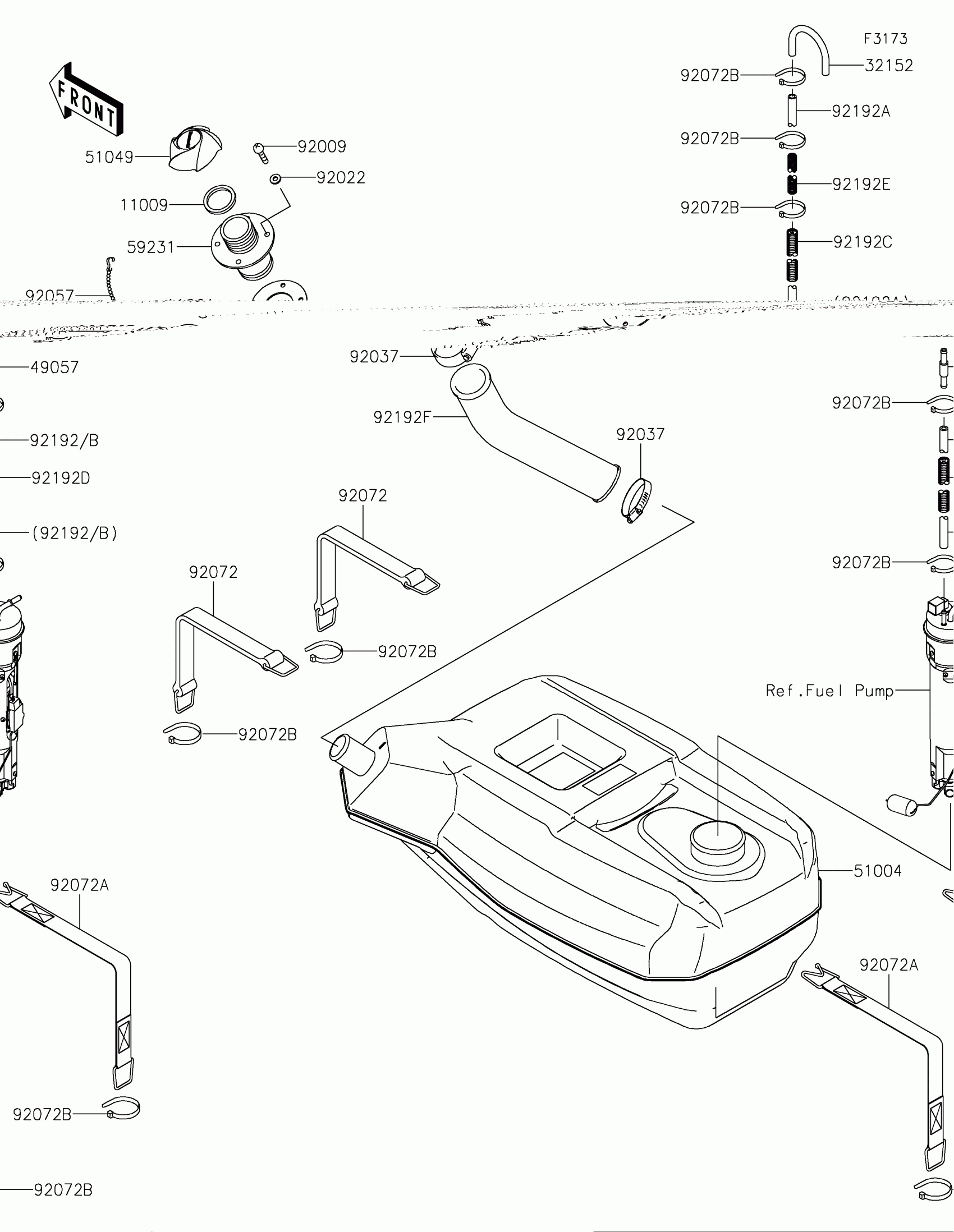

Kawasaki JET SKI® STX®-15F Fuel Tank Diagram

Description

Price

11009

GASKET,TANK CAP

11009-3020

$13.51

11061

GASKET

11061-3701

$14.16

32152

PIPE

32152-3705

$11.96

49057

VALVE-RELIEF

49057-0002

$64.85

51004

TANK-FUEL

51004-0003

$358.68

51049

CAP-TANK,FUEL

51049-0712

$23.72

59231

FILLER,FUEL TANK

59231-3734

$16.09

92009

SCREW,TAPPING,4X16

92009-3849

$1.59

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92072

BAND

92072-3845

$18.53

92072A

BAND

92072-3850

$48.63

92072B

BAND,L=100.08

92072-3882

$2.02

92192A

TUBE,5.8X10.8X1000

92192-1510

$22.18

92192B

TUBE,5.8X11X100

92192-1795

$18.56

92192C

TUBE,CORRUGATED,15.3X20.6X650

92192-3748

$4.34

92192D

TUBE,CORRUGATED,L=120

92192-3749

$3.82

92192E

TUBE,CORRUGATED,L=100

92192-3809

$2.64

92192F

TUBE,FUEL TANK-FILLER

92192-3842

$51.78
