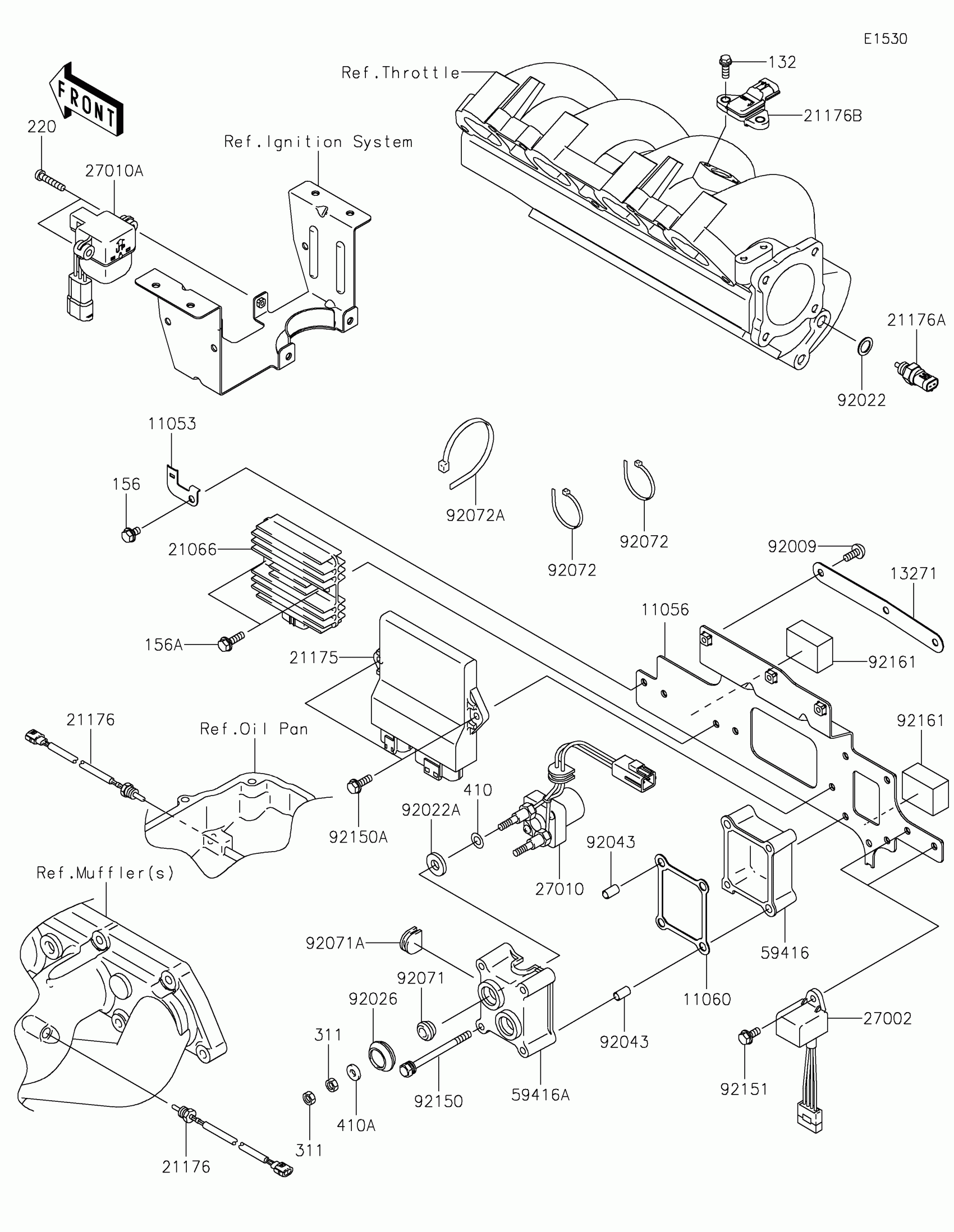

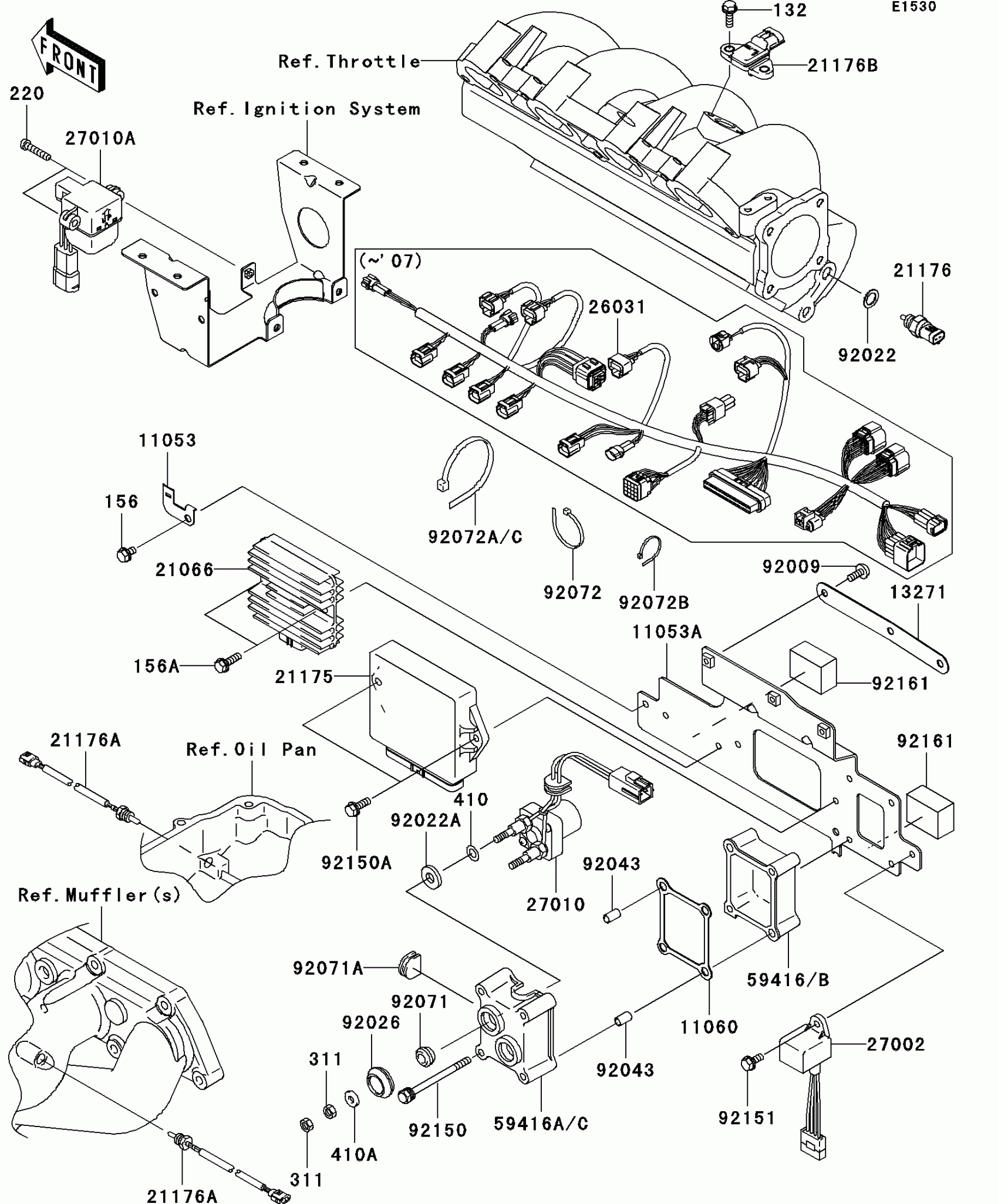

Kawasaki Jet Ski® STX-15F Fuel Injection Diagram

#

Description
Price

11053

BRACKET,FUSE

11053-3724

$7.90

11053A

BRACKET,SWITCH

11053-3774

$112.86

11060

GASKET

11060-3709

$13.41

13271

PLATE

13271-3842

$6.82

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-3737

$522.26

21176

SENSOR,AIR TEMPERATURE

21176-1086

$68.42

21176A

SENSOR,TEMP

21176-3758

$133.71

21176B

SENSOR,PRESSURE

21176-3765

$245.34

27002

RELAY-ASSY

27002-3703

$51.63

27010

SWITCH

27010-3777

$164.03

27010A

SWITCH,VDS

27010-3785

$259.40

59416

CASE-ELECTRIC

59416-3710

$57.71

59416A

CASE-ELECTRIC

59416-3711

$64.25

59416B

CASE-ELECTRIC

59416-3765

$65.38

59416C

CASE-ELECTRIC

59416-3766

$66.70

92009

SCREW,6X15

92009-3830

$3.32

92022

WASHER,12X18X1.0

92022-1211

$3.92

92022A

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92043

PIN

92043-3715

$7.34

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-3837

$3.23

92072

BAND,L=188.85

92072-0105

$1.73

92072C

BAND,L=372.24

92072-3883

$1.59

92150

BOLT,6X80

92150-3711

$13.04

92150A

BOLT,6X18

92150-3729

$4.69

92151

BOLT,6X14

92151-3788

$2.34

92161

DAMPER

92161-3752

$5.64

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.89

156

BOLT-WP,6X10

156R0610

$2.80

156A

BOLT-WP,6X20

156R0620

$3.65

220

SCREW-PAN-CROS,4X20

220R0420

$2.41

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

410A

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
