Electrical Equipment(ABF-AEF)

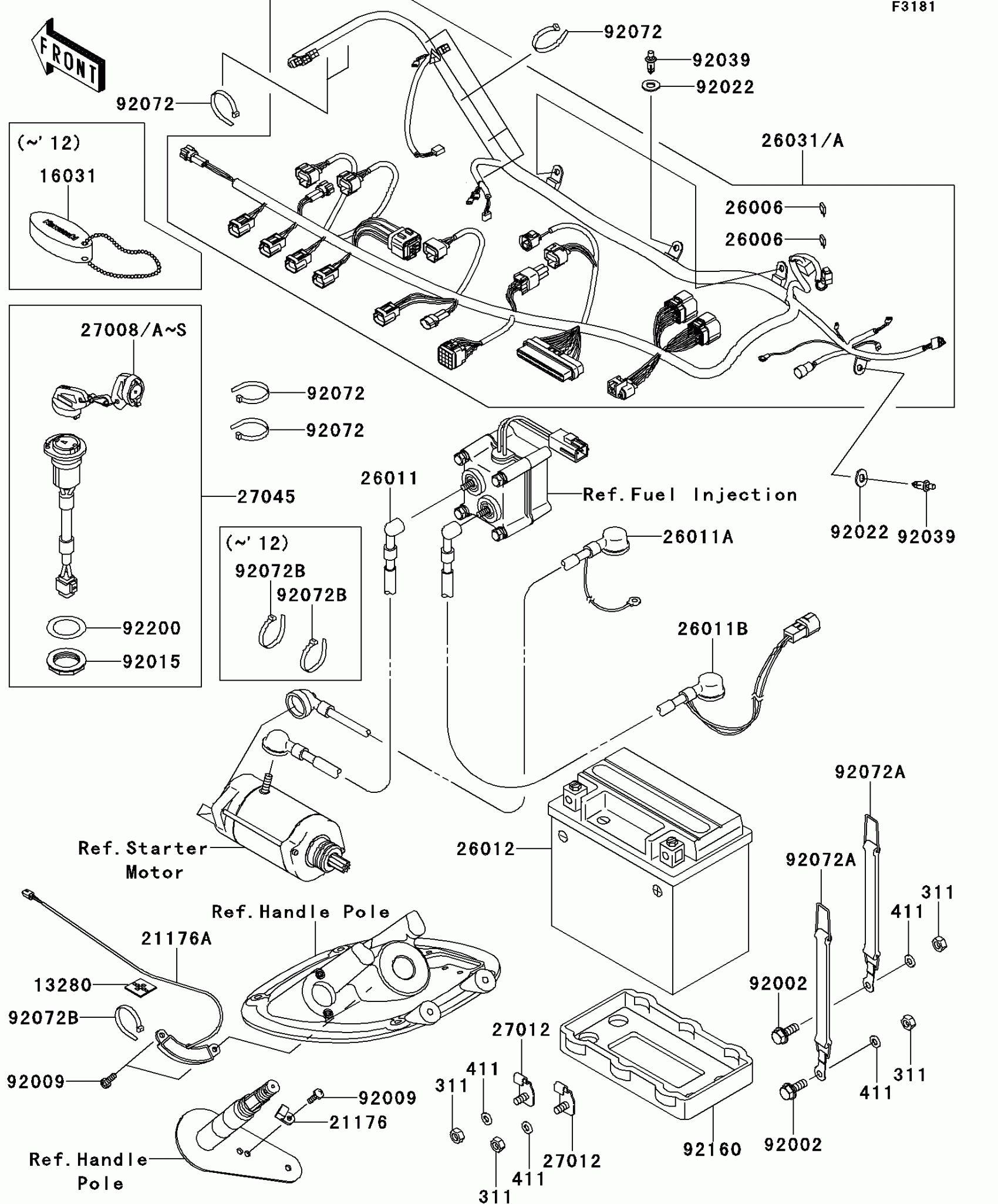

Kawasaki JET SKI® STX®-15F Electrical Equipment(ABF-AEF) Diagram
#
13280
HOLDER
13280-3757
$5.07
21176
SENSOR,MAGNET
21176-3746
$29.40
21176A
SENSOR,HOLE IC
21176-3748
$156.12
26006
FUSE,MINI BLADE,20A,YELLOW
26006-3704
$5.24
26011
WIRE-LEAD,RELAY-STARTER
26011-3899
$68.76
26011A
WIRE-LEAD,BATTERY(-)-STARTER
26011-3912
$111.70
26011B
WIRE-LEAD,BATTERY(+)-RELAY
26011-3926
$115.42
26012
BATTERY,YTX20L-BS,12V 18AH
26012-3730
Unavailable
26031
HARNESS,MAIN
26031-1363
Unavailable
27008
KEY,MAGNETIC SW,#3001
27008-3770
$53.44
27008A
KEY,MAGNETIC SW,#3002
27008-3771
Unavailable
27008B
KEY,MAGNETIC SW,#3003
27008-3772
Unavailable
27008C
KEY,MAGNETIC SW,#3004
27008-3773
Unavailable
27008D
KEY,MAGNETIC SW,#3005
27008-3774
Unavailable
27008E
KEY,MAGNETIC SW,#3006
27008-3775
Unavailable
27008F
KEY,MAGNETIC SW,#3007
27008-3776
Unavailable
27008G
KEY,MAGNETIC SW,#3008
27008-3777
Unavailable
27008H
KEY,MAGNETIC SW,#3009
27008-3778
Unavailable
27008I
KEY,MAGNETIC SW,#3010
27008-3779
Unavailable
27008J
KEY,MAGNETIC SW,#3011
27008-3780
Unavailable
27008K
KEY,MAGNETIC SW,#3012
27008-3781
Unavailable
27008L
KEY,MAGNETIC SW,#3013
27008-3782
Unavailable
27008M
KEY,MAGNETIC SW,#3014
27008-3783
Unavailable
27008N
KEY,MAGNETIC SW,#3015
27008-3784
Unavailable
27008O
KEY,MAGNETIC SW,#3016
27008-3785
Unavailable
27008P
KEY,MAGNETIC SW,#3017
27008-3786
Unavailable
27008Q
KEY,MAGNETIC SW,#3018
27008-3787
Unavailable
27008R
KEY,MAGNETIC SW,#3019
27008-3788
Unavailable
27008S
KEY,MAGNETIC SW,#3020
27008-3789
Unavailable
27012
HOOK
27012-3818
$7.75
27045
SWITCH-ASSY,MAIN
27045-3757
$211.69
92002
BOLT,6X16
92002-3728
$4.69
92009
SCREW,5X16
92009-3868
$1.54
92015
NUT
92015-3848
$5.52
92022
WASHER,8.2X18X1.5
92022-3743
$4.22
92039
RIVET
92039-1283
$2.80
92072
BAND,L=188.85
92072-0105
$1.73
92072A
BAND,WATER MUFFLER
92072-3781
$14.36
92072B
BAND,L=100.08
92072-3882
$2.02
92160
DAMPER
92160-3929
$31.19
92200
WASHER
92200-3736
$3.32
311
NUT-HEX,6MM
311R0600
$0.70
411
WASHER-PLAIN,6MM
411S0600
$2.06
