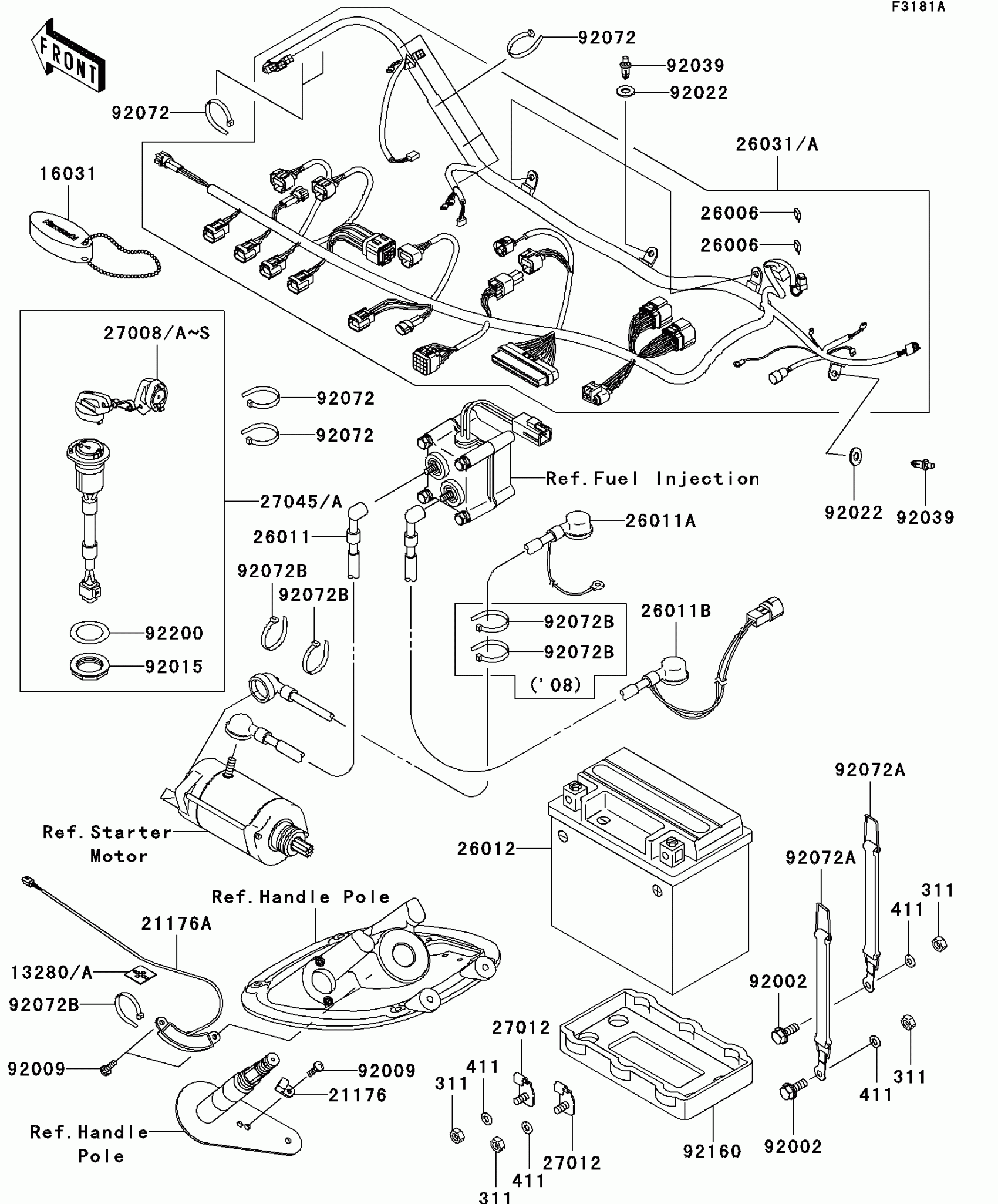

Kawasaki Jet Ski® STX-15F Electrical Equipment(A8F-AAF) Diagram

#

Description
Price

13280A

HOLDER

13280-3757

$5.07

16031

FLOAT,KEY

16031-3991

$10.32

21176

SENSOR,MAGNET

21176-3746

$29.40

21176A

SENSOR,HOLE IC

21176-3748

$156.12

26006

FUSE,MINI BLADE,20A,YELLOW

26006-3704

$5.24

26011

WIRE-LEAD,RELAY-STARTER

26011-3899

$68.76

26011A

WIRE-LEAD,BATTERY(-)-STARTER

26011-3912

$111.70

26011B

WIRE-LEAD,BATTERY(+)-RELAY

26011-3926

$115.42

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3730

Unavailable

26031A

HARNESS,MAIN

26031-3727

$626.48

27008

KEY,MAGNETIC SW,#3001

27008-3770

$53.44

27008A

KEY,MAGNETIC SW,#3002

27008-3771

Unavailable

27008B

KEY,MAGNETIC SW,#3003

27008-3772

Unavailable

27008C

KEY,MAGNETIC SW,#3004

27008-3773

Unavailable

27008D

KEY,MAGNETIC SW,#3005

27008-3774

Unavailable

27008E

KEY,MAGNETIC SW,#3006

27008-3775

Unavailable

27008F

KEY,MAGNETIC SW,#3007

27008-3776

Unavailable

27008G

KEY,MAGNETIC SW,#3008

27008-3777

Unavailable

27008H

KEY,MAGNETIC SW,#3009

27008-3778

Unavailable

27008I

KEY,MAGNETIC SW,#3010

27008-3779

Unavailable

27008J

KEY,MAGNETIC SW,#3011

27008-3780

Unavailable

27008K

KEY,MAGNETIC SW,#3012

27008-3781

Unavailable

27008L

KEY,MAGNETIC SW,#3013

27008-3782

Unavailable

27008M

KEY,MAGNETIC SW,#3014

27008-3783

Unavailable

27008N

KEY,MAGNETIC SW,#3015

27008-3784

Unavailable

27008O

KEY,MAGNETIC SW,#3016

27008-3785

Unavailable

27008P

KEY,MAGNETIC SW,#3017

27008-3786

Unavailable

27008Q

KEY,MAGNETIC SW,#3018

27008-3787

Unavailable

27008R

KEY,MAGNETIC SW,#3019

27008-3788

Unavailable

27008S

KEY,MAGNETIC SW,#3020

27008-3789

Unavailable

27012

HOOK

27012-3818

$7.75

27045A

SWITCH-ASSY,MAIN

27045-3757

$211.69

92002

BOLT,6X16

92002-3728

$4.69

92009

SCREW,5X16

92009-3868

$1.54

92015

NUT

92015-3848

$5.52

92022

WASHER,8.2X18X1.5

92022-3743

$4.22

92039

RIVET

92039-1283

$2.80

92072

BAND,L=188.85

92072-0105

$1.73

92072A

BAND,WATER MUFFLER

92072-3781

$14.36

92072B

BAND,L=100.08

92072-3882

$2.02

92160

DAMPER

92160-3929

$31.19

92200

WASHER

92200-3736

$3.32

311

NUT-HEX,6MM

311R0600

$0.70

411

WASHER-PLAIN,6MM

411S0600

$2.06
