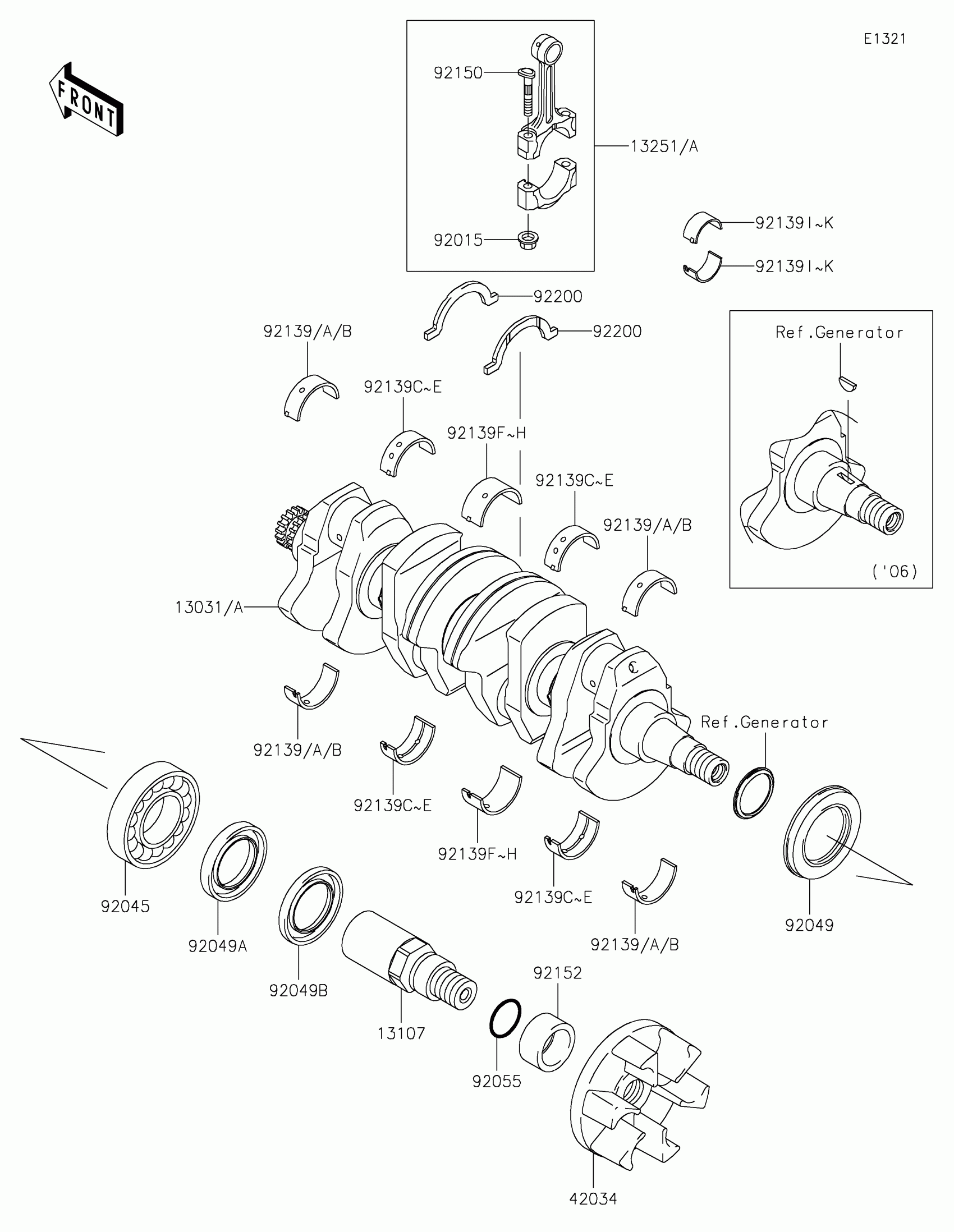

Kawasaki Jet Ski® STX-15F Crankshaft Diagram

#

Description
Price

13031A

CRANKSHAFT-COMP

13031-3742

$1,315.72

13107

SHAFT

13107-3785

$89.53

13251

ROD-ASSY-CONNECTING,I

13251-3702-II

$222.90

13251A

ROD-ASSY-CONNECTING,J

13251-3702-JJ

Unavailable

42034

COUPLING

42034-3711

$50.47

92015

NUT,CONNECTING ROD

92015-1559

$6.22

92045

BEARING-BALL,6208ZZ AS2S

92045-3739

$57.63

92049

SEAL-OIL,SD347626LHS

92049-3736

$23.99

92049A

SEAL-OIL,FPJ740628.5ZS

92049-3737

$25.76

92049B

SEAL-OIL,S40626NS

92049-3738

$14.71

92055

RING-O,27.7X2.4

92055-091

$6.22

92139

BUSH,CRANK,#1,BLU,NA MODEL

92139-0942

$10.82

92139A

BUSH,CRANK,#1,BLK,NA MODEL

92139-0943

Unavailable

92139B

BUSH,CRANK,#1,BRN,NA MODEL

92139-0944

Unavailable

92139C

BUSH,CRANK,#2,BLU,NA MODEL

92139-0945

$15.64

92139D

BUSH,CRANK,#2,BLK,NA MODEL

92139-0946

Unavailable

92139E

BUSH,CRANK,#2,BRN,NA MODEL

92139-0947

Unavailable

92139F

BUSH,CRANK,#3,BLU,NA MODEL

92139-0948

$12.28

92139G

BUSH,CRANK,#3,BLK,NA MODEL

92139-0949

Unavailable

92139H

BUSH,CRANK,#3,BRN,NA MODEL

92139-0950

Unavailable

92139I

BUSHING,CONNECTING ROD,BLUE

92139-3708

$26.96

92139J

BUSHING,CONNECTING ROD,BLACK

92139-3709

Unavailable

92139K

BUSHING,CONNECTING ROD,BROWN

92139-3710

Unavailable

92150

BOLT,CONNECTING ROD,9MM

92150-1362

$17.60

92152

COLLAR,OUTPUT RR,L=19.5

92152-3733

$36.66

92200

WASHER

92200-3789

$32.72
