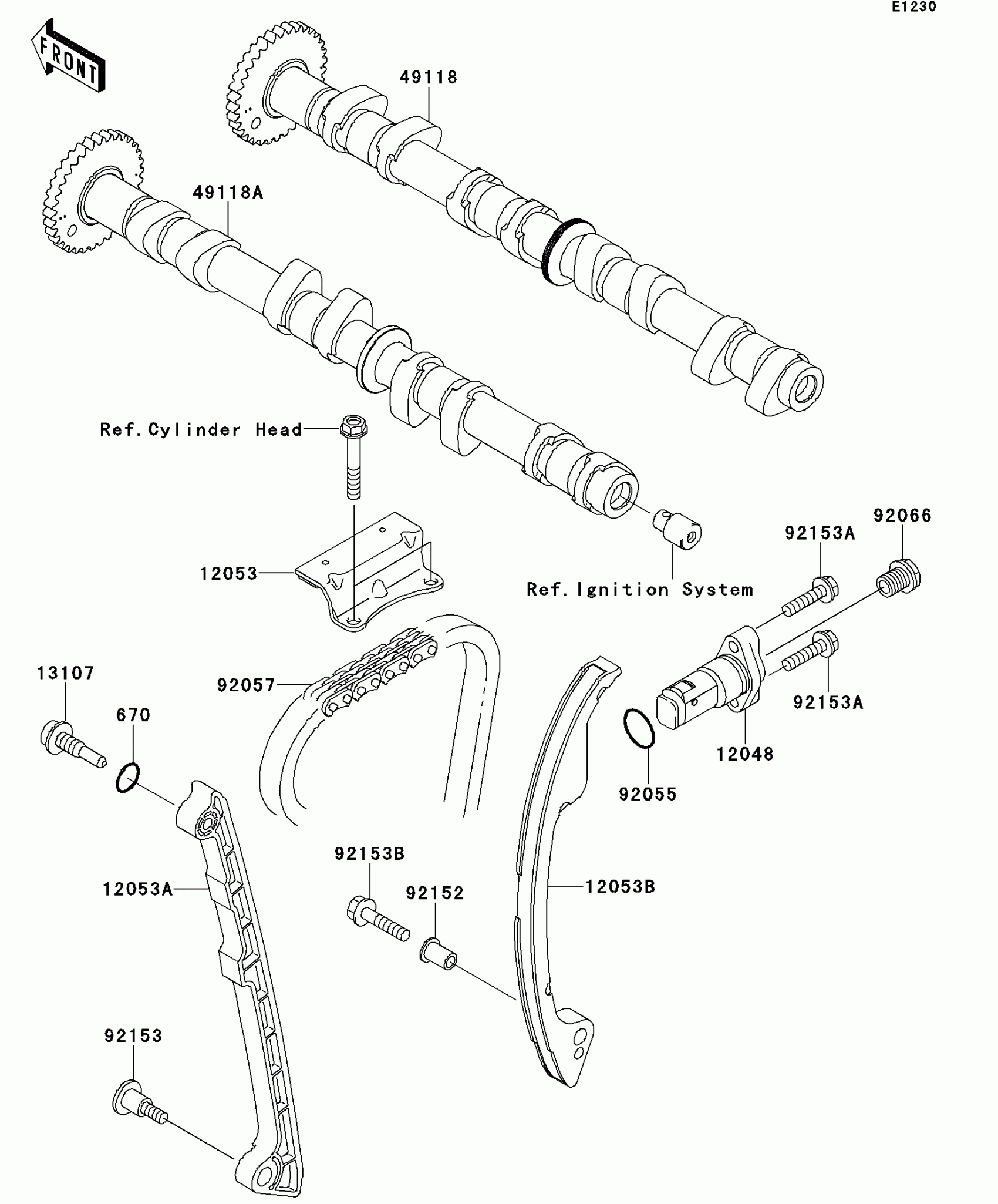

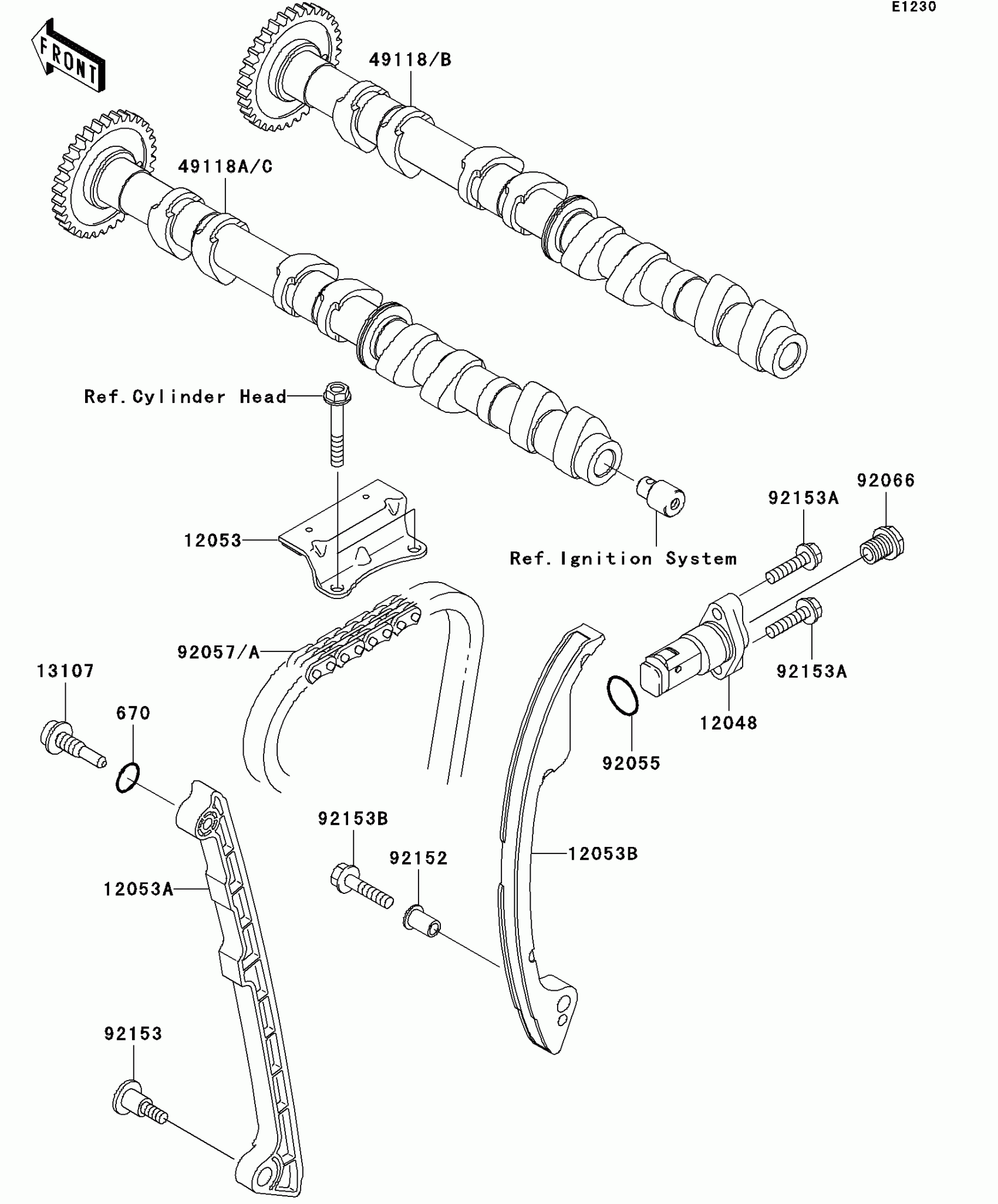

Kawasaki Jet Ski® STX-15F Camshaft(s)/Tensioner Diagram

Description

Price

12048

TENSIONER-ASSY

12048-3701

$128.86

12053

GUIDE-CHAIN,UPP

12053-1432

$37.49

12053A

GUIDE-CHAIN,EX SIDE

12053-3701

$35.65

12053B

GUIDE-CHAIN,IN SIDE

12053-3705

$48.75

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118B

CAMSHAFT-COMP,INTAKE

49118-3709

Unavailable

49118C

CAMSHAFT-COMP,EXHAUST

49118-3710

Unavailable

92055

RING-O,18.8X1.9

92055-086

$4.31

92057A

CHAIN,CAM,98XRH2015-136L

92057-3714

$106.42

92066

PLUG

92066-3780

$18.20

92152

COLLAR

92152-1167

$6.00

92153

BOLT,SOCKET,6X24.5

92153-1200

$11.59

92153A

BOLT,6X25

92153-3705

$5.79

92153B

BOLT,6X28

92153-3710

$6.18

670

O RING,9MM

670D1509

$4.69
