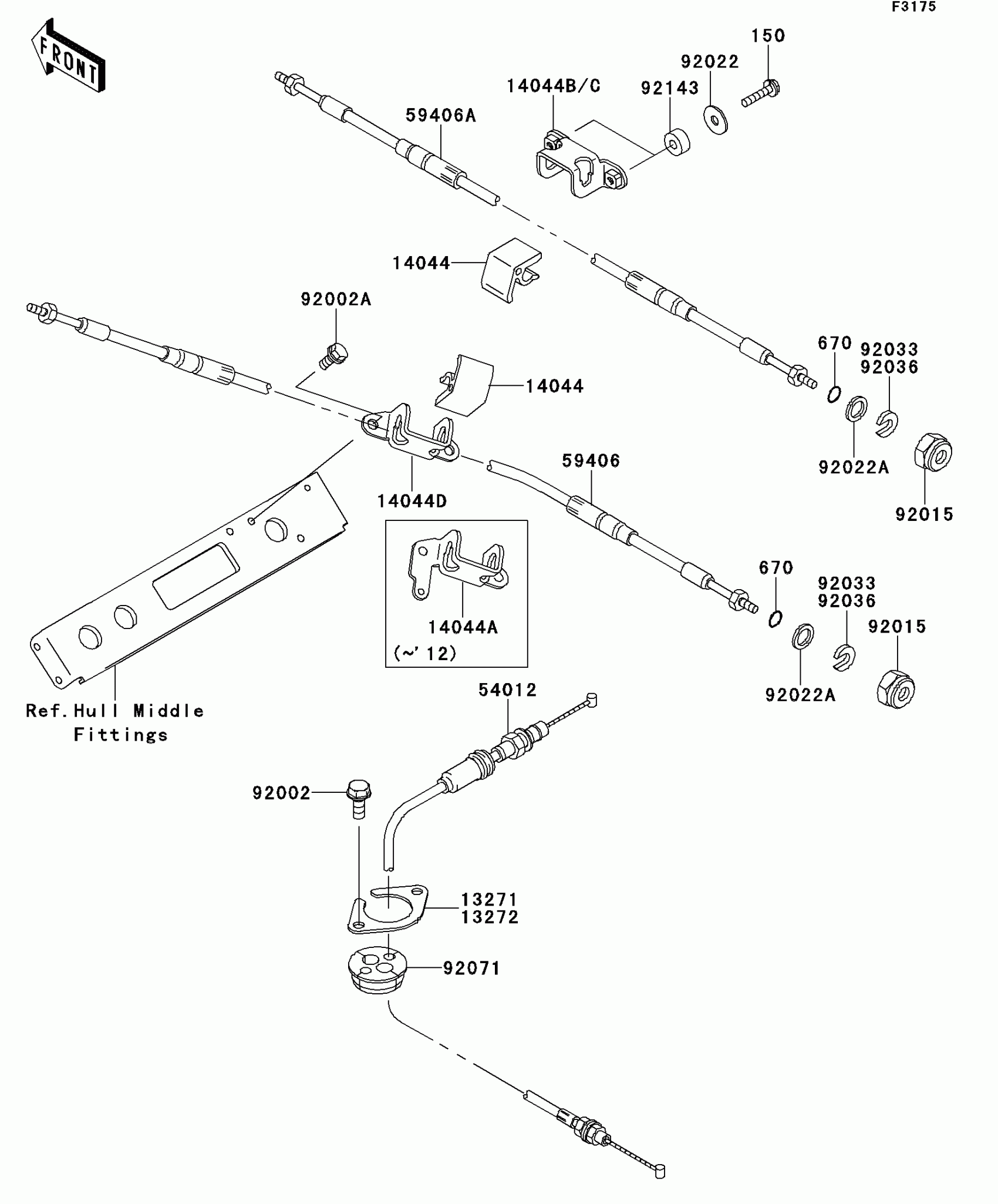

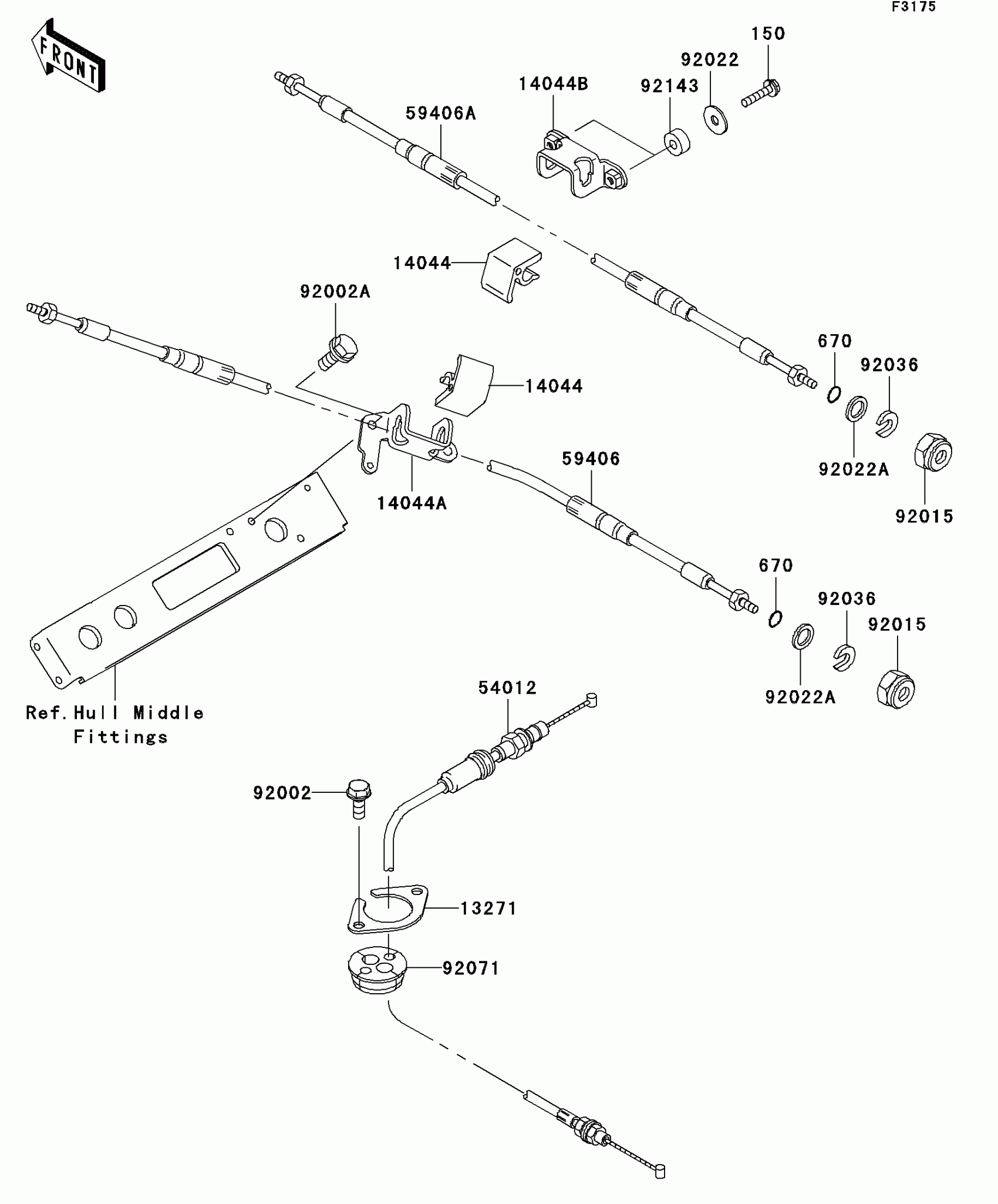

Kawasaki JET SKI® STX®-15F Cables Diagram

Description

Price

13272

PLATE

13272-3729

$14.32

14044

HOLDER-CABLE,STEERING

14044-3714

$13.40

14044C

HOLDER-CABLE,STEERING

14044-3771

$11.36

14044D

HOLDER-CABLE

14044-3772

$15.45

54012

CABLE-THROTTLE

54012-3771

$110.04

59406

CABLE-STRG

59406-3778

$137.71

59406A

CABLE-STRG,REVERSE

59406-3779

$217.12

92002

BOLT,6X16

92002-3728

$4.69

92002A

BOLT,6X20

92002-3755

$4.69

92015

NUT,20MM

92015-526

$29.72

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92022A

WASHER

92022-535

$7.34

92033

RING-SNAP,7.7X17.5X3.0

92033-3737

$6.89

92071

GROMMET,HARNESS

92071-3790

$9.64

92143

COLLAR,6.2X16X7.5

92143-3769

$6.63

150

BOLT-WS,6X25

150R0625

$4.34

670

O RING,11MM

670B2011

$1.28
