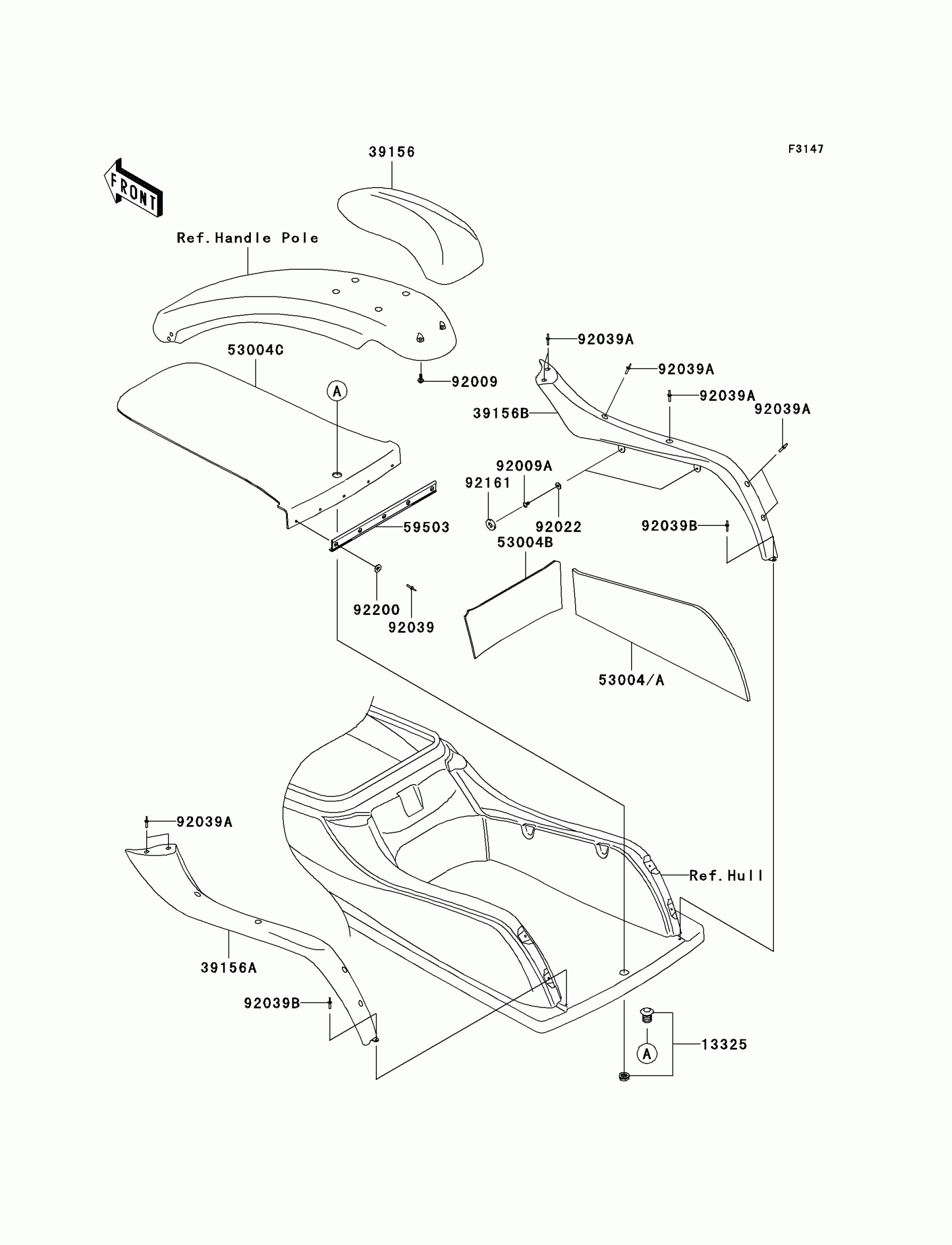

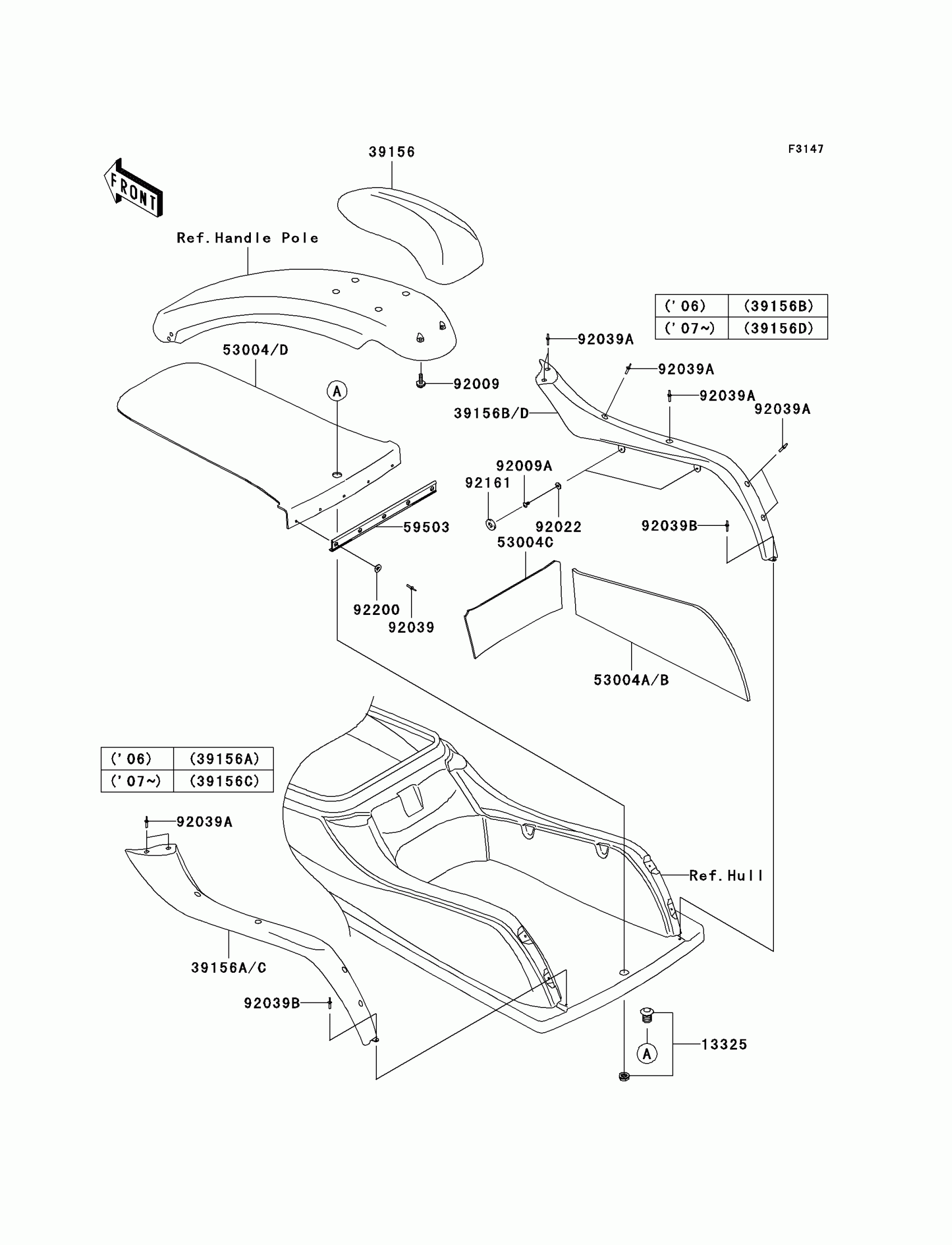

Kawasaki Jet Ski® 800 SX-R Pads Diagram

Description

Price

13325

BUSHING-ASSY,BLACK

13325-3705

$5.68

39156

PAD,HANDLE POLE,UPP,BLACK

39156-3787-MA

$345.07

39156C

PAD,DECK FIN,LH,BLACK

39156-3847-MA

$390.36

39156D

PAD,DECK FIN,RH,BLACK

39156-3848-MA

$410.91

53004A

MAT,DECK,LH

53004-3877

$134.96

53004B

MAT,DECK,RH

53004-3878

$134.96

53004C

MAT,DECK,CNT

53004-3879

$47.85

53004D

MAT,DECK

53004-3925

Unavailable

59503

FENDER-BOAT,F.BLACK

59503-3708-6Z

Unavailable

92009

SCREW,TAPPING,5X20

92009-3716

$2.76

92009A

SCREW,6X16

92009-3771

$3.55

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92039

RIVET

92039-3778

$0.79

92039A

RIVET

92039-3780

$3.49

92039B

RIVET

92039-3781

$3.90

92161

DAMPER

92161-3747

$3.52

92200

WASHER

92200-3790

$3.89
