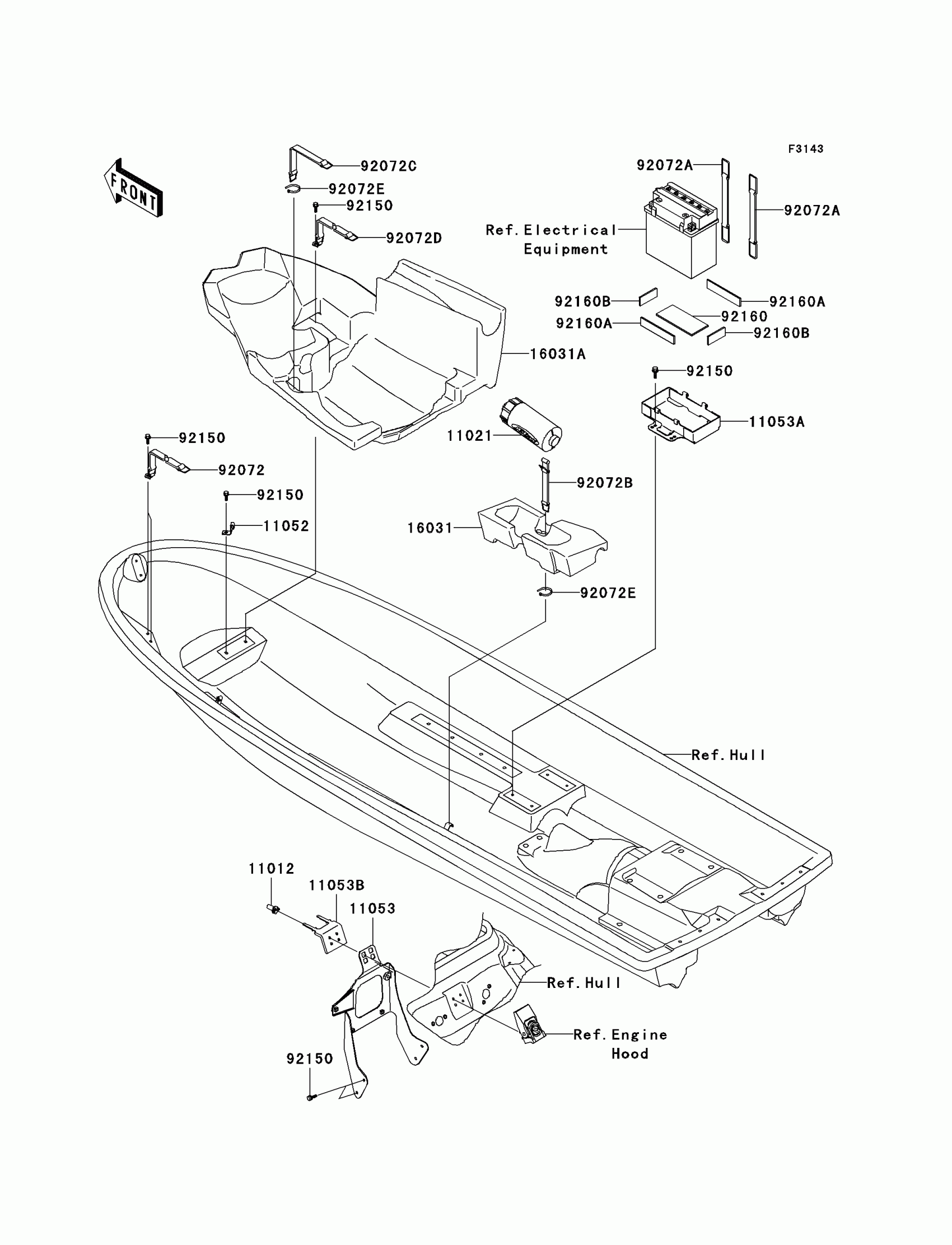

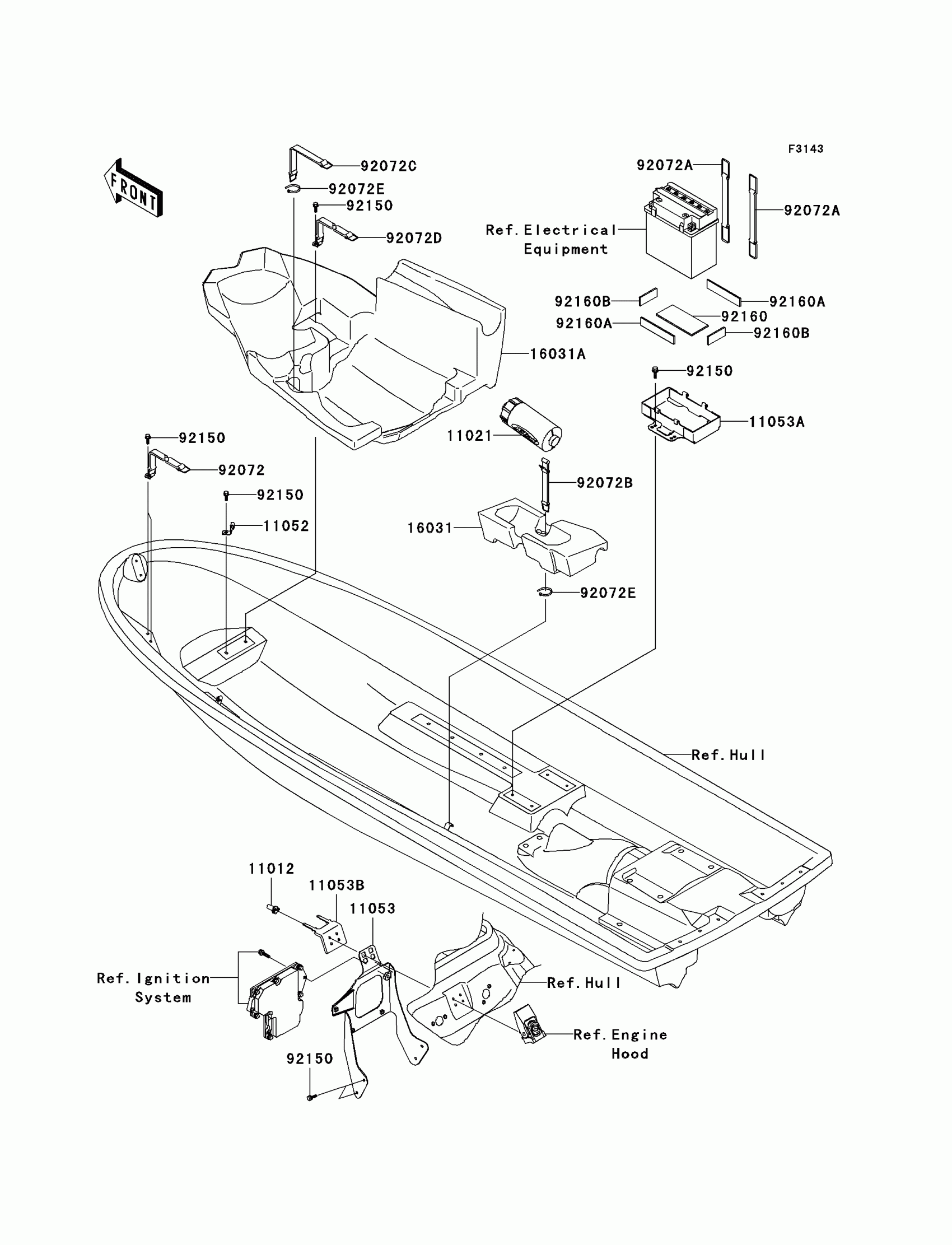

Kawasaki Jet Ski® 800 SX-R Hull Fittings Diagram

Description

Price

11012

CAP,HOLDER

11012-3768

$7.41

11021

CASE-ASSY,TOOL

11021-3706

$100.50

11052

BRACKET

11052-3773

$9.90

11053

BRACKET

11053-3702

$161.58

11053A

BRACKET,BATTERY

11053-3727

$135.00

11053B

BRACKET

11053-3747

$15.86

16031

FLOAT

16031-3941

Unavailable

16031A

FLOAT,FUEL TANK

16031-3985

Unavailable

92072

BAND,OIL TANK

92072-3812

$42.94

92072A

BAND,BATTERY

92072-3841

$35.95

92072B

BAND,TOOL CASE

92072-3859

$14.10

92072C

BAND,FUEL TANK,LH

92072-3864

$36.58

92072D

BAND,FUEL TANK,RH

92072-3865

$36.58

92072E

BAND,L=100.08

92072-3882

$1.71

92150

BOLT,6X20

92150-3758

$4.51

92160

DAMPER

92160-1851

$6.54

92160A

DAMPER

92160-3840

$5.36

92160B

DAMPER,WATER MUFFLER

92160-3880

$5.36
