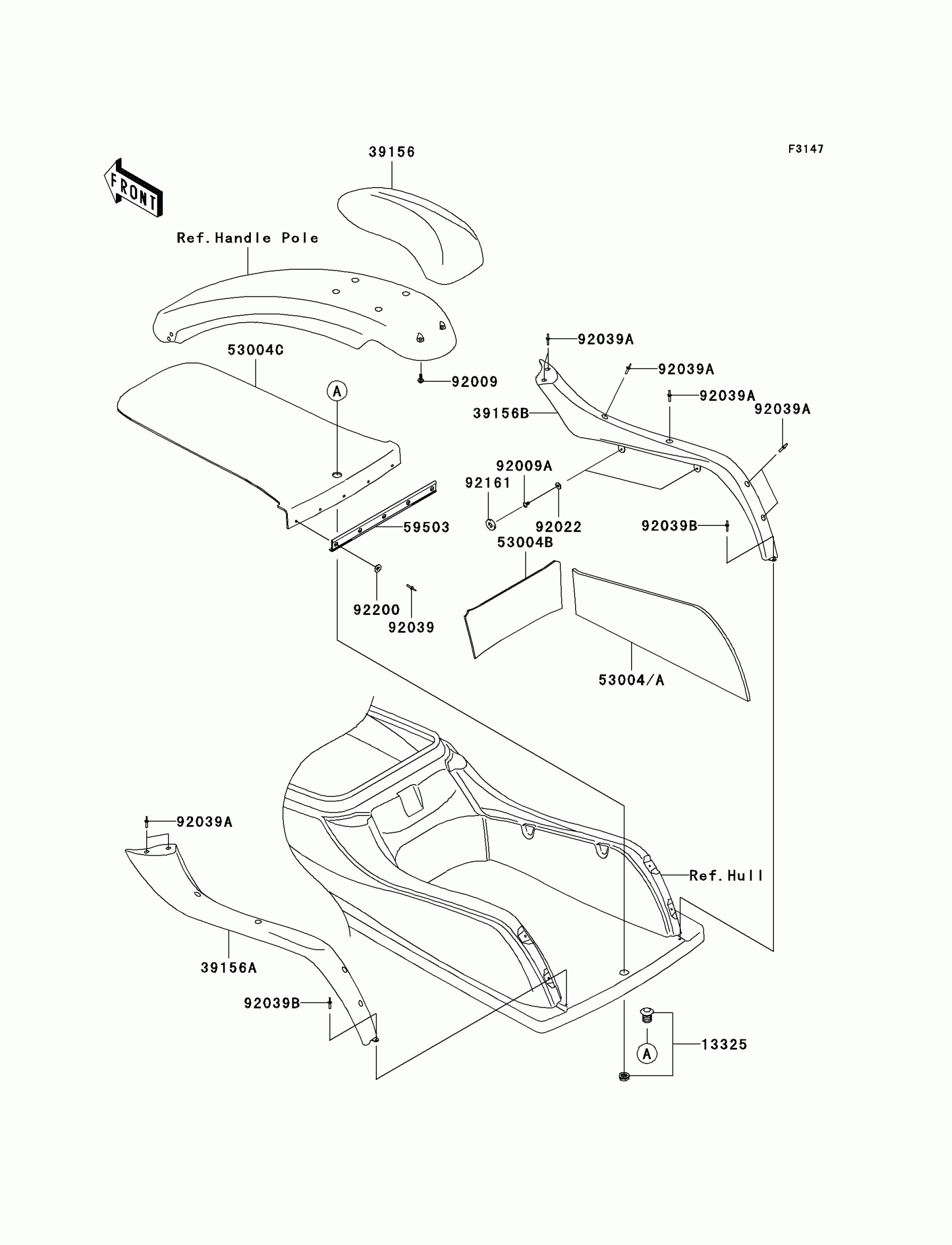

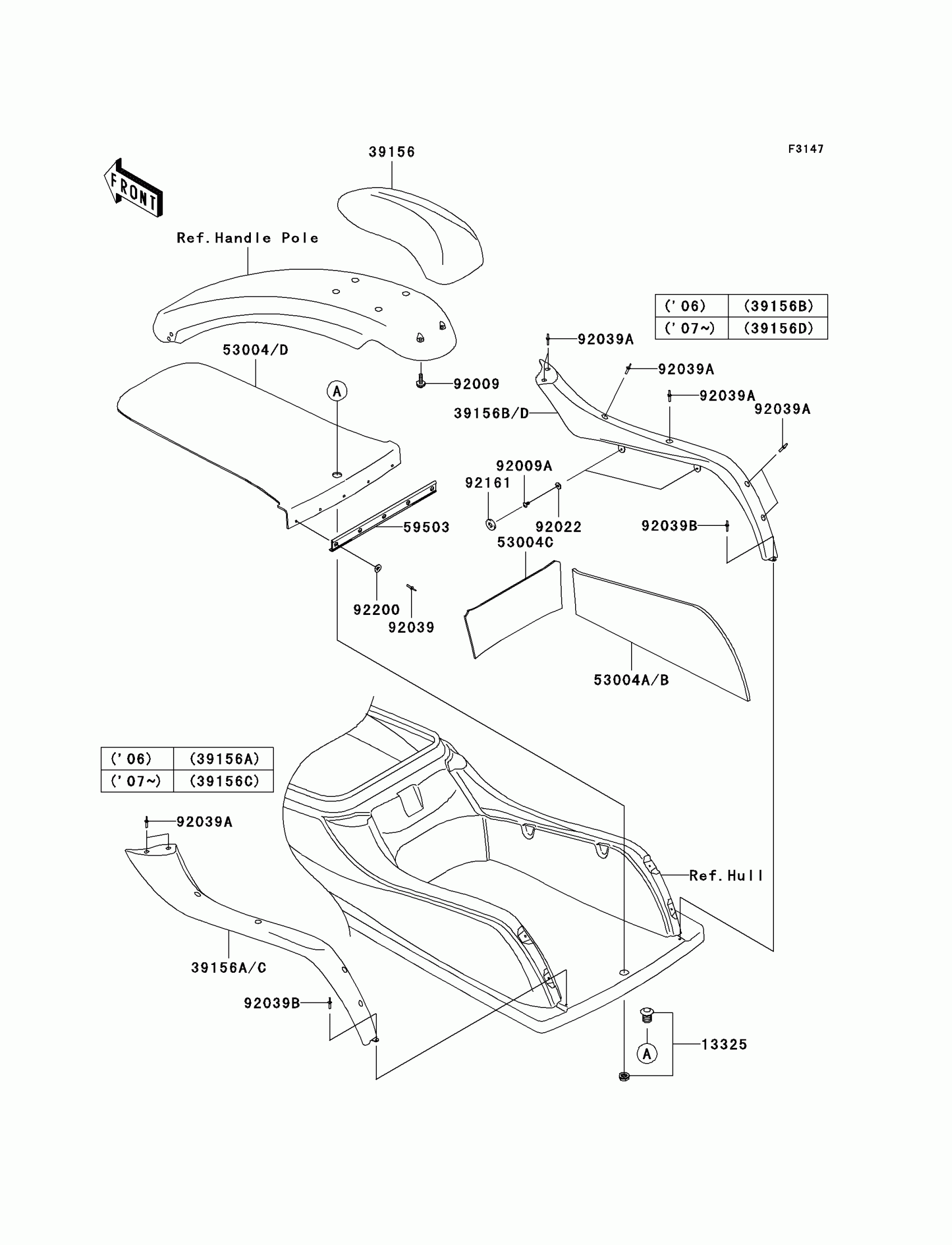

Kawasaki JET SKI® 800 SX-R™ Pads Diagram

Description

Price

13325

BUSHING-ASSY,BLACK

13325-3705

$7.45

39156

PAD,HANDLE POLE,UPP,BLACK

39156-3787-MA

$329.22

39156A

PAD,DECK FIN,LH,BLACK

39156-3847-MA

$391.88

39156B

PAD,DECK FIN,RH,BLACK

39156-3848-MA

$391.88

53004

MAT,DECK,LH

53004-3877

$128.73

53004A

MAT,DECK,RH

53004-3878

$128.73

53004B

MAT,DECK,CNT

53004-3879

$52.87

53004C

MAT,DECK

53004-3925

Unavailable

59503

FENDER-BOAT,F.BLACK

59503-3708-6Z

$68.88

92009

SCREW,TAPPING,5X20

92009-3716

$3.65

92009A

SCREW,6X16

92009-3771

$4.45

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92039

RIVET

92039-3778

$0.95

92039A

RIVET

92039-3780

$4.45

92039B

RIVET

92039-3794

$7.71

92161

DAMPER

92161-3747

$5.12

92200

WASHER

92200-3790

$5.11
